SECTION 5
SETTINGS & PROGRAMMING

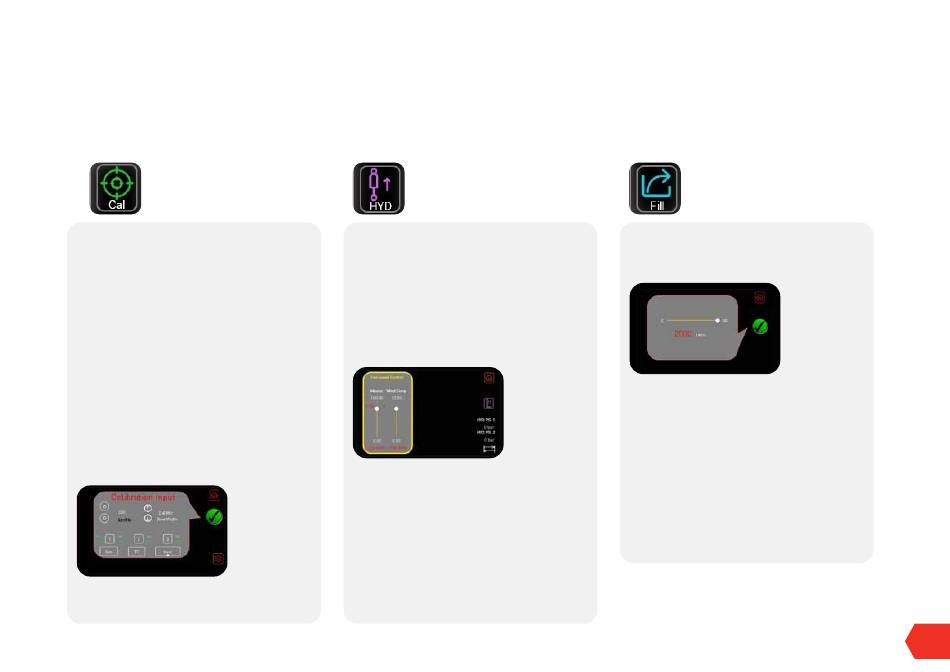

1. To set basic spray job settings.

CAL
A. Press the (Sprayer setting) MENU.
B. Press INC or DEC arrows to set the desired
application rate in Litre / hectare. If preference is for
litre / 100 metre please refer page x for detailed
instructions.
INC or DEC
C. Press to set the desired row width.
(This is displayed in metres to 1 decimal point)
D. Press T1 to set the desired spray tier.
Tier 1 will spray only the inner ring nozzles
(early season rates).
Tier 2 will spray only the outer ring nozzles
(mid-season rates).
Tier 3 will spray both rings / all nozzles
(full canopy rates).
By pressing the Green tick button your settings will be
saved and will be displayed on the main Spray screen.
To set up the 3 x Spray job pre-sets refer
"Programming - Additional Settings" on page 24 ~ 26.

2. Select Quantum Mist fan speed.

A. Press HYD (Hydraulic setting menu).
B. Press Master fan speed control
C. Set the Master fan speed control to the desired speed.
D. Set the Wind Comp Offset to the same speed.
E. The fans on both the Right & Left side of the sprayer
will operate at the same speed.
When Windcomp is required set the master fan speed
to the speed you want the fans going into the wind to be
doing and set the Windcomp to the fan speed you want
the fan going with the wind to be doing

3. Set the Spray tank volume.

A. Press FILL (Tank volume reset).
B. Use the slider bar to confirm the spray tank volume.
With these basic settings confirmed the operator
can now commence spraying in AUTO mode.
