SECTION 4
PRODUCT FEATURES/FAMILIARISATION

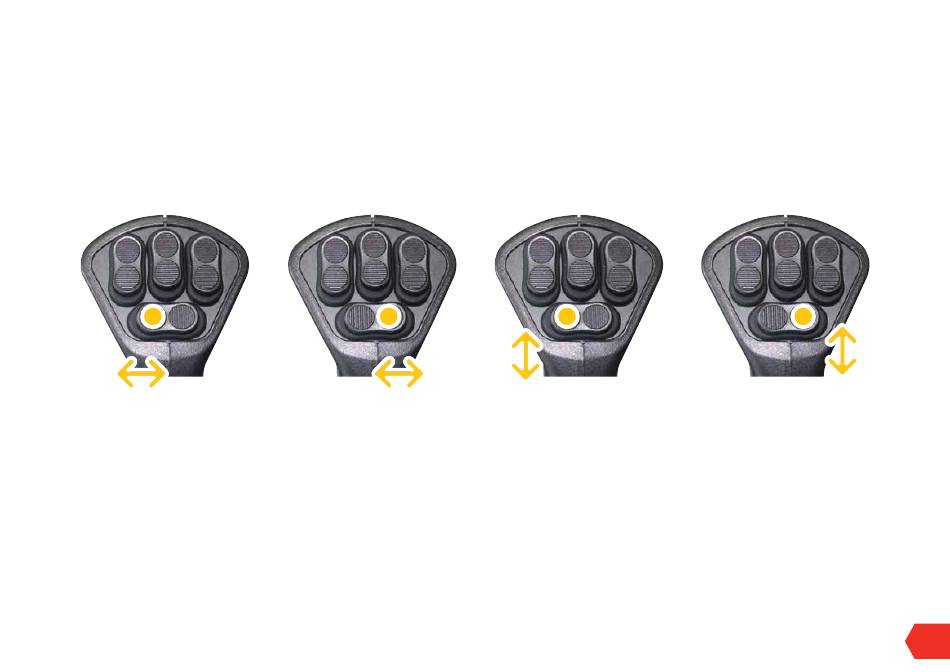

Left Boom Arm
Press and hold SW7 on the joy stick.
By moving the joystick to the X Axis Left
position, the left boom arm will fold in.
By moving the joystick to the X Axis Right
position the left boom arm will fold out.
Right Boom Arm
Press and hold SW8 on the joy stick.
By moving the joystick to the X Axis Left
position the right boom arm will fold in.
By moving the joystick to the X Axis Right
position the right boom arm will fold out.
Left Terracing
Press and hold SW7 on the joy stick. By
moving the joystick to the Y Axis Forward
position the left boom arm will lift. By
moving the joystick to the Y Axis Reverse
position, the left boom arm will go down.
Right Terracing
Press and hold SW8 on the joy stick. By
moving the joystick to the Y Axis Forward
position the right boom arm will lift. By
moving the joystick to the Y Axis Reverse
position, the right boom arm will go down.
