Croplands QUANTUM FUSION Operator's Manual page 16

SECTION 4
PRODUCT FEATURES/FAMILIARISATION
Fusion Fan Operation
Activating Fans
Enter the "Hydraulic" tab on the right side of the main
screen. Set "Master" to 100 and "Wind Comp" to 0.

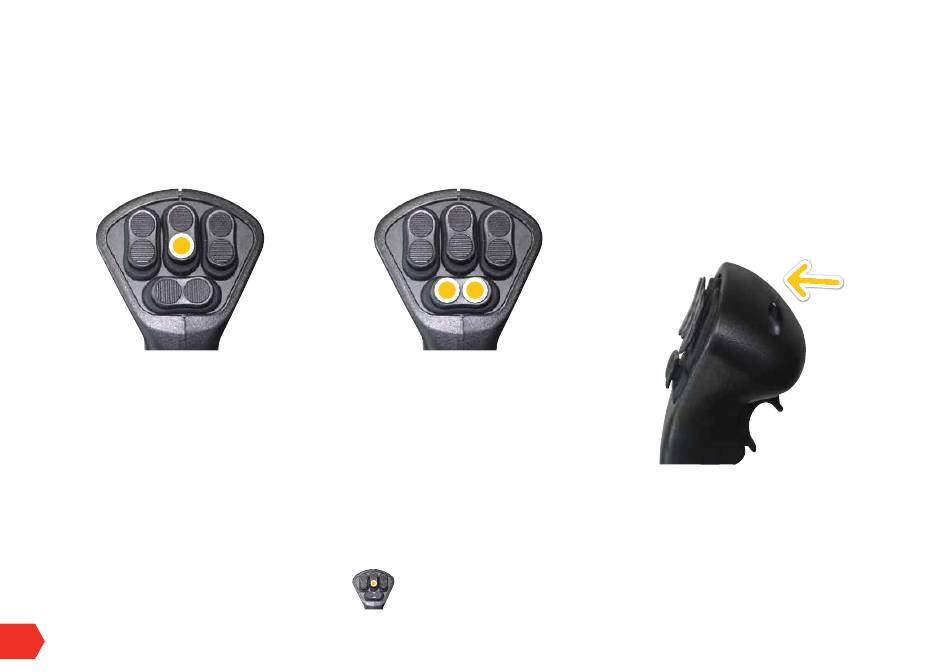

Activate the fans by pressing SW6 on the joystick. The left
and right fan rpms will appear under the Master and Wind
Comp sliders. While the PTO speed is low one of the fan
rpms will read around 2500 and the other will be lower.
Gradually increase the PTO speed and the lower rpm
reading will even up, at this point you now know the
lowest PTO rpm you can run this system at to achieve
2500 fan rpm. It is recommended though that you run
at least 500 PTO rpm to ensure sufficient hydraulic flow.
See page 42 re confirming fan functionality.
Changing Fan Speeds
By moving the "Master" slider up or down both fan rpms
will increase or decrease and will stay even when the wind
comp is set to 0.
16
HT-OMFUSION-A
WindComp (see more re WindComp on pages 1 1 & 24
On the home spray screen you will notice there is an arrow
pointing left or right. This arrow indicates which facing
fans are blowing into the wind and will have a higher fan
rpm if wind comp is activated. This arrow is changed by
double tapping SW7 or SW8. For example, if the arrow
is pointing left you will double tap SW8 to change to the
right and then double tap SW7 to change back to the left.
Enter the "Hydraulic" tab on the home screen. With the
Master slider set to 100, increase the Wind Comp slider.
As you increase the Wind Comp slider you will notice the
fan rpm going with the wind starts to drop off. You can then
double tap the appropriate SW7 or SW8 and these fan
rpms will flip.
If the Master is set to anything below 100
when the Wind Comp slider is increased the
sprayer fans blowing into the wind will increase and the
sprayer fans blowing with the wind will decrease.
To deactivate Wind Comp set the slider to 0. The arrow
indicating which fans are going into the wind will still be
present on the home screen but no change in fan speed
will occur if SW7 or SW8 are double tapped.
To turn off the fans press SW6
Spraying
Selecting Tiers – From the "Spray" screen press on
"Calibration". The bottom right section of the screen will
have a box displaying which tier is currently selected. This
can be pressed to select Tier 1, Tier 2 or Tier 3. On the
spray screen there will be T1, T2 or T3 shown above the
tank to indicate which tier is selected.
