SECTION 3
PRODUCT IDENTIFICATION & INSTALLATION
NOTE; Actual use and location of connections can vary
from sprayer model to model. Refer to the sprayer manual
for specific information.
Some examples of connections are;

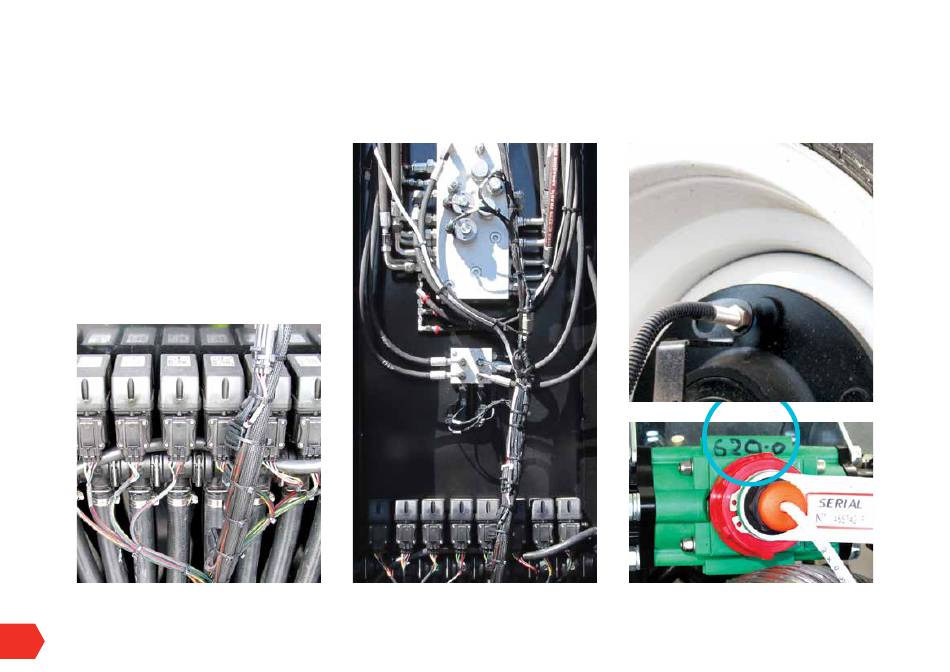

Shown below are connections to 8 spray section valves.
Refer to Section 4 re the 3 tiered spraying function.
Shown in the middle column is connection to the main
hydraulic block of a QM Smart Spray unit. Refer to Section
4 re the WindComp function.
Shown to the right are wheel speed sensor and flow meter.
