Programming

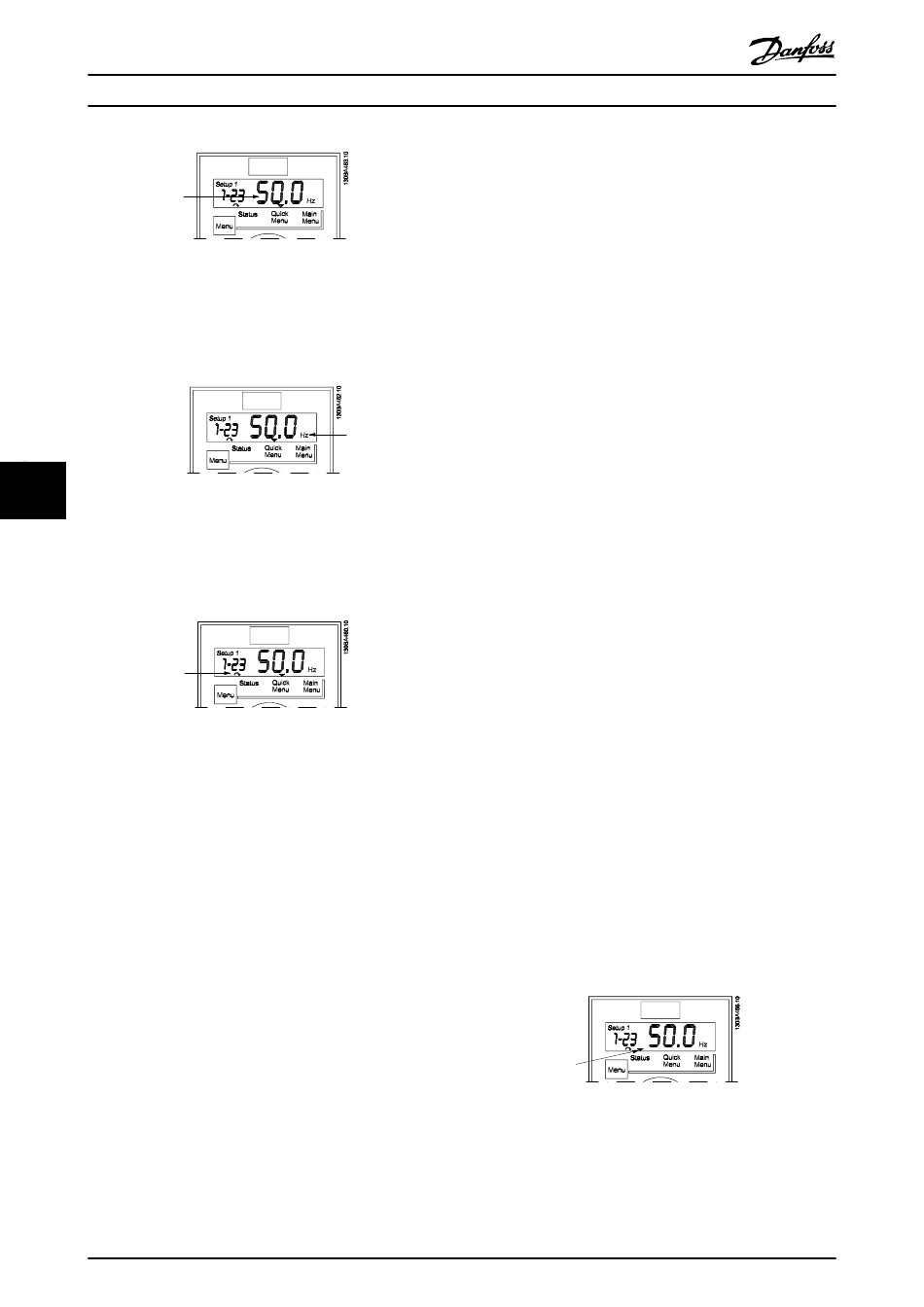

Illustration 7.5 Indicating Value of Selected Parameter.
The right side of the display shows the unit of the selected
parameter. This can be either Hz, A, V, kW, HP, %, s or
RPM.
7 7
Illustration 7.6 Indicating Unit of Selected Parameter.
Motor direction is shown to the bottom left of the display
- indicated by a small arrow pointing either clockwise or
counterclockwise.
Illustration 7.7 Indicating Motor Direction
Use the [MENU] key to select one of the following menus

Status Menu:

The Status Menu is either in Readout Mode or Hand on
Mode. In Readout Mode the value of the currently selected
readout parameter is shown in the display.
In Hand on Mode the local LCP reference is displayed.
Quick Menu:
Displays Quick Menu parameters and their settings.
Parameters in the Quick Menu can be accessed and edited
from here. Most applications can be run by setting the
parameters in the Quick Menus.
Main Menu:
Displays Main Menu parameters and their settings. All
parameters can be accessed and edited here.
64
VLT Micro Drive Design Guide
Indicator lights:
•
•
•
Navigation Keys:
[Back]: For moving to the previous step or layer in the
navigation structure.
Arrows [
groups, parameters and within parameters.
[OK]: For selecting a parameter and for accepting changes
to parameter settings.
Operation Keys:
A yellow light above the operation keys indicates the
active key.
[Hand on]: Starts the motor and enables control of the
frequency converter via the LCP.
[Off/Reset]: The motor stops except in alarm mode. In that
case the motor will be reset.
[Auto on]: The frequency converter is controlled either via
control terminals or serial communication.
[Potentiometer] (LCP12): The potentiometer works in two
ways depending on the mode in which the frequency
converter is running.
In Auto Mode the potentiometer acts as an extra
programmable analog input.
In Hand on Mode the potentiometer controls local
reference.
7.2 Status Menu
After power up the Status Menu is active. Press the [Menu]
key to toggle between Status, Quick Menu and Main
Menu.
Arrows [
menu.
The display indicates the status mode with a small arrow
above "Status".
Illustration 7.8 Indicating Status Mode
®
MG02K102 - VLT is a registered Danfoss trademark
Green LED: The frequency converter is on.
Yellow LED: Indicates a warning. Please see
section Troubleshooting
Flashing red LED: Indicates an alarm. Please see
section Troubleshooting
▲ ▼
] [ ]: For maneuvering between parameter
▲ ▼
] and [ ] toggles between the choices in each
