VLT Micro Drive Selection
Use the [MENU] key to select one of the following menus:
Status:
For readouts only.
Quick Menu:
For access to Quick Menus 1 and 2, respectively.
Main Menu:
For access to all parameters.
Navigation Keys:
[Back]: For moving to the previous step or layer in the
navigation structure.
Arrows [
] [
]: For maneuvering between parameter
groups, parameters and within parameters.
[OK]: For selecting a parameter and for accepting changes
to parameter settings.
Operation Keys:
A yellow light above the operation keys indicates the
active key.
[Hand on]: Starts the motor and enables control of the
frequency converter via the LCP.
[Off/Reset]: Stops the motor (off). If in alarm mode the
alarm will be reset.
[Auto on]: The frequency converter is controlled either via
control terminals or serial communication.
[Potentiometer] (LCP12): The potentiometer works in two
ways depending on the mode in which the frequency
converter is running.
In Auto Mode the potentiometer acts as an extra
programmable analog input.
In Hand on Mode the potentiometer controls local
reference.
The LCP can be moved to the front of a cabinet by using
the remote build-in kit. The enclosure is the IP55.
Technical data
Enclosure:
Max. cable length between and unit:
Communication std:
Ordering no.
VLT Micro Drive Design Guide

4.1.2 FC 51 LCP Mounting Instruction

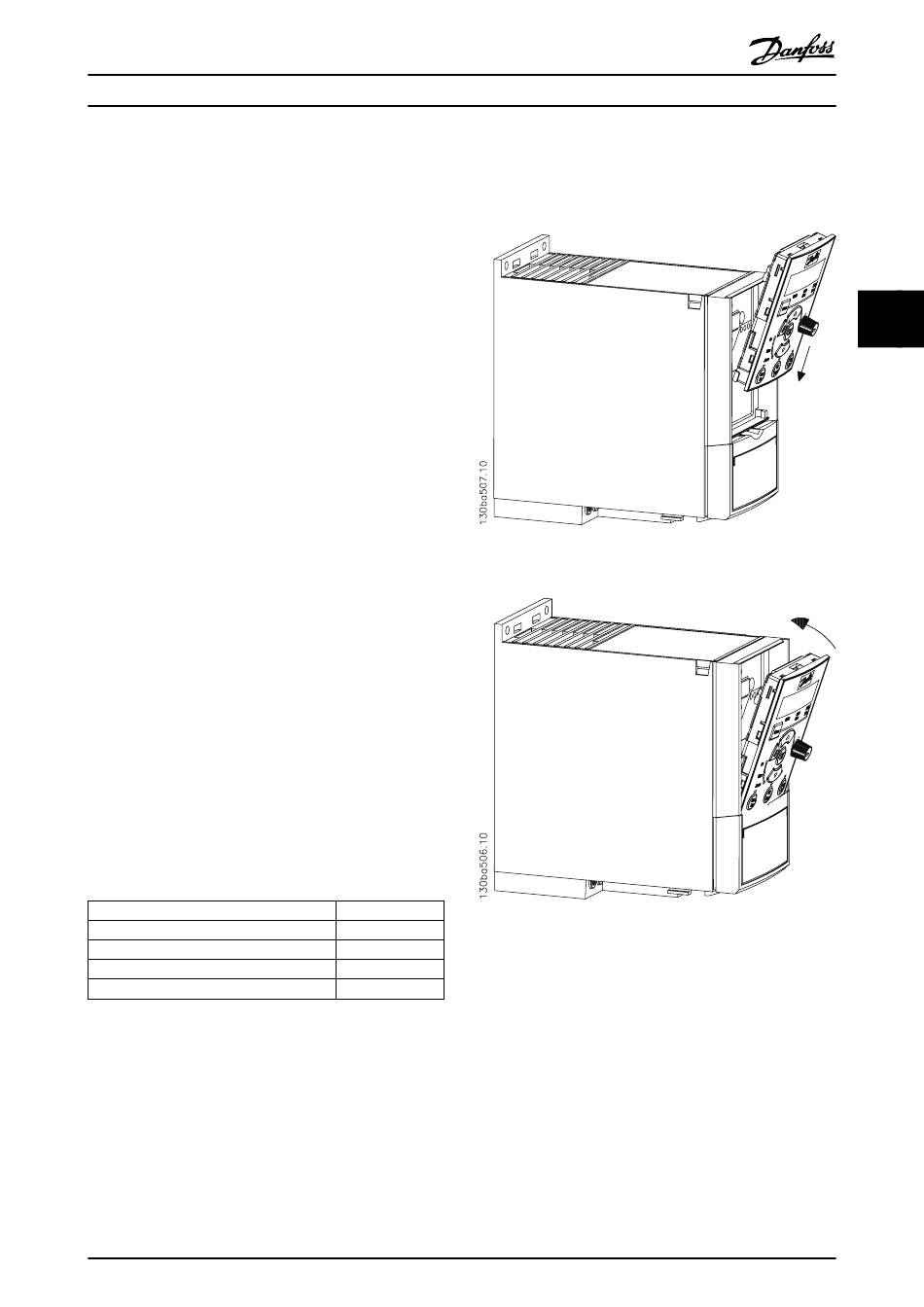

Step 1
Place the bottom of the LCP in the frequency converter.
Step 2
Push the top of the LCP into the frequency converter.
IP55 front
3m
RS485
132B0201
®
MG02K102 - VLT
