4.1.7 FC 51 Type 1 Kit Mounting Instruction for M1, M2 and M3

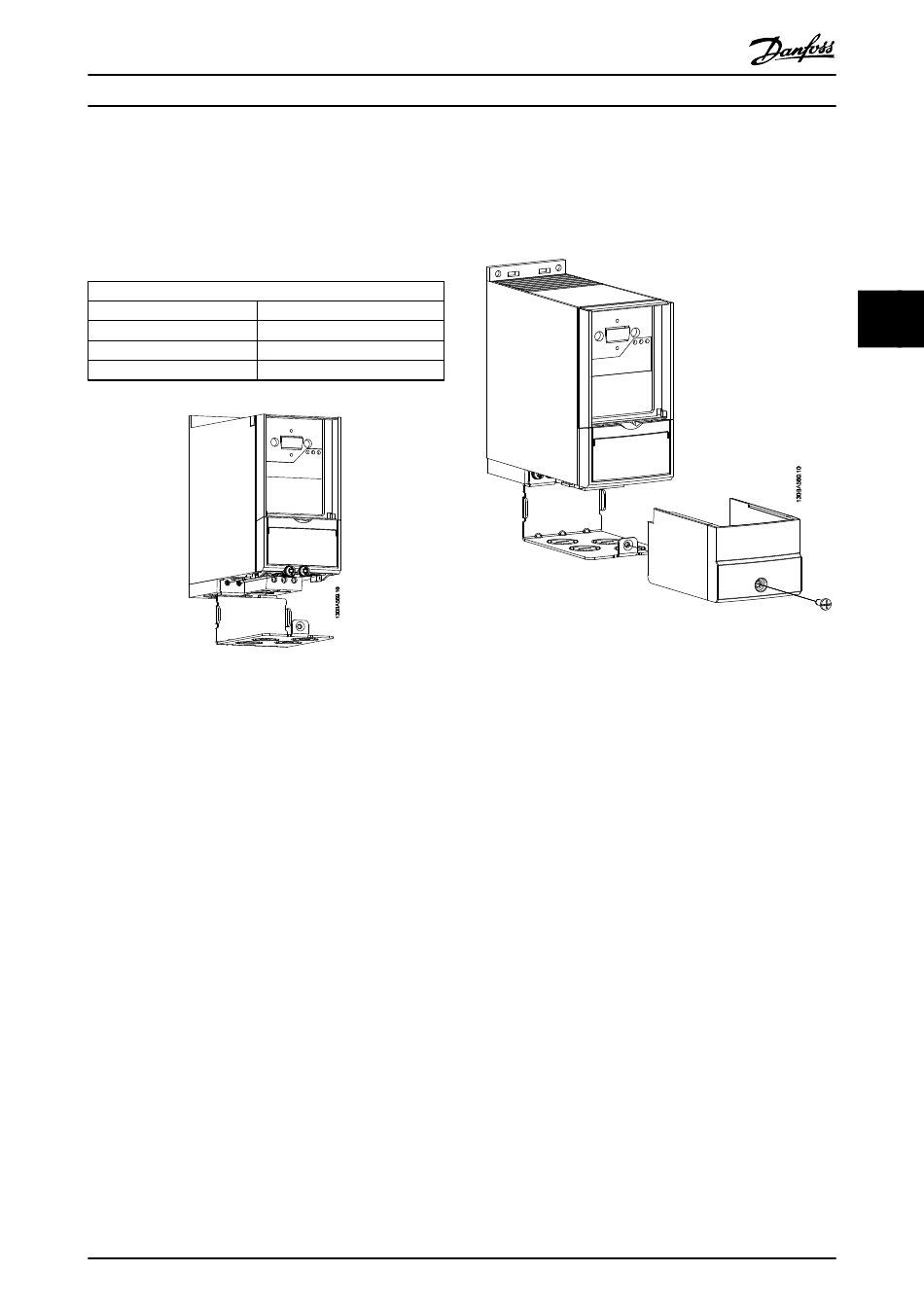

Step 1
Mount metal plate on frequency converter and tighten the
screws. Tightening torque: 2 Nm.
Conduit sizes
M1
4 x ½"
M2
5 x ½ "
M3
2 x ½"
3 x 3/4"
VLT Micro Drive Design Guide
Step 2
Fit bottom cover on frequency converter and tighten
screw.
®
MG02K102 - VLT
is a registered Danfoss trademark
4
4
31
