Table 6.10. RS-485 Network Connection.
56

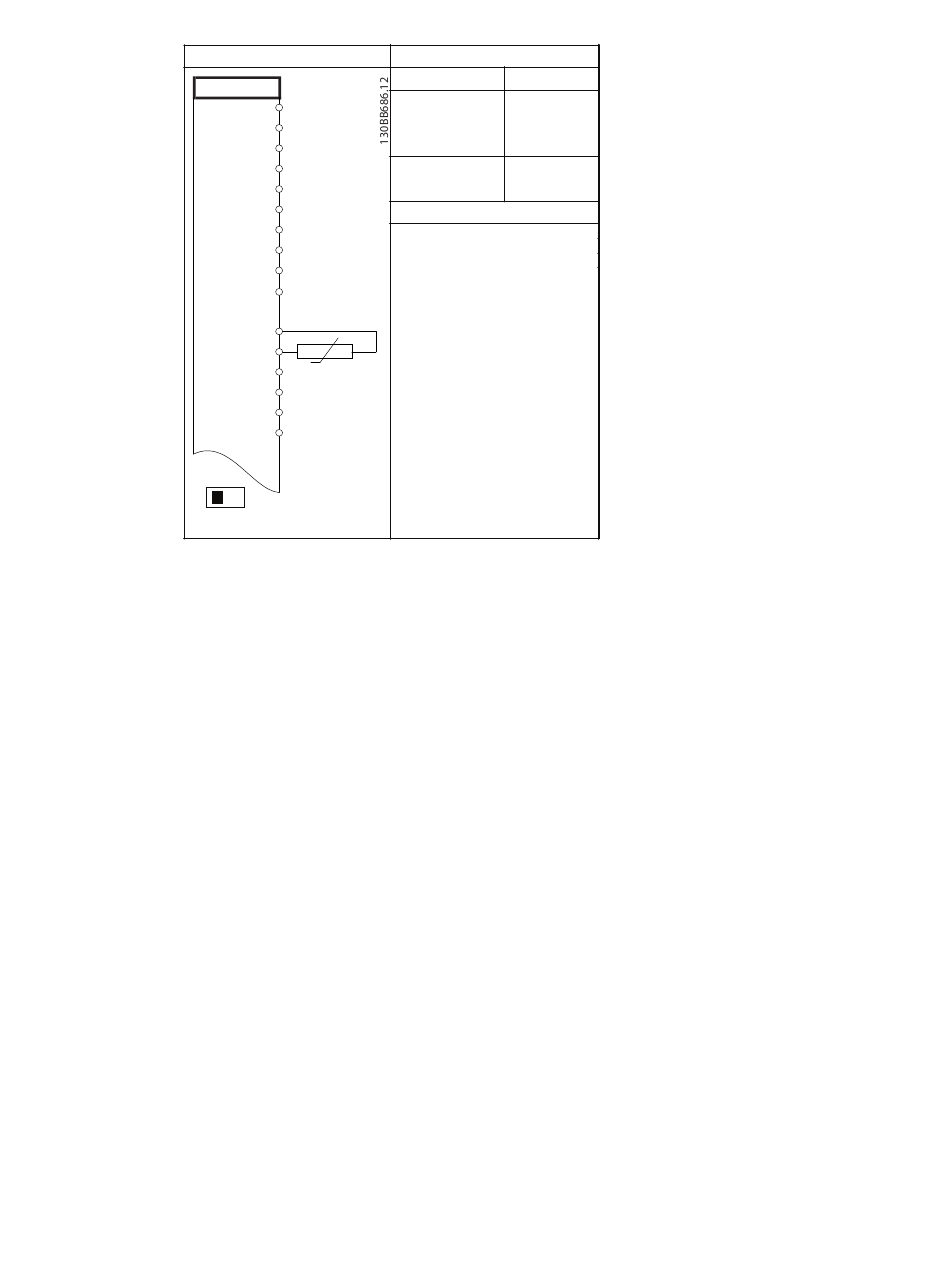

FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
U - I
A53
Parameters
Function Setting
1-90 Motor [2]
Thermal Thermistor
Protection trip
1-93 Thermistor [1] Analog
Source input 53
* = Default Value
Notes/comments:
If only a warning is desired,
1-90 Motor Thermal Protection
should be set to [1] Thermistor
warning.
31-00559-01
