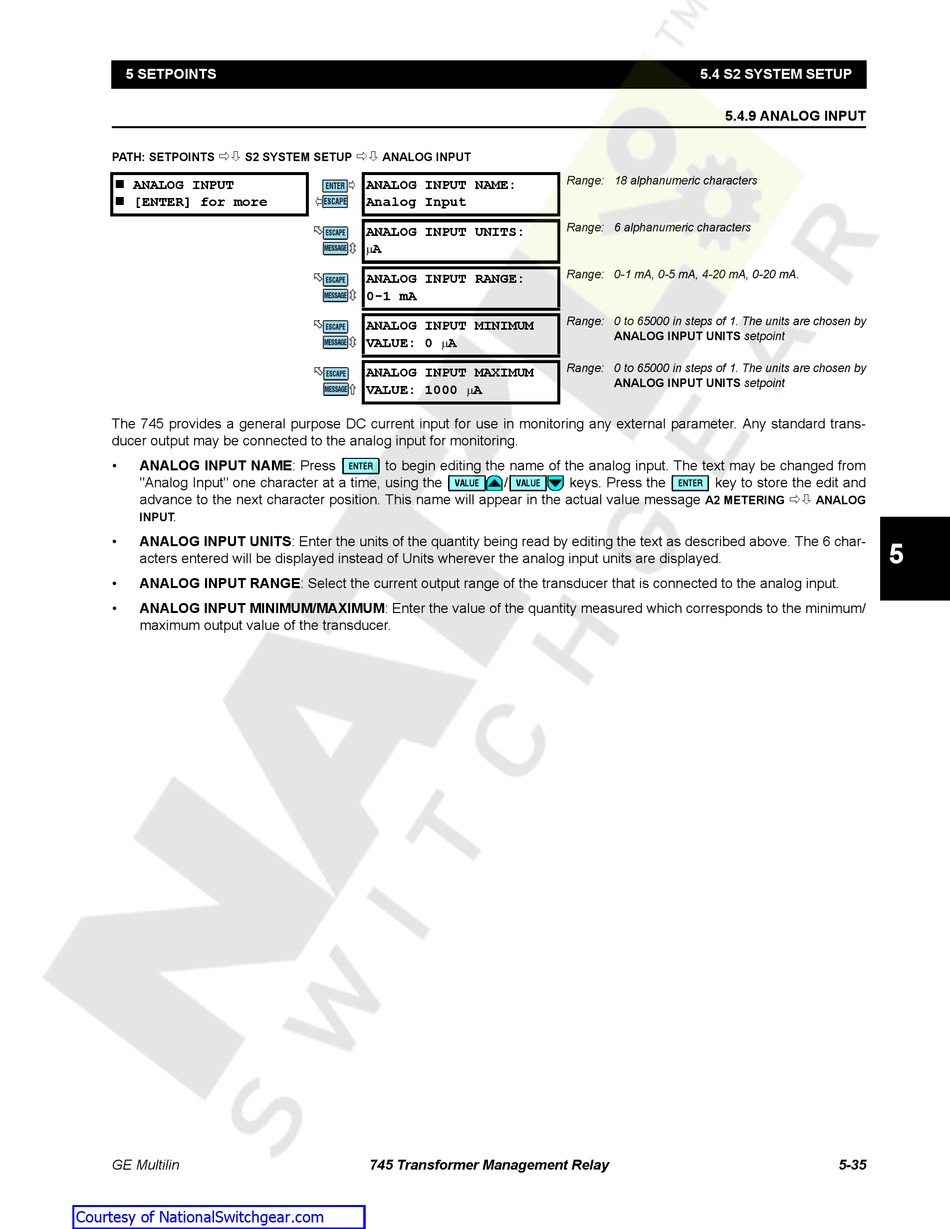

5 SETPOINTS
PATH: SETPOINTS S2 SYSTEM SETUP

ANALOG INPUT

[ENTER] for more
The 745 provides a general purpose DC current input for use in monitoring any external parameter. Any standard trans-
ducer output may be connected to the analog input for monitoring.
• ANALOG INPUT NAME: Press
"Analog Input" one character at a time, using the
advance to the next character position. This name will appear in the actual value message
.
INPUT
• ANALOG INPUT UNITS: Enter the units of the quantity being read by editing the text as described above. The 6 char-
acters entered will be displayed instead of Units wherever the analog input units are displayed.
• ANALOG INPUT RANGE: Select the current output range of the transducer that is connected to the analog input.
• ANALOG INPUT MINIMUM/MAXIMUM: Enter the value of the quantity measured which corresponds to the minimum/
maximum output value of the transducer.
