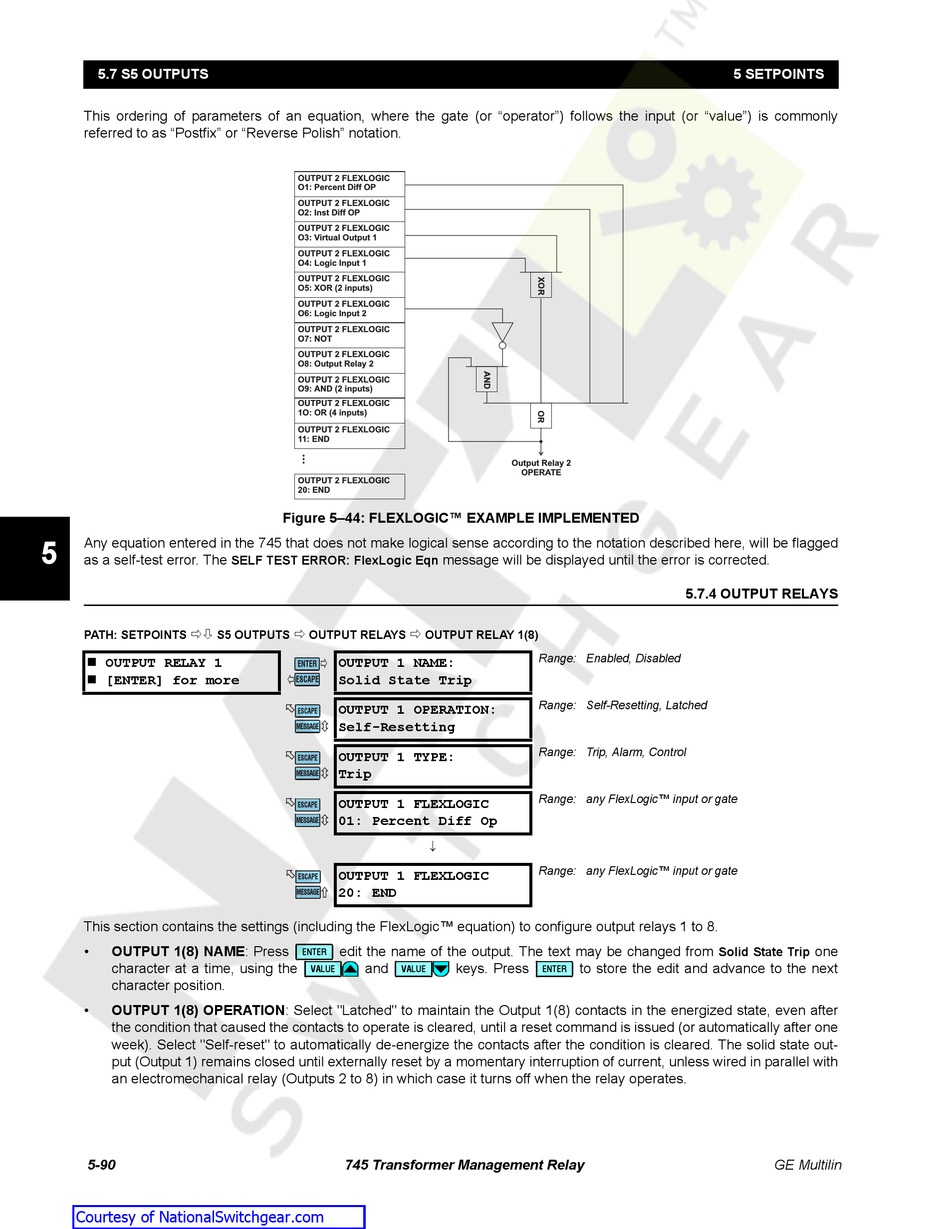

GE TRANSFORMER MANAGEMENT RELAY 745 Instruction Manual page 140

5.7 S5 OUTPUTS
This ordering of parameters of an equation, where the gate (or "operator") follows the input (or "value") is commonly
referred to as "Postfix" or "Reverse Polish" notation.
5 Any equation entered in the 745 that does not make logical sense according to the notation described here, will be flagged
as a self-test error. The
PATH: SETPOINTS S5 OUTPUTS
OUTPUT RELAY 1
[ENTER] for more
This section contains the settings (including the FlexLogic™ equation) to configure output relays 1 to 8.
• OUTPUT 1(8) NAME: Press
character at a time, using the
character position.
• OUTPUT 1(8) OPERATION: Select "Latched" to maintain the Output 1(8) contacts in the energized state, even after
the condition that caused the contacts to operate is cleared, until a reset command is issued (or automatically after one
week). Select "Self-reset" to automatically de-energize the contacts after the condition is cleared. The solid state out-
put (Output 1) remains closed until externally reset by a momentary interruption of current, unless wired in parallel with
an electromechanical relay (Outputs 2 to 8) in which case it turns off when the relay operates.
5-90
Courtesy of NationalSwitchgear.com
OUTPUT 2 FLEXLOGIC
O1: Percent Diff OP
OUTPUT 2 FLEXLOGIC
O2: Inst Diff OP
OUTPUT 2 FLEXLOGIC
O3: Virtual Output 1
OUTPUT 2 FLEXLOGIC
O4: Logic Input 1
OUTPUT 2 FLEXLOGIC
O5: XOR (2 inputs)
OUTPUT 2 FLEXLOGIC
O6: Logic Input 2
OUTPUT 2 FLEXLOGIC
O7: NOT
OUTPUT 2 FLEXLOGIC
O8: Output Relay 2
OUTPUT 2 FLEXLOGIC
O9: AND (2 inputs)
OUTPUT 2 FLEXLOGIC
1O: OR (4 inputs)
OUTPUT 2 FLEXLOGIC
11: END
OUTPUT 2 FLEXLOGIC
20: END
Figure 5–44: FLEXLOGIC™ EXAMPLE IMPLEMENTED
SELF TEST ERROR: FlexLogic Eqn
OUTPUT RELAYS
ð
OUTPUT 1 NAME:
ENTER
Solid State Trip
ESCAPE
OUTPUT 1 OPERATION:
ESCAPE
Self-Resetting
MESSAGE
OUTPUT 1 TYPE:
ESCAPE
Trip
MESSAGE
OUTPUT 1 FLEXLOGIC
ESCAPE
01: Percent Diff Op
MESSAGE
OUTPUT 1 FLEXLOGIC
ESCAPE
20: END
MESSAGE
edit the name of the output. The text may be changed from
ENTER
and
VALUE VALUE
745 Transformer Management Relay
Output Relay 2
OPERATE
message will be displayed until the error is corrected.
OUTPUT RELAY 1(8)
Range: Enabled, Disabled
Range: Self-Resetting, Latched
Range: Trip, Alarm, Control
Range: any FlexLogic™ input or gate
↓
Range: any FlexLogic™ input or gate
keys. Press to store the edit and advance to the next
ENTER
5 SETPOINTS
5.7.4 OUTPUT RELAYS
one
Solid State Trip
