5.2 AUTO-CONFIGURATION
b) ONLOAD TAP CHANGER
• Onload tap changer
• Variable voltage ratio
• CT / CT = V / V
2 1 1
• Lower sensitivity on differential element
Solution:
• Tap position monitoring: V
For example, the onload tap changer changes the Winding 2 voltage, resulting in an even greater CT mismatch. A perfectly
matched Winding 2 CT ratio (based on the tap changer position) is calculated as follows:
where n = current tap changer position
V = Winding 2 minimum voltage (at n = 1)
2(min)
V = Winding 2 voltage increment per tap
2(tap)
Thus, with the tap changer at position 33, the Winding 2 CT ratio must be 1428.6 / 1 to be perfectly matched. In this case,
the mismatch factor is 1428.6 / 1500 = 0.952.
The 745 allows monitoring of the tap changer position via the tap position input. With this input, the 745 dynamically adjusts
the CT ratio mismatch factor based on the actual transformer voltage ratio set by the tap changer.
Tap changers are operated by means of a motor drive unit mounted on the outside of the transformer tank. The motor drive
is placed in a protective housing containing all devices necessary for operation, including a tap position indication circuit.
5
This indication circuit has a terminal for each tap with a fixed resistive increment per tap. A cam from the drive shaft that
provides local tap position indication also controls a wiper terminal in the indication circuit, as illustrated below.
The "zero position" terminal and the "wiper" terminal of the tap position circuit are connected to the positive and negative
745 tap position terminals. Polarity is not consequential. The following setpoints configure the 745 to determine tap posi-
tion. In the
S2 SYSTEM SETUP
WINIDNG WITH TAP CHANGER
NUMBER OF TAP POSITIONS
MINIMUM TAP POSITION VOLTAGE
VOLTAGE INCREMENT PER TAP
RESISTANCE INCREMENT PER TAP
The maximum value resistance on the top tap is 5 kΩ.
5-6
Courtesy of NationalSwitchgear.com
2
= V + (n – 1)V
2 min incr
× ---------------------------------------------------------- -
CT (ideal) CT
=
2 1
V
+
( )
2 min
R
R TAP 2
TAP 1
R
ZERO
POSITION
ZERO POSITION
TERMINAL
(to TAP POSITION -)

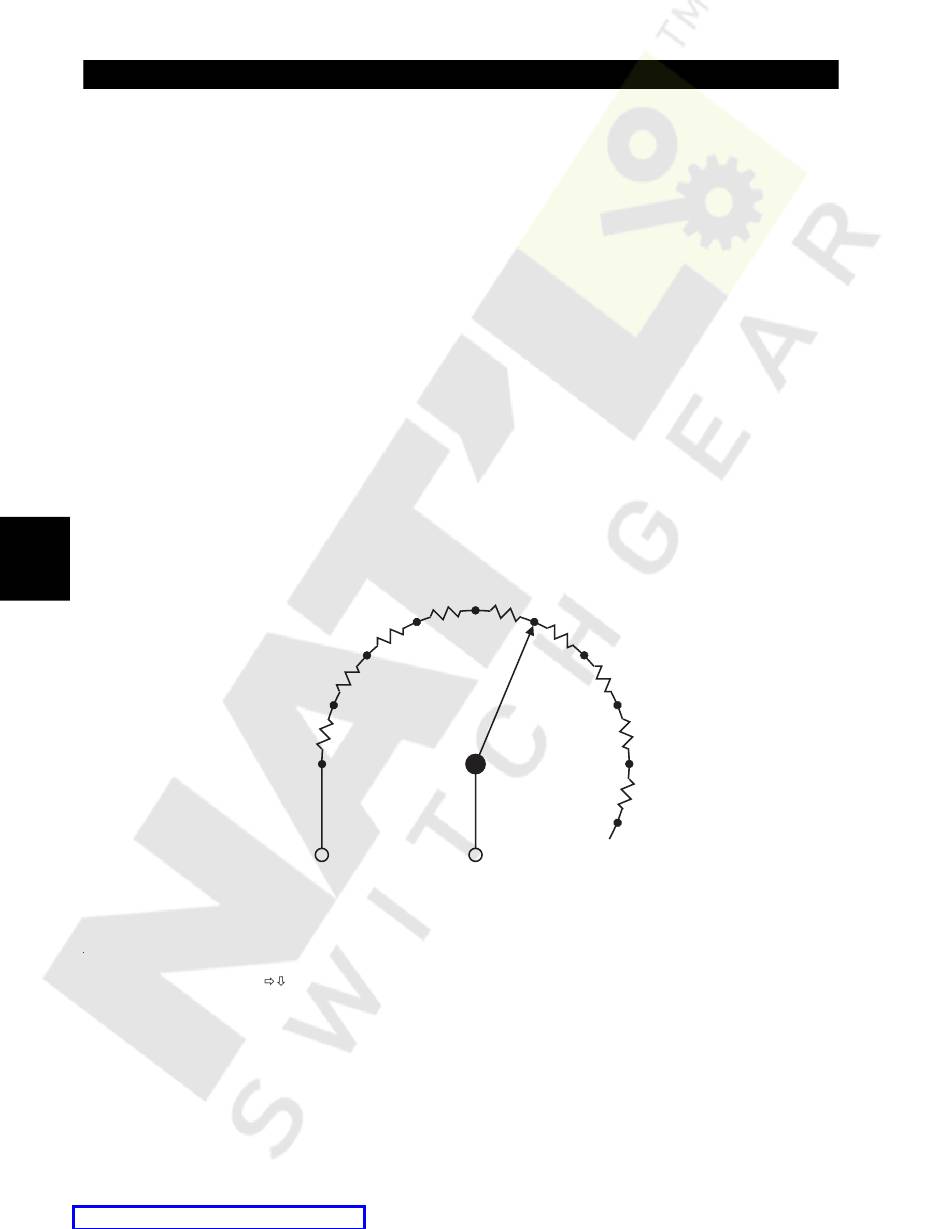

Figure 5–1: TAP POSITION INPUT
