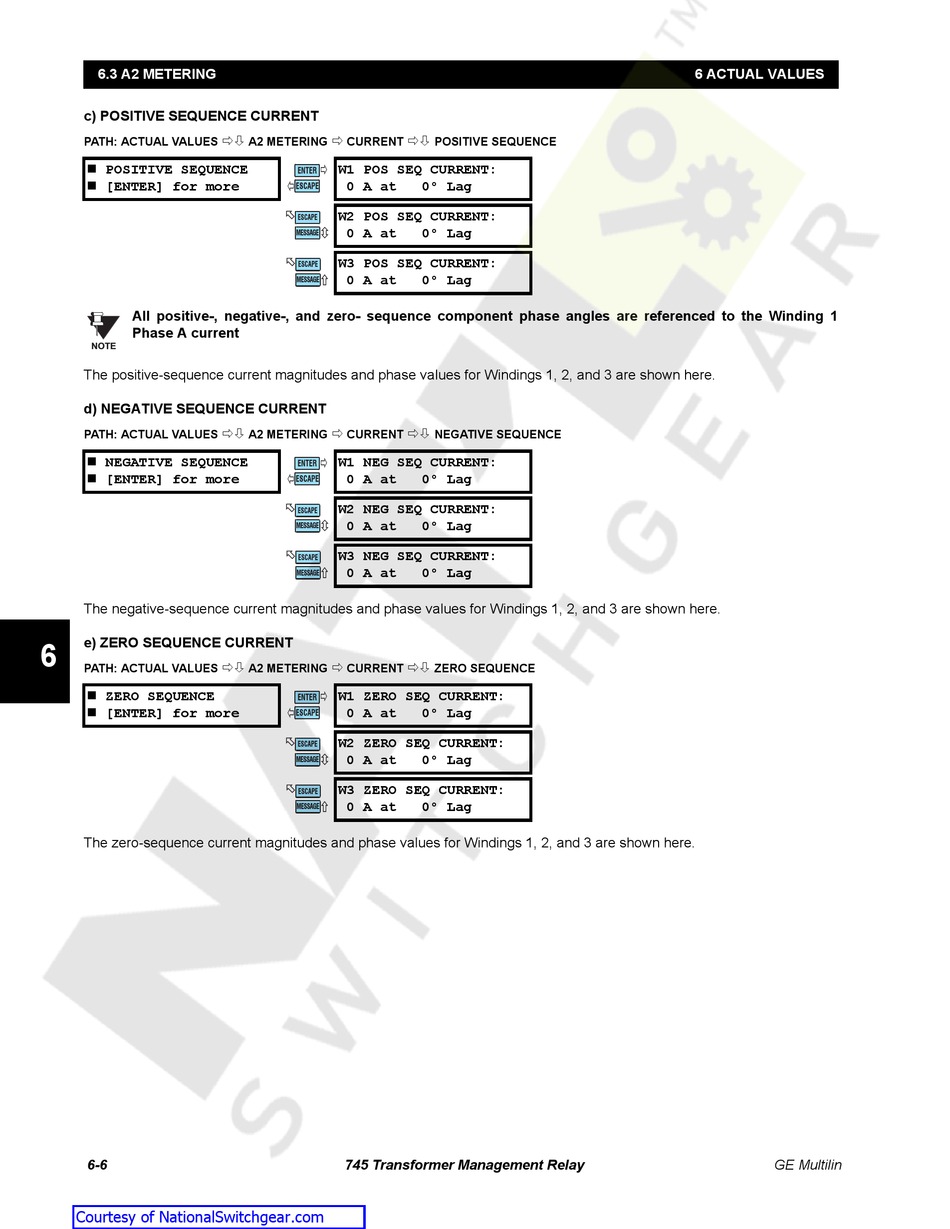

6.3 A2 METERING
c) POSITIVE SEQUENCE CURRENT
PATH: ACTUAL VALUES
POSITIVE SEQUENCE
[ENTER] for more
All positive-, negative-, and zero- sequence component phase angles are referenced to the Winding 1
Phase A current
NOTE
The positive-sequence current magnitudes and phase values for Windings 1, 2, and 3 are shown here.
d) NEGATIVE SEQUENCE CURRENT
PATH: ACTUAL VALUES
NEGATIVE SEQUENCE
[ENTER] for more
The negative-sequence current magnitudes and phase values for Windings 1, 2, and 3 are shown here.
e) ZERO SEQUENCE CURRENT
6
PATH: ACTUAL VALUES
ZERO SEQUENCE
[ENTER] for more
The zero-sequence current magnitudes and phase values for Windings 1, 2, and 3 are shown here.
6-6
Courtesy of NationalSwitchgear.com
A2 METERING CURRENT
ð
W1 POS SEQ CURRENT:
ENTER
0 A at 0° Lag
ESCAPE
W2 POS SEQ CURRENT:
ESCAPE
0 A at 0° Lag
MESSAGE
W3 POS SEQ CURRENT:
ESCAPE
0 A at 0° Lag
MESSAGE
A2 METERING CURRENT
ð
W1 NEG SEQ CURRENT:
ENTER
0 A at 0° Lag
ESCAPE
W2 NEG SEQ CURRENT:
ESCAPE
0 A at 0° Lag
MESSAGE
W3 NEG SEQ CURRENT:
ESCAPE
0 A at 0° Lag
MESSAGE
A2 METERING CURRENT
ð
W1 ZERO SEQ CURRENT:
ENTER
0 A at 0° Lag
ESCAPE
W2 ZERO SEQ CURRENT:
ESCAPE
0 A at 0° Lag
MESSAGE
W3 ZERO SEQ CURRENT:
ESCAPE
0 A at 0° Lag
MESSAGE
745 Transformer Management Relay
POSITIVE SEQUENCE
NEGATIVE SEQUENCE
ZERO SEQUENCE
6 ACTUAL VALUES
