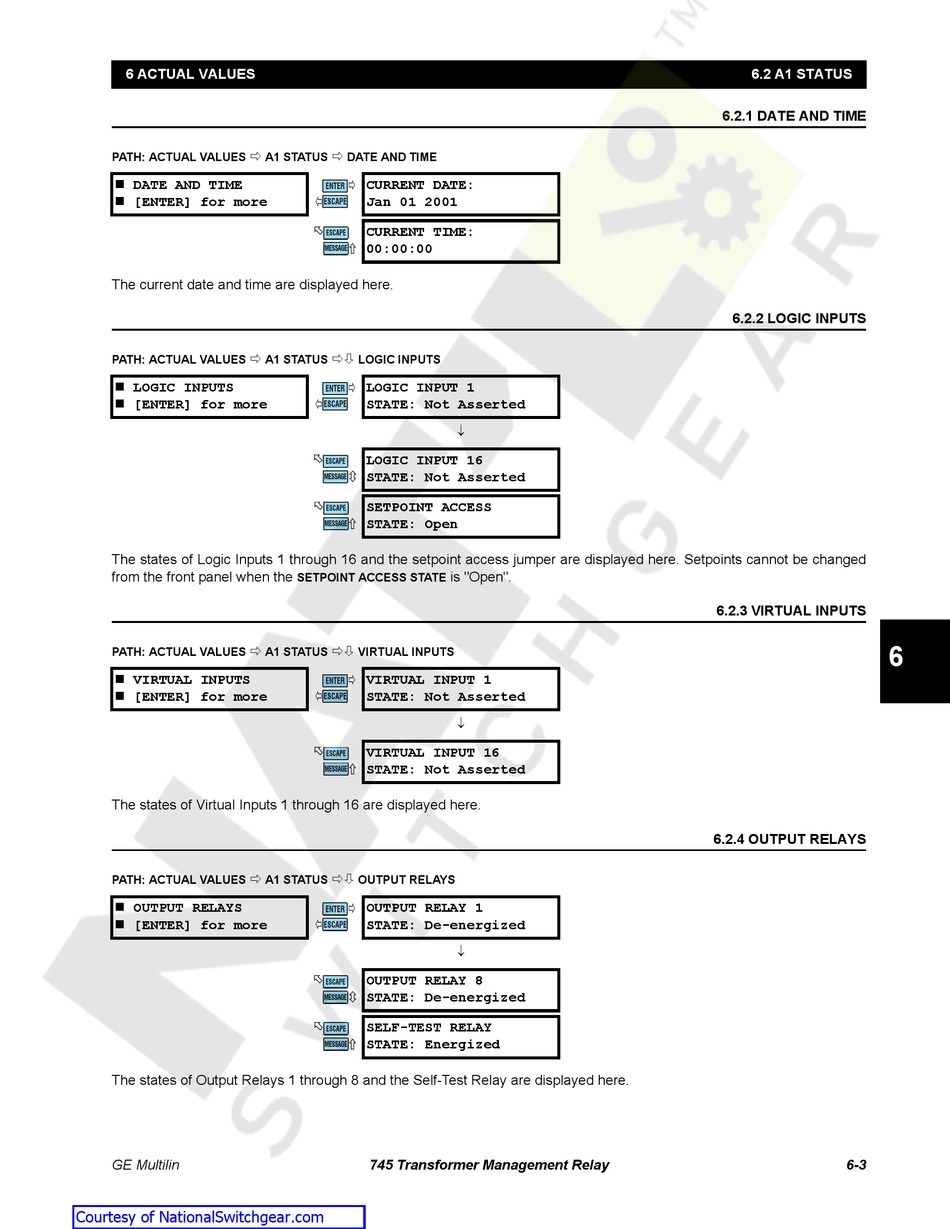

GE TRANSFORMER MANAGEMENT RELAY 745 Instruction Manual page 151

6 ACTUAL VALUES
6.2A1 STATUS
PATH: ACTUAL VALUES
DATE AND TIME
[ENTER] for more
The current date and time are displayed here.
PATH: ACTUAL VALUES
LOGIC INPUTS
[ENTER] for more
The states of Logic Inputs 1 through 16 and the setpoint access jumper are displayed here. Setpoints cannot be changed
from the front panel when the
PATH: ACTUAL VALUES
VIRTUAL INPUTS
[ENTER] for more
The states of Virtual Inputs 1 through 16 are displayed here.
PATH: ACTUAL VALUES
OUTPUT RELAYS
[ENTER] for more
The states of Output Relays 1 through 8 and the Self-Test Relay are displayed here.
GE Multilin
Courtesy of NationalSwitchgear.com
A1 STATUS DATE AND TIME
ð
CURRENT DATE:
ENTER
Jan 01 2001
ESCAPE
CURRENT TIME:
ESCAPE
00:00:00
MESSAGE
A1 STATUS LOGIC INPUTS
ð
LOGIC INPUT 1
ENTER
STATE: Not Asserted
ESCAPE
LOGIC INPUT 16
ESCAPE
STATE: Not Asserted
MESSAGE
SETPOINT ACCESS
ESCAPE
STATE: Open
MESSAGE
SETPOINT ACCESS STATE
A1 STATUS VIRTUAL INPUTS
ð
VIRTUAL INPUT 1
ENTER
STATE: Not Asserted
ESCAPE
VIRTUAL INPUT 16
ESCAPE
STATE: Not Asserted
MESSAGE
A1 STATUS OUTPUT RELAYS
ð
OUTPUT RELAY 1
ENTER
STATE: De-energized
ESCAPE
OUTPUT RELAY 8
ESCAPE
STATE: De-energized
MESSAGE
SELF-TEST RELAY
ESCAPE
STATE: Energized
MESSAGE
745 Transformer Management Relay
↓
is "Open".
↓
↓
6.2 A1 STATUS
6.2.1 DATE AND TIME
6.2.2 LOGIC INPUTS
6.2.3 VIRTUAL INPUTS
6
6.2.4 OUTPUT RELAYS
6-3
