5.6 S4 ELEMENTS

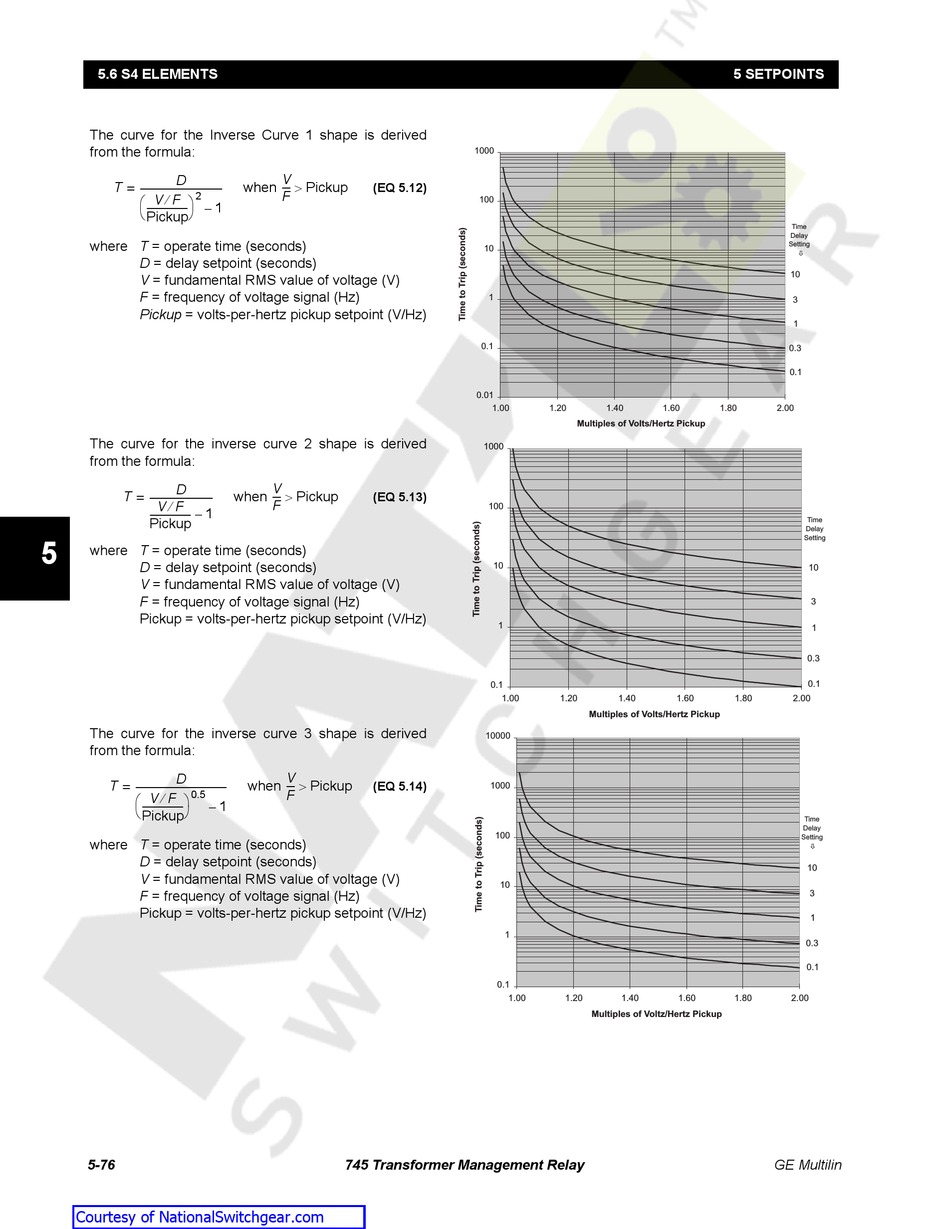

The curve for the Inverse Curve 1 shape is derived
from the formula:
D
T -----------------------------------
=
V F ⁄ 2
 
----------------- -
1
–
 
Pickup
where T = operate time (seconds)
D = delay setpoint (seconds)
V = fundamental RMS value of voltage (V)
F = frequency of voltage signal (Hz)
Pickup = volts-per-hertz pickup setpoint (V/Hz)
The curve for the inverse curve 2 shape is derived
from the formula:
D
T
-------------------------- -
=
V F ⁄
----------------- - 1
–
Pickup
5
where T = operate time (seconds)
D = delay setpoint (seconds)
V = fundamental RMS value of voltage (V)
F = frequency of voltage signal (Hz)
Pickup = volts-per-hertz pickup setpoint (V/Hz)
The curve for the inverse curve 3 shape is derived
from the formula:
D
T -------------------------------------- -
=
V F ⁄ 0.5
 
----------------- -
1
–
 
Pickup
where T = operate time (seconds)
D = delay setpoint (seconds)
V = fundamental RMS value of voltage (V)
F = frequency of voltage signal (Hz)
Pickup = volts-per-hertz pickup setpoint (V/Hz)
