4.2 745PC SOFTWARE INTERFACE
Installation of the 745PC software is accomplished as follows:
1. Ensure that Windows is running on the local PC.
2. Insert the GE Multilin Products CD into your CD-ROM drive or point your web browser to the GE Multilin website at
http://www.GEindustrial.com/multilin. Under Windows 95/98, the Product CD will launch the welcome screen automat-
ically. Since the Products CD is essentially a "snapshot" of the GE Multilin website, the procedures for installation from
the CD and the web are identical.
4
3. Click the Index by Product Name item from the main page and select 745 Transformer Management Relay from the
product list to open the 745 product page.
4. Click the Software item from the Product Resources list to bring you to the 745 software page.
5. The latest version of the 745PC software will be shown. Click on the 745PC Program item to download the installation
program to your local PC. Run the installation program and follow the prompts to install to the desired directory. When
complete, a new GE Multilin group window will appear containing the 745PC icon.
4-8
Courtesy of NationalSwitchgear.com

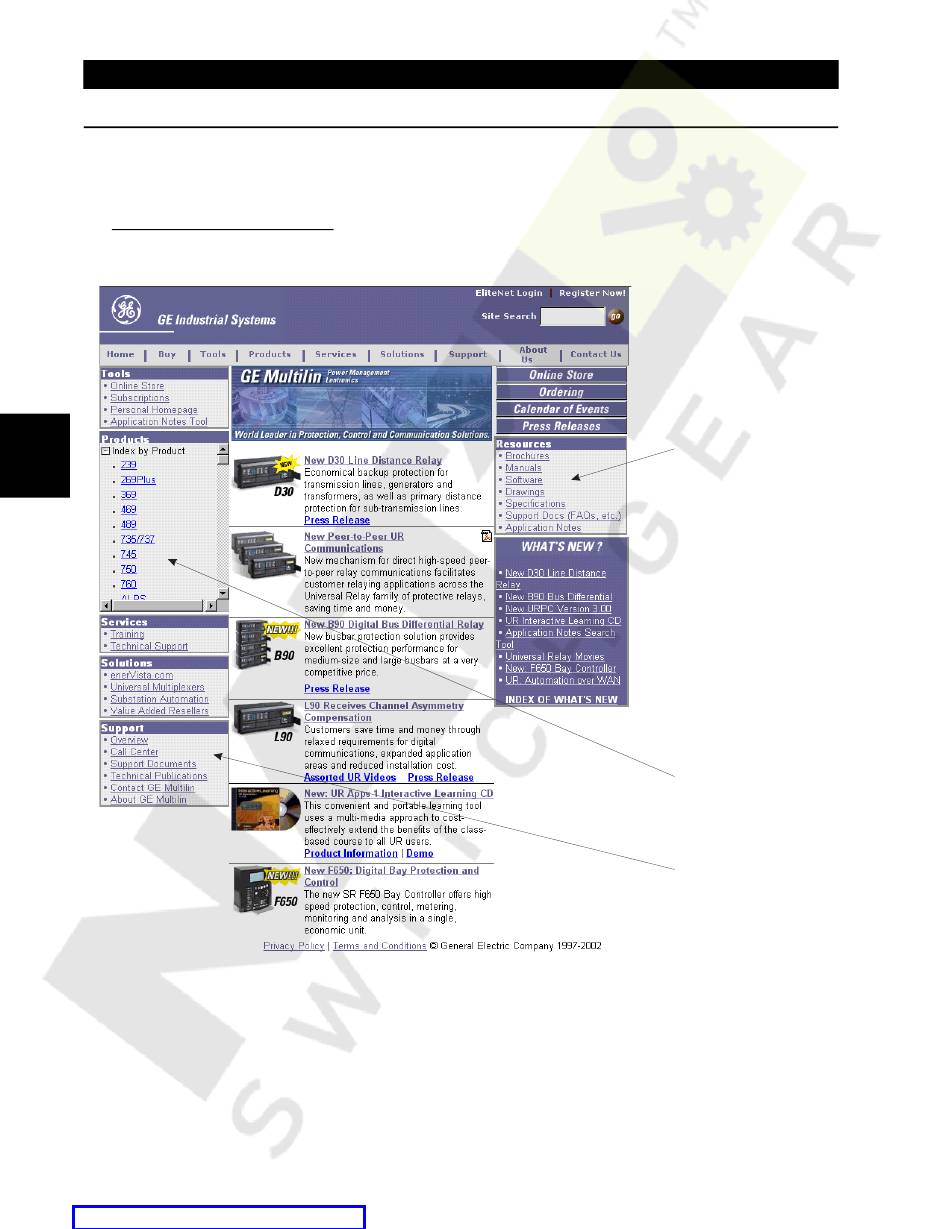

Figure 4–6: GE MULTILIN WELCOME SCREEN
745 Transformer Management Relay
4 HUMAN INTERFACES

4.2.5 745PC INSTALLATION

Specific resources can be
accessed from this menu
Select 745 from the
Products list to proceed
directly to the 745
Transformer Management
Relay Product Page
Technical publications
and support for the 745
can be accessed through
the Support menu
