Chapter 3: System Setup

Installing a Wi-Fi Module

When installing both the M.2 and Wi-Fi module, please install

the M.2 module first.

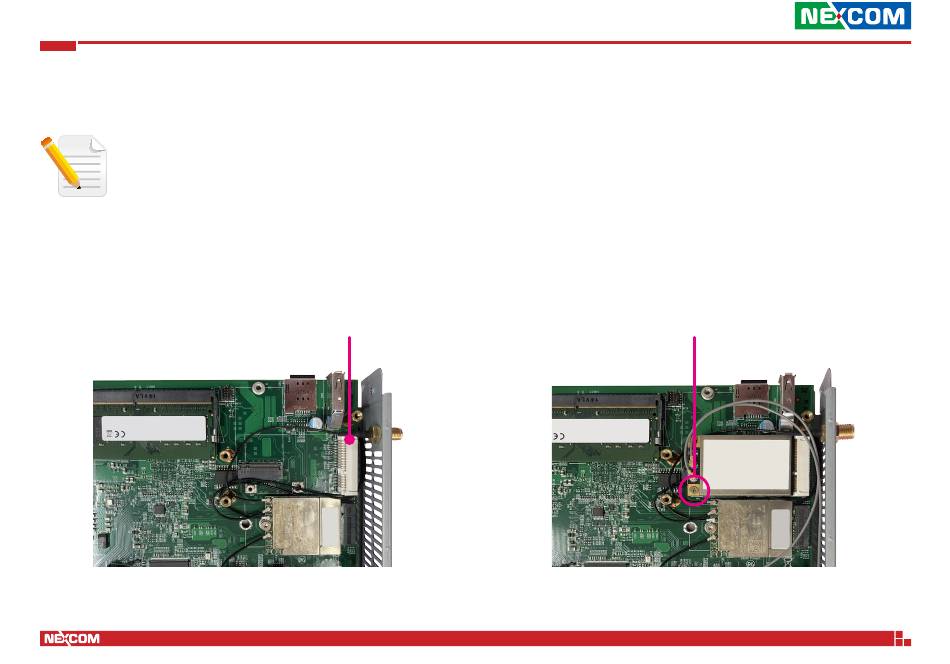

1. Locate the Wi-Fi slot on the motherboard.

Wi-Fi slot

2. Insert the Wi-Fi module into the Wi-Fi slot at a 45 degrees angle until the

gold-plated connector on the edge of the module completely disappears

inside the slot. Push the Wi-Fi module down and fasten a Wi-Fi mounting

screw into the mounting hole to secure the module.

Secure the Wi-Fi module

DTA1376 Series User Manual
