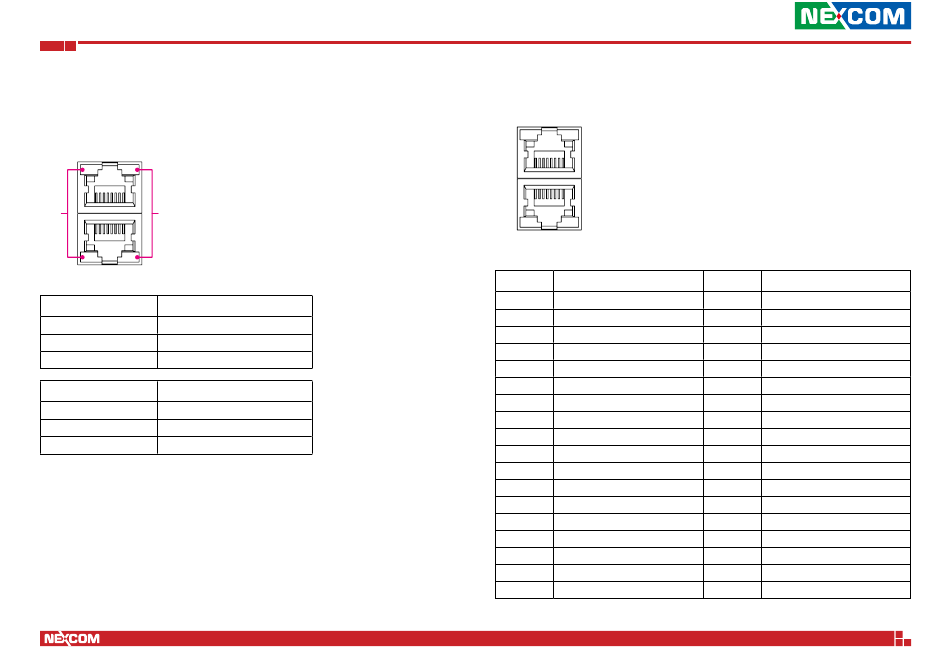

LAN 1 and LAN 2 Ports

Connector type: RJ45 with LEDs
Connector location: J1
ACT LINK
Act (Left) Status
Steady Green Ethernet connected
Off No connection
Flash Green Data transferring
Link (Right) Status
Blinking Green 1G network link
Steady Orange 100Mbps network link
Off 10Mbps or no link
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
LAN 1
A14 A1
B1 B14
LAN 2
Pin Definition
A1 PORT2_MDI0
A2 PORT2_MDI1
A3 PORT2_MDI2
A4 PORT2_MDI3
A5 PORT2_MDI4
A6 PORT2_MDI5
A7 PORT2_MDI6
A8 PORT2_MDI7
A9 VCC_A
A10 GND_A
A11 V3P3
A12 1545_LAN2_LED_ACT
A13 1545_LAN2_LED_1000M
A14 1545_LAN2_LED_100M
MH1 GND_chassis
MH2 GND_chassis
MH3 GND_chassis
NH1 NC
12
Pin Definition
B1 PORT1_MDI0
B2 PORT1_MDI1
B3 PORT1_MDI2
B4 PORT1_MDI3
B5 PORT1_MDI4
B6 PORT1_MDI5
B7 PORT1_MDI6
B8 PORT1_MDI7
B9 VCC_B
B10 GND_B
B11 V3P3
B12 1545_LAN1_LED_ACT
B13 1545_LAN1_LED_1000M
B14 1545_LAN1_LED_100M
MH4 GND_chassis
MH5 GND_chassis
MH6 GND_chassis
NH2 NC
