Chapter 2: Jumpers and Connectors

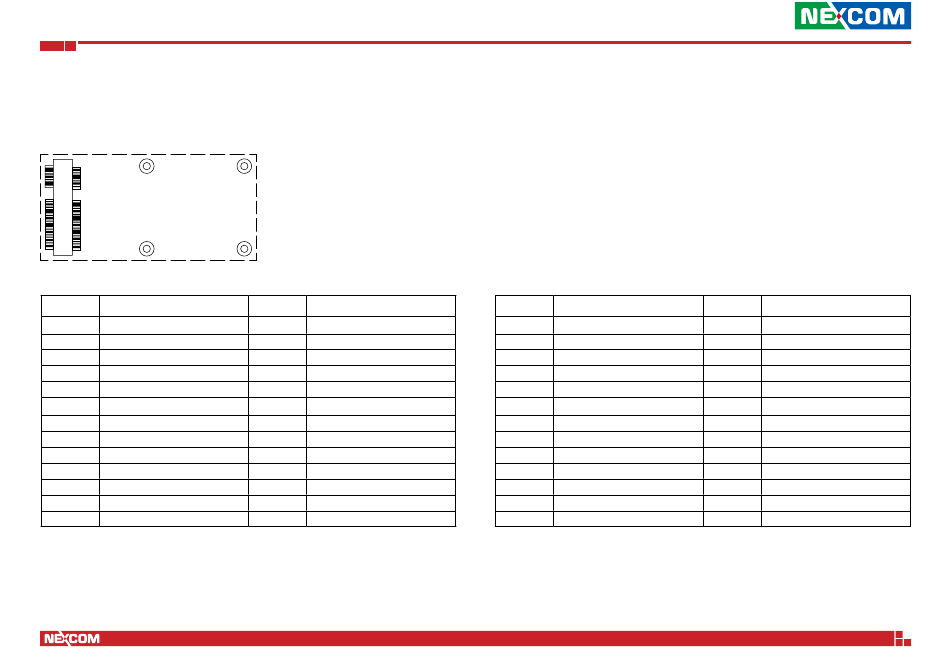

Mini-PCIe Connector for Wi-Fi 5 module

Connector location: CN4
1 2
51 52
Pin
Definition
1 P3V3_MNPE
2 P3V3_MNPE
3 NC
4 GND
5 NC
6 NC
7 CLKREQ_MNPE_N
8 NC
9 GND
10 NC
11 PCIE2_REFCLK_S_N
12 NC
13 PCIE2_REFCLK_S_P
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
14 NC
15 GND
16 NC
17 NC
18 GND
19 NC
20 W_DISABLE_MNPE_N
21 GND
22 SOC_PLTRST_N
23 MNPE_RX_DN0_R
24 P3V3_MNPE
25 MNPE_RX_DP0_R
26 GND
Pin
Definition
27 GND
28 NC
29 GND
30 SMBUS_EKEY_CLK
31 SD2_TX1_N
32 SMBUS_EKEY_DATA
33 SD2_TX1_P
34 GND
35 GND
36 TEST_POINT
37 GND
38 TEST_POINT
39 P3V3_MNPE
21
Pin
Definition
40 GND
41 P3V3_MNPE
42 P3V3_MNPE
43 GND
44 P3V3_MNPE
45 V5P0
46 P3V3_MNPE
47 V5P0
48 NC
49 V5P0
50 GND
51 V5P0
52 P3V3_MNPE
