Chapter 2: Jumpers and Connectors

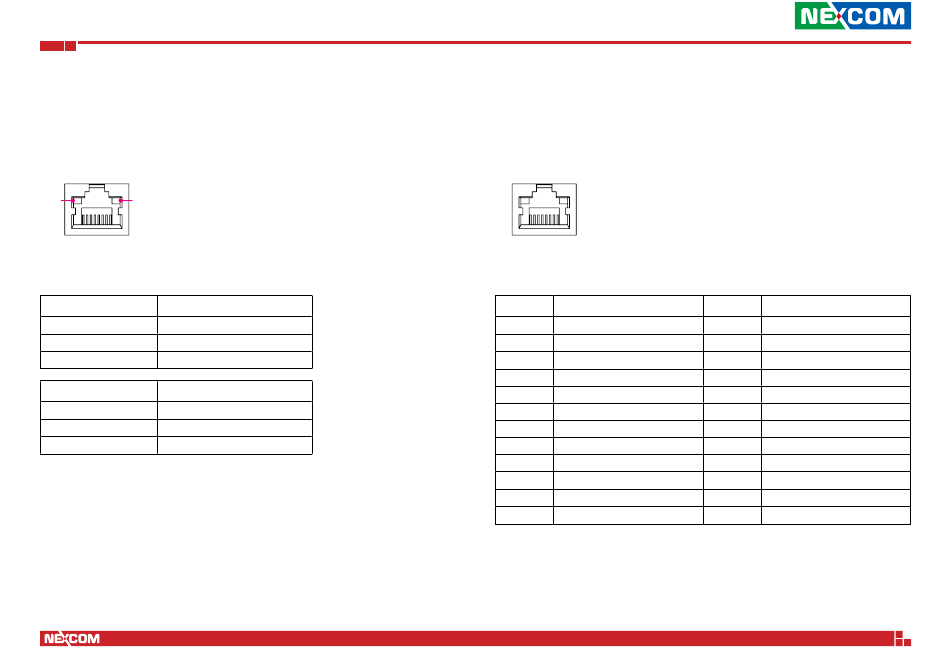

LAN 0 Port
Connector type: RJ45 with LEDs
Connector location: T1
ACT
LINK
Act (Left)
Status
Steady Green
Ethernet connected
Off
No connection
Blinking Green
Data transferring
Link (Right)
Status
Steady Green
1G network link
Steady Orange
100Mbps network link
Off
10Mbps or no link
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
14
1
Pin
Definition
1
PB_CT
2
PB_MDI2N
3
PB_MDI2P
4
PB_MDI1P
5
PB_MDI1N
6
PB_CT
7
PB_CT
8
PB_MDI3P
9
PB_MDI3N
10
PB_MDI0N
11
PB_MDI0P
12
PB_CT
15
Pin
Definition
13
PR12
14
PR36
15
PR45
16
PR78
L1
1G_LAN1_LED_100M
L2
1G_LAN1_LED_1000M
L3
1G_LAN1_LED_ACT
L4
V3P3
MH1
GND_chassis
MH2
GND_chassis
NH1
NC
NH2
NC
