Chapter 2: Jumpers and Connectors

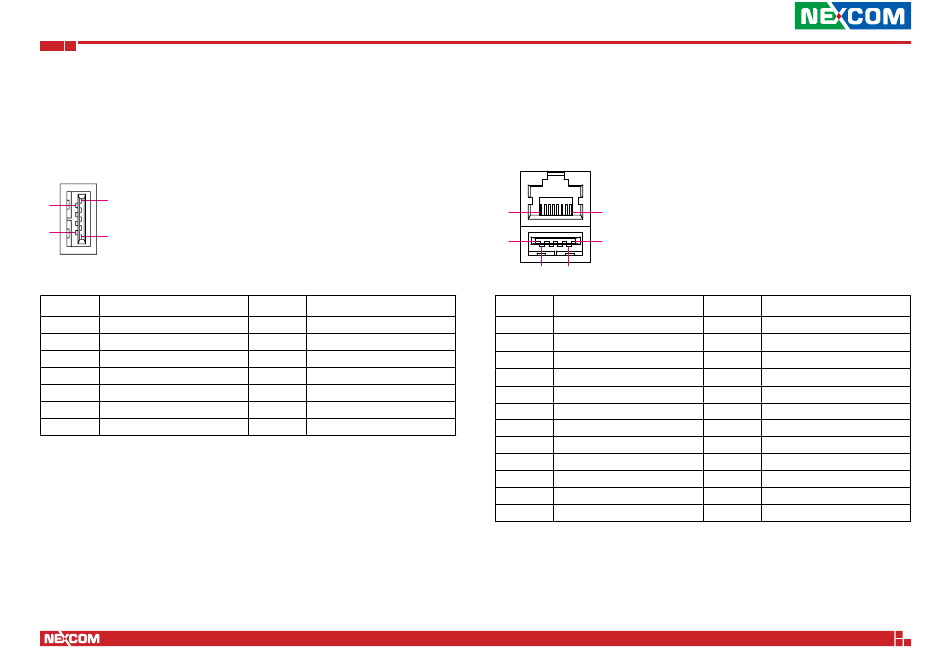

USB 3.0 Port (front panel)

Connector type: USB 3.0 port, Type A
Connector location: CN6
9
1
4
5
Pin Definition
1 P5V
2 USB2_DN
3 USB2_DP
4 GND
5 USB3_RX_DN
6 USB3_RX_DP
7 GND
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
8 USB3_TX_DN
9 USB3_TX_DP
MH1 GND_chassis
MH2 GND_chassis
MH3 GND_chassis
MH4 NC

USB 3.0 Port (rear panel) with RJ45 (RS232)

Connector type: USB 3.0 port, Type A
Connector location: J5
10 17
9 5
1 4
Pin Definition
1 P5V
2 USB2_DN
3 USB2_DP
4 GND
5 USB3_RX_DN
6 USB3_RX_DP
7 GND
8 USB3_TX_DN
9 USB3_TX_DP
MH1 GND_chassis
MH2 GND_chassis
MH3 GND_chassis
11
Pin Definition
10 SP_RTS0_R
11 SP_DTR0_R
12 SP_TXD0_R
13 SP_DCD0_R
14 GND
15 SP_RXD0_R
16 SP_DSR0_R
17 SP_CTS0_R
MH4 GND_chassis
MH5 GND_chassis
MH6 GND_chassis
