Chapter 2: Jumpers and Connectors

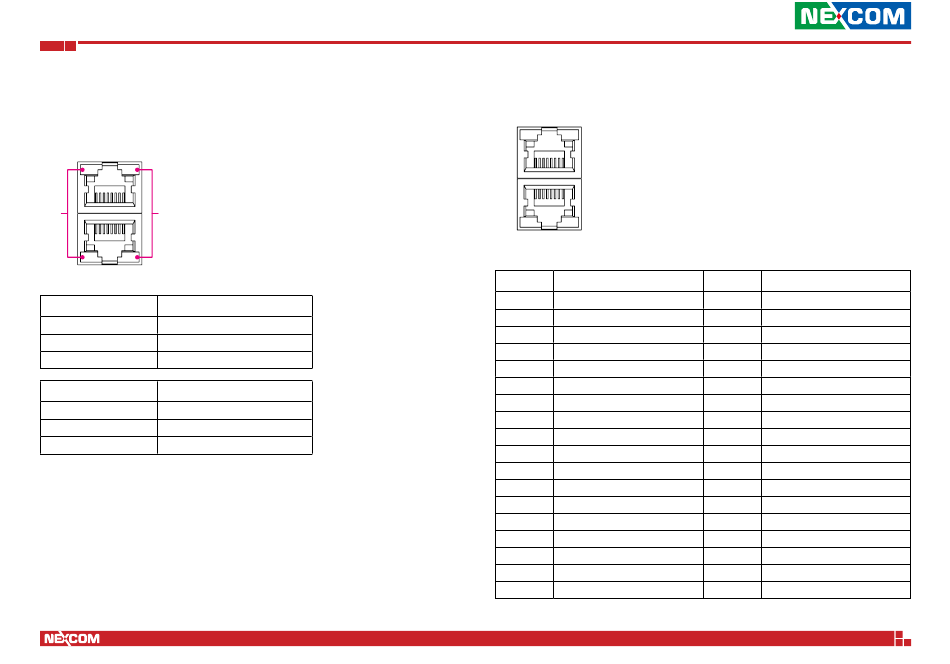

LAN 5 and LAN 6 Ports

Connector type: RJ45 with LEDs
Connector location: J4
ACT LINK
Act (Left) Status
Steady Green Ethernet connected
Off No connection
Blinking Green Data transferring
Link (Right) Status
Steady Green 1G network link
Steady Orange 100Mbps network link
Off 10Mbps or no link
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
LAN 1
A14 A1
B1 B14
LAN 2
Pin Definition
A1 PORT6_MDI0
A2 PORT6_MDI1
A3 PORT6_MDI2
A4 PORT6_MDI3
A5 PORT6_MDI4
A6 PORT6_MDI5
A7 PORT6_MDI6
A8 PORT6_MDI7
A9 VCC_A
A10 GND_A
A11 V3P3
A12 1G_LAN6_LED_ACT
A13 1G_LAN6_LED_1000M
A14 1G_LAN6_LED_100M
MH1 GND_chassis
MH2 GND_chassis
MH3 GND_chassis
NH1 NC
14
Pin Definition
B1 PORT5_MDI0
B2 PORT5_MDI1
B3 PORT5_MDI2
B4 PORT5_MDI3
B5 PORT5_MDI4
B6 PORT5_MDI5
B7 PORT5_MDI6
B8 PORT5_MDI7
B9 VCC_B
B10 GND_B
B11 V3P3
B12 1G_LAN5_LED_ACT
B13 1G_LAN5_LED_1000M
B14 1G_LAN5_LED_100M
MH4 GND_chassis
MH5 GND_chassis
MH6 GND_chassis
NH2 NC
