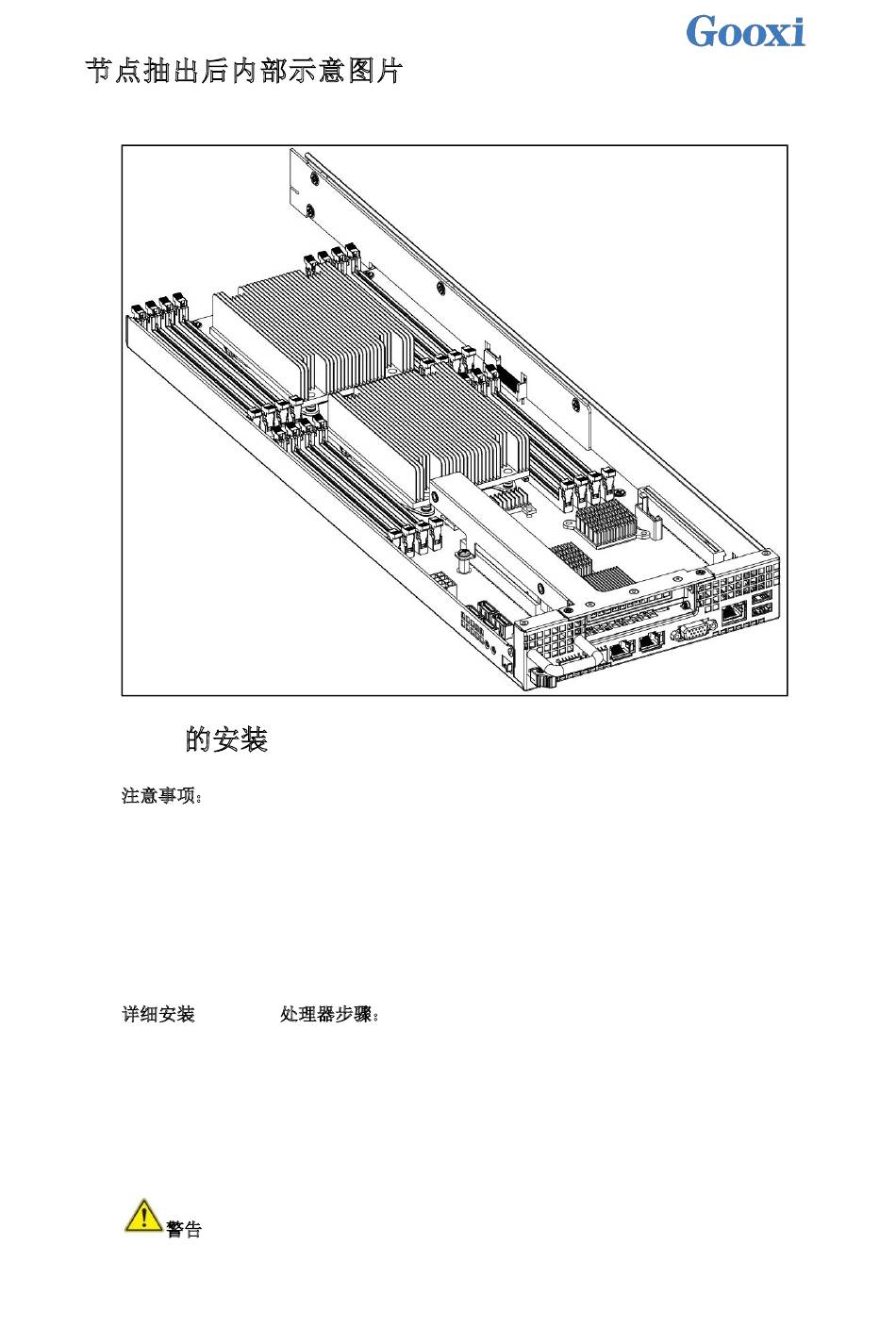

节点抽出后内部示意图片如下：Schematic Diagram For The Internal Part After Extraction Of The Node; Cpu 的安装 Cpu Installation - Gooxi R Series User Manual

节点抽出后内部示意图片如下：Schematic diagram for the
internal part after extraction of the node:
3.1CPU 的安装 CPU installation
注意事项：Notes:
1. 请通过正规渠道购买 Intel CPU。
Please purchase an Intel CPU through proper channels.
2. 请确保购买的处理器规格属于此主板的支持类型。
Please ensure that the motherboard supports the purchased processor.
3. 如果您单独购买散装 CPU，请确保您的 CPU 使用的是 Gooxi 认证的散热器。
If you purchase an in-bulk CPU separately, please ensure that the purchased CPU is
provided with a heat sink certified by Gooxi.
详细安装 LGA2011 处理器步骤：
Detailed installation steps of LGA2011 processor are listed as follows.
1. 按下左侧固定扳手（A）并稍向右侧推（B），直到扳手脱离固定扣，轻轻抬起固
定扳手（C）。
Press down the left-side non-adjustable wrench (A) and push it rightward (B) until the
wrench is separated from the fixing buckle, and then raise gently the non-adjustable
wrench (C).
警告： CPU 安装盒上的保护盖是用来保护插槽上针脚的， 因此只有在 CPU 安装完
毕后，才可将其移除。
