CPU SOCKET
本主板具有两个 LGA2011 CPU Socket， 用来装入 LGA2011 的 CPU. 安装 CPU 过程中，
需要注意第 1PIN 的安装。第 1PIN 如下所示：下图红色圆圈所示为第 1PIN，有三角箭头指
示，以对应 CPU 的三角箭头。
The motherboard is provided with two LGA2011 CPU sockets which are used to hold
LGA2011 CPU. In the installation of CPU, the installation of the first PIN shall be paid attention
to. The first PIN is at the location marked with a red circle in the following schematic diagram
pointed by triangular arrowheads which are corresponding to each CPU.

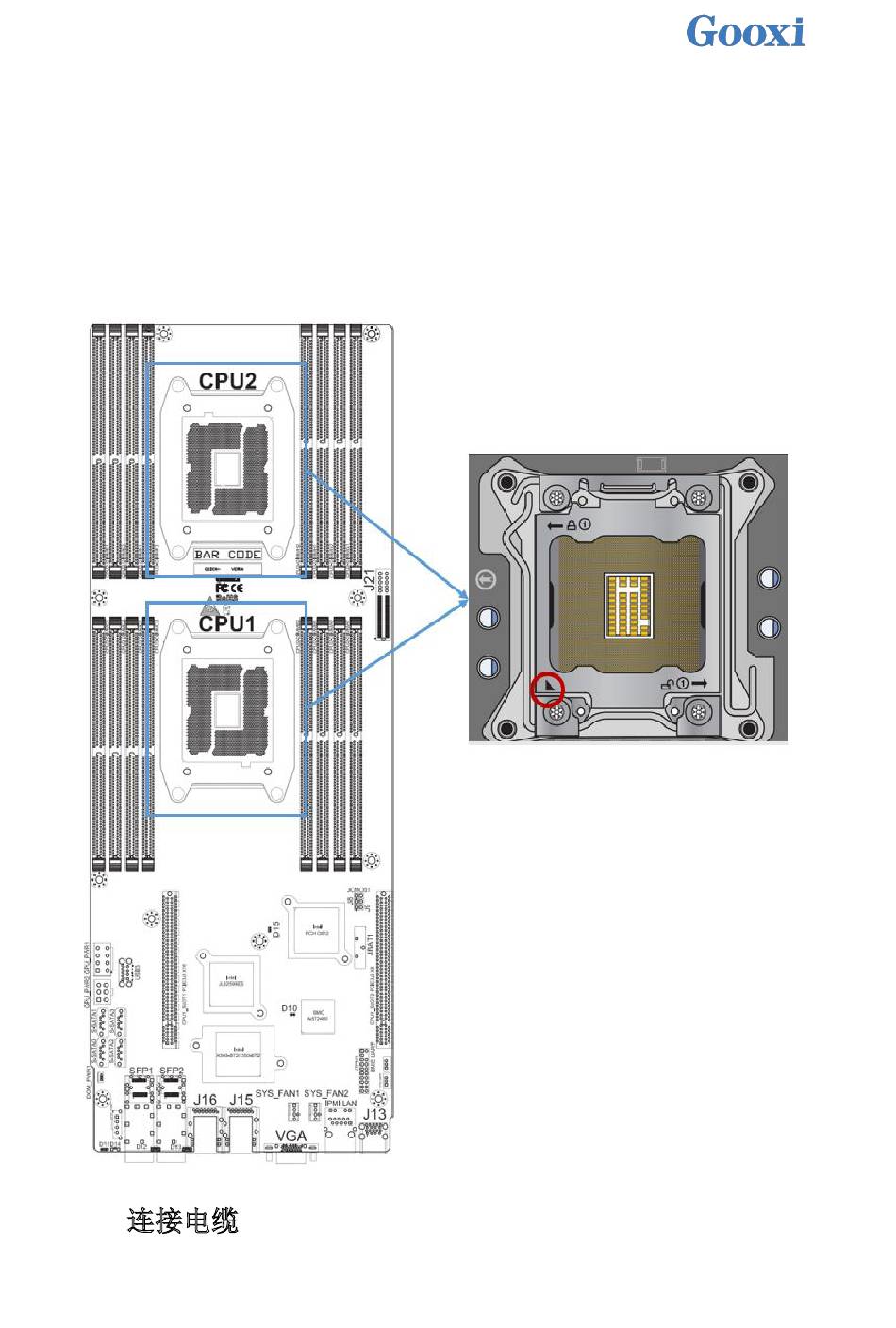

CPU Socket 位置示意图如下：
Locations of these CPU Sockets are shown in the following schematic diagram.
2.3 连接电缆 Connection cable
系统结构都采用高速信号端子及转接板连接，无线缆设计。
