Gooxi R Series User Manual page 23

* 图片仅供参考
* This schematic diagram is for reference only.

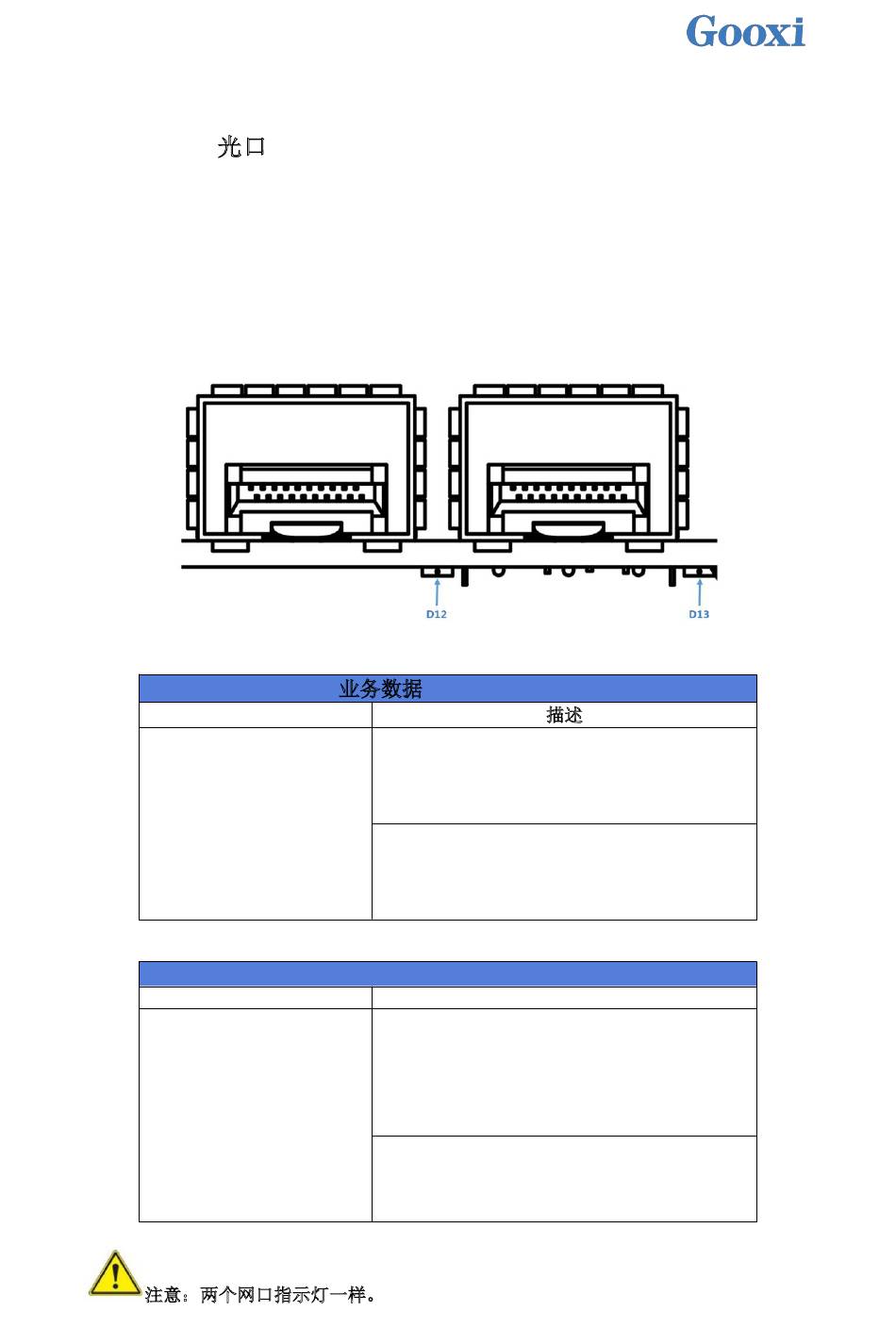

2.2.6 SFP+光口
SFP+ optical port
主板提供两个万兆网口（SFP1，SFP2 位置） ，主板集成了 JL82599ES 万兆光口芯片，
用来接收/发送业务数据，也可以直接连接到客户的主机，该网口的 LED 指示灯（D12,D13）
如下所示：
The motherboard provides two 10G ports (see locations marked with SFP1 and SFP2). The
motherboard integrates the JL82599ES 10G optical port chip. These ports are used to receive/send
business data. These ports can also be directly connected to the user's host. LED indicators (D12
and D13) of these ports are shown in the following schematic diagram.
LED
D12,D13
LED
D12,D13
注意：两个网口指示灯一样。
深圳市国鑫恒宇科技有限公司 Shenzhen Guoxin Hengyu Technology Co., Ltd.
深圳市国鑫恒运信息安全有限公司
业务数据 LAN Port Led
为 Link 状态指示灯：
1 万兆 Link，绿色长亮；
2.千兆 Link，黄色长亮；
3.百/十兆 Link, LED 不亮；
当 Link 链路是万兆， 且有数据活动时， 绿色指
示灯闪烁；
当 Link 链路是万兆， 且有数据活动时， 黄色指
示灯闪烁；
Business Data LAN Port Led
Indicator of Link status:
1.vUnder 10Gbps Link, the green light keeps on;
2. Under 1000Mbps Link, the yellow light keeps
on;
3. Under 100/10Mbps Link, the LED indicator is
off.
Under 10Gbps Link and in case of a data activity,
the green indicator will flash.
Under 10Gbps Link and in case of a data activity,
the yellow indicator will flash.
描述
Description
23
