跳线设置 Jumper Setting - Gooxi R Series User Manual

All system structures are of no cable design, and they are connected through high-speed
signal terminals and adapter plates.
2.4 跳线设置 Jumper setting
G1DCN SERIES 主板内有 3 个 2PIN 插针，下面的图表是这些 2PIN 的插针的区别及其
功能介绍：
The G1DCN SERIES motherboard contains 3 2PINs. Distinctions and functions of these
2PINs are introduced through the following schematic diagram and table.

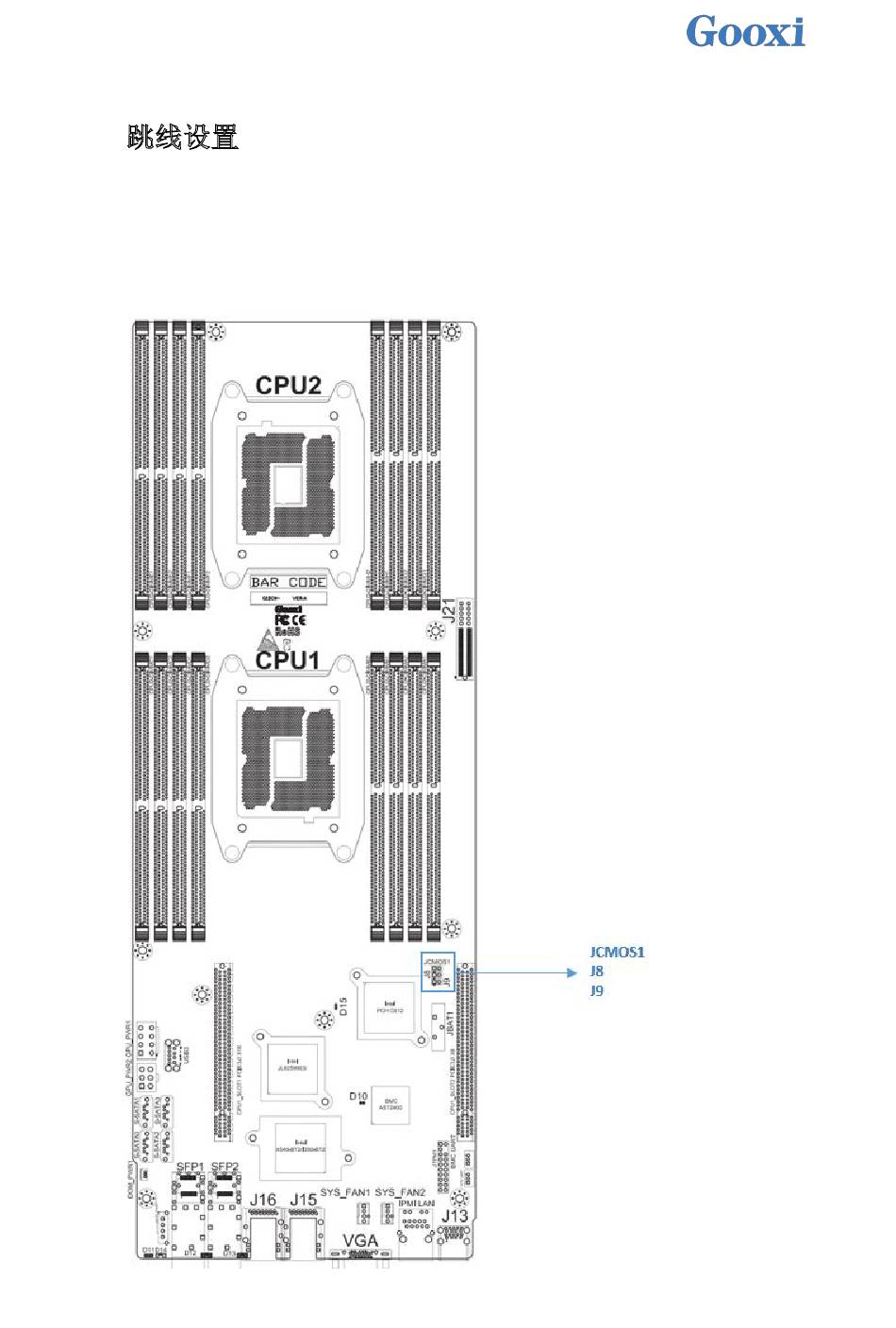

以上 3 个插针位置如下：
Locations of these 3 PINs are shown in the following schematic diagram.
