- Page 1 All manuals and user guides at all-guides.com RMC2108-670-HS User Manual Version 1.0...
- Page 2 All manuals and user guides at all-guides.com Content Manual Structure Foreword Chapter 1 Chassis Overview Chapter 2 Easy Installation Instruction Chapter 3 Chassis Parameters Shenzhen Gooxi Hengyu Technology Co., Ltd...

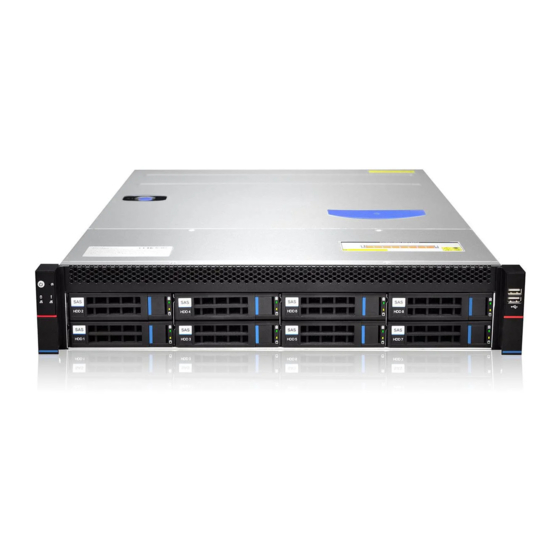

- Page 3 Internet bar server, database server, VOD storage server, HPC server, and so on. The server chassis is different from ordinary desktop chassis that pays more attention to appearance design, as it focuses on the quality and content. Gooxi RMC2108-670-HS server chassis uses imported first-class SGCC galvanized steel,...
- Page 4 Chapter 1 Chassis Overview Chassis Structure ⑴ Base ⑵ Rear window ⑶ Ventilation wall ⑷ Hard disk module ⑸ Front cover ⑹ Top cover ⑺ Handle ⑻ Hard drive bracket ⑼ Fan 1.2 Rear Window Construction Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 5 16 pieces of #6-32*6mm cross recessed pan head screws are used for fastening the motherboard and power supply. 0～7 SAS - label. One 100 * 120 * 0.045mm PE valve bag. 1.4 Chassis View Front view: Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 6 The above picture shows the front panel buttons and LED indicators; each button or indicator light has its own function and status description that are described in the following table: LED Status Description Picture LED Appearance Description Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 7 2*USB2.0 interface ⑧ 1.6 Introduction to Hard Disk Indicator ActLED Fault LED StatusLED 1、 Act LED 2、 FaultLED 3、StatusLED 4、LED description is as follows： Function Act LED Fault LED Status LED Hard disk at site Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 8 Hard disk fault RAID Flash 1Hz/s reconstruction 1.7 Brief Introduction to Backplane The standard configuration of Gooxi backplane model is RMC2108-BP-12G, and the specific description is as follows: RMC2108-BP-12G Correspo Corresponding nding Interface / jumper / slot Interface / jumper / slot...
- Page 9 All manuals and user guides at all-guides.com Chapter 2 Easy Installation Instruction 2.1 Introduction to the Disassemble Steps of Gooxi 2108 Chassis Cover ⑴ Unscrew the top cover screws ⑵ Press the button of chassis back cover ⑶ Push the back cover...
- Page 10 ⑴ Press the button to pull out the hard disk from the hard disk site. (2) Install the 3.5-inch hard drive to the hard drive bracket according to screw holes, as shown in the figure below. Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 11 All manuals and user guides at all-guides.com (3) The installed hard disk is shown in the following figure: (4) Insert hard disk to the chassis, and close the switch. As shown in the following figure. Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 12 All manuals and user guides at all-guides.com Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 13 (2) Install the power to the chassis according to the correct position, and then screw on the power supply screws at the position marked below. (3) Fix the power supply bracket, and screw on the screws at the position marked in Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 14 All manuals and user guides at all-guides.com the figure below. (4) Insert the hot-swappable power modules PSU1 and PSU2, respectively (5) The final installation effect of power supply. Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 15 All manuals and user guides at all-guides.com 2.4 Introduction to the Installation Steps of Motherboard on Gooxi 2108 Chassis (1) Open the chassis, and place insulation pad according to the correct orientation. Based on the hole of motherboard screw, motherboard active stud (8mm height) is installed at the corresponding position on the insulation pad.
- Page 16 All manuals and user guides at all-guides.com below: 2.5 Introduction to the Installation Steps of Expanding Hard Disk on Gooxi 2108 Chassis 2.5.1 Installation Steps of Two 2.5-inch Non-Hot Swappable Hard Disks (1) Remove the screws marked at the following figure, lift the top cover and remove it.
- Page 17 (2) Fix the two 2.5 inch hard disks with expandable bracket, respectively (3) The final installation effect is as follows (4) Install the expandable hard disk to the chassis, as shown in the figure below: Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 18 (6) Restore the front cover when the expandable hard disk is finished installation 2.5.2 Installation Steps of Two Rear 2.5-inch Hot-swappable Hard Disks ⑴ Install 2.5-inch hot-swappable hard drive module, as shown in the figure below: Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 19 All manuals and user guides at all-guides.com (2) Install two 2.5-inch hard drives on the hard disk box, respectively (3) Insert two 2.5-inch hard drives to the rear hard disk module, respectively Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 20 All manuals and user guides at all-guides.com (4) Finished installation effect is shown as follows: Note: If customer selects two optional 2.5-inch hot-swappable hard drives, then CRPS power of Gooxi style should be equipped with. Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 21 2 network indicators Free screws dismantle Support Fixed mode of cabinet Ordinary Configuration parameters Product material Imported SGCC (galvanized steel sheet), ABS panel and punching net Chassis dimension 670*444*87.6mm(Depth * width * height) Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 22 902*591*228mm(Length * width * height） Overall gross weight 16KG Safety certification CE、FCC、RoHS Note: This manual is a general instruction of RMC2108-670-HS series. Specific parameters of each type please refer to the chassis detailed parameters. Shenzhen Gooxi Hengyu Technology Co., Ltd...
