2.2.8 VGA 显示接口
VGA display connector
主板的显卡芯片采用 AST2400， AST2400 内置 PCIE VGA Controller， 一个 15PIN 的 VGA
Connector 用来接入 VGA 显示器，输出主机信息，位置示意图如下：

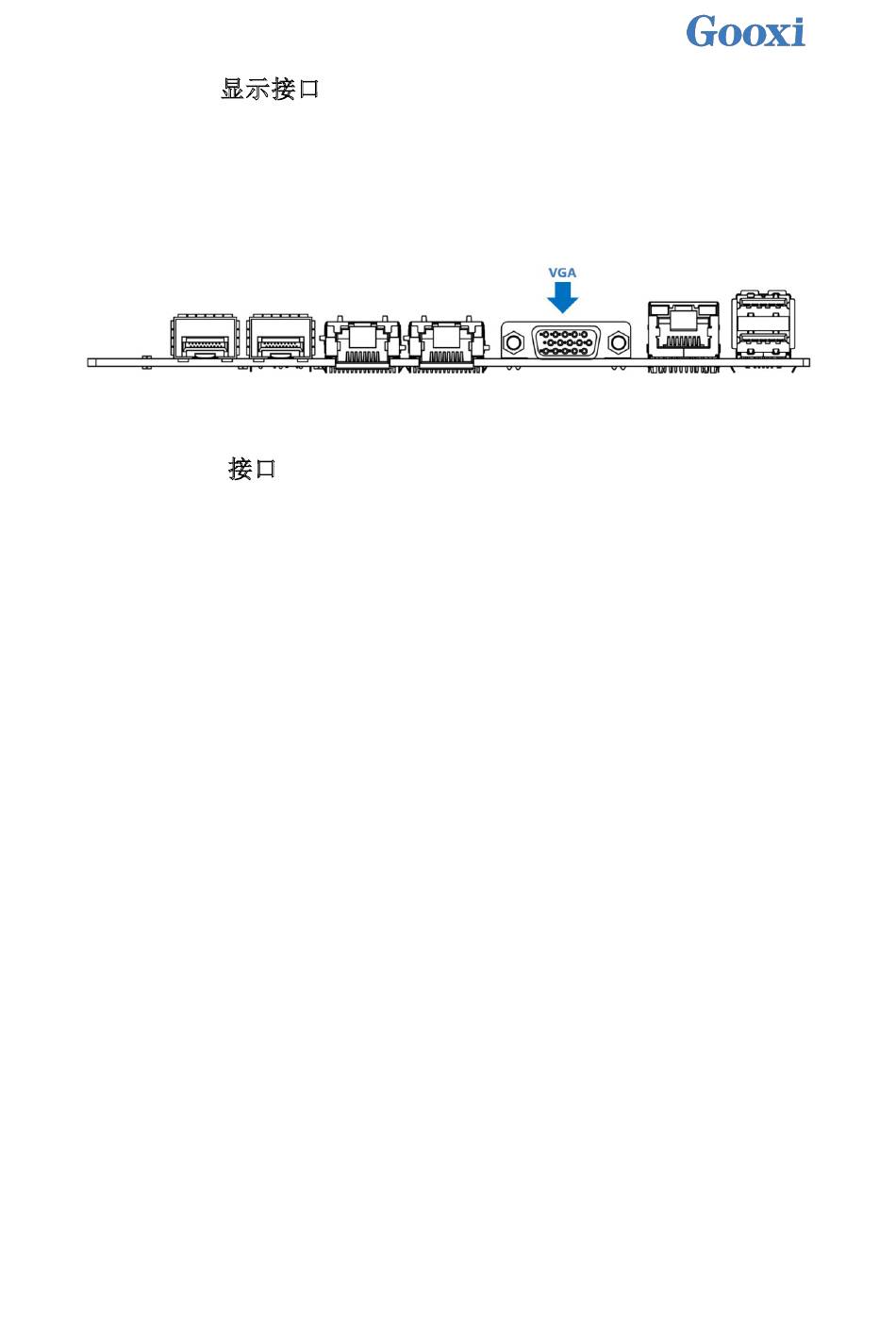

The AST2400 chip with a built-in PCIE VGA Controller is used as the display card chip of
the motherboard. The 15PIN VGA Connector is used to connect the VGA display and output the
information of host. The location of the VGA connector is shown in the following schematic
diagram.
* 图片仅供参考
* This schematic diagram is for reference only.
2.2.9 SATA 接口
SATA connector
该主板设计 4 个 SATA3.0Connector，全部来自 Intel PCH 位置示意图如下：
The motherboard is designed with 4 SATA3.0 Connectors all of which are from Intel PCH.
Locations of these connectors are shown in the following schematic diagram.
