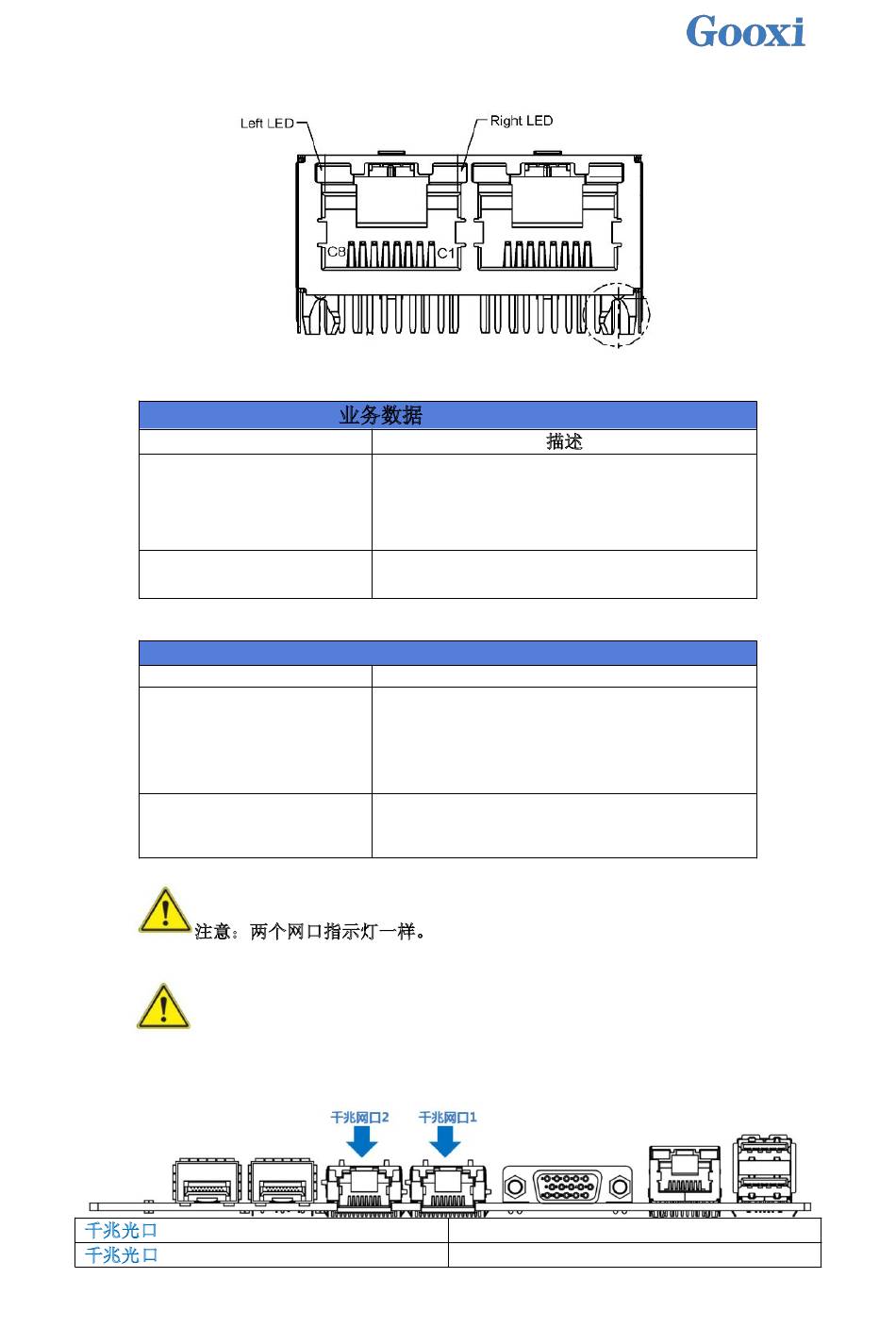

following schematic diagram.
LED
Left Led
Right Led
LED
Left Led
Right Led
注意：两个网口指示灯一样。
Note: Indicators of these two ports are the same.
网口位置示意图：
Schematic diagram for locations of these ports:
千兆光口 1
千兆光口 2
深圳市国鑫恒宇科技有限公司 Shenzhen Guoxin Hengyu Technology Co., Ltd.
深圳市国鑫恒运信息安全有限公司
业务数据 LAN Port Led
为 Link 状态指示灯：
1.千兆 Link，绿色长亮；
2.百兆 Link，橙色长亮；
3.十兆 Link, LED 不亮；
当有数据活动时，黄色指示灯闪烁；
当没有数据活动时，该指示灯不亮；
Business Data LAN Port Led
Indicator of Link status:
1. Under 1Gbps Link, the green light keeps on;
2. Under 100Mbps Link, the orange light keeps
on;
3. Under 10Mbps Link, the LED indicator is off.
In case of a data activity, the yellow indicator
will flash.
In case of no data activity, the indicator is off.
1Gbps optical port1
1Gbps optical port2
描述
Description
