Required materials
•
9/32-inch nut driver
•
Flat-blade screwdriver
•
Connector
•
Signal cable

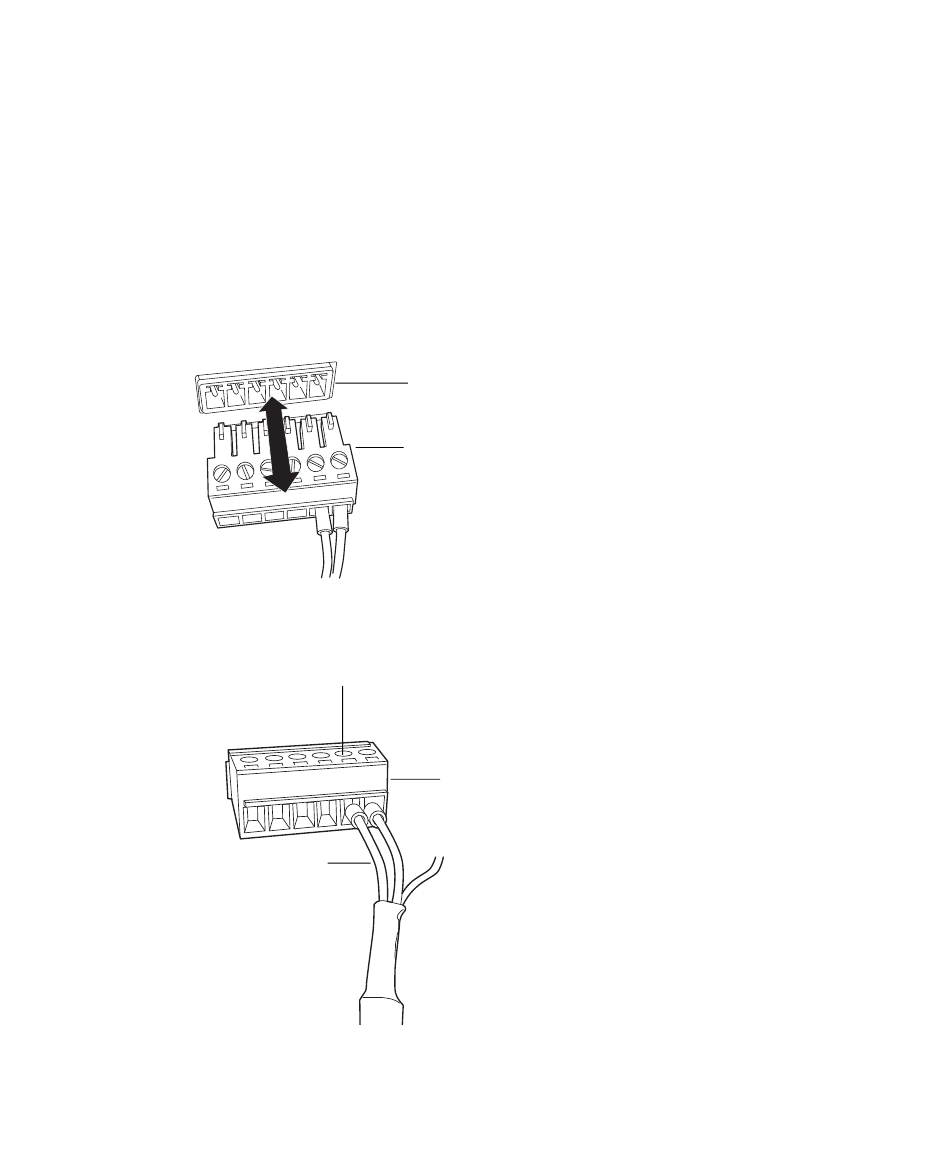

To make signal connections:
1.
Insert the connector into the connector port on the back of the system
module.
2.
Using the flat-blade screwdriver, attach the positive and negative leads
of the signal cable to the connector.
Signal cable
B-6
External Connections
Connector port
Connector
Screw
Connector
