Waters ACQUITY UPLC I-Class System Manual page 39

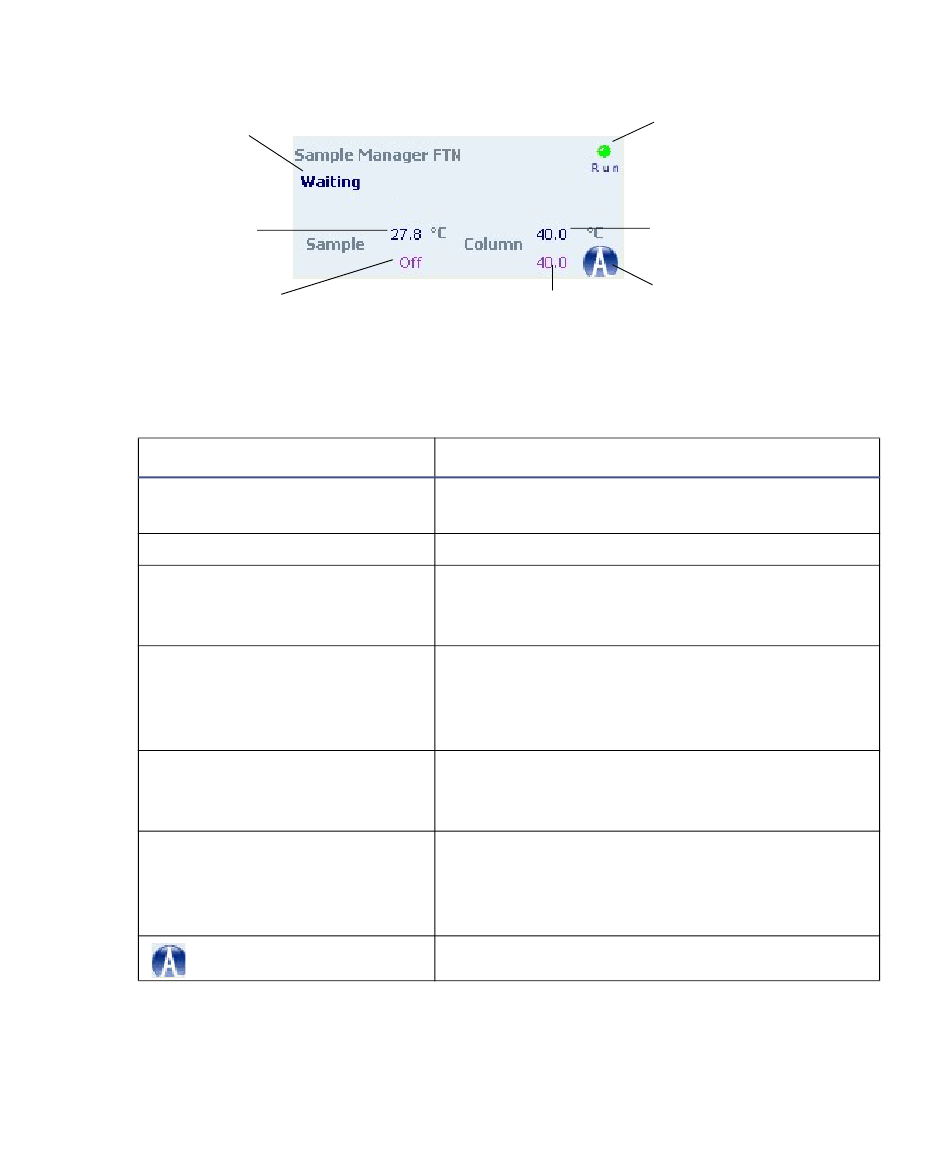

Sample manager control panel:
Status
Current sample
compartment
temperature
Sample
compartment set
point
The following table describes the items in the sample manager's control panel.
Sample manager control panel items:
Control panel item
Run LED
Status
Current Sample
Compartment Temperature
Sample Compartment Set
Point
Current Column Heater
Temperature
Column Heater Set Point
(Display Console)
Column heater set
point
Description
Displays the actual run LED on the front
panel, unless communications are lost.
Displays the status of the current operation.
Displays the current sample compartment
temperature, to 0.1 °C resolution, even when
active temperature control is disabled.
Displays the current sample compartment
set point, to 0.1 °C resolution. When active
temperature control is disabled, this field
displays "Off".
Displays the current column heater
temperature to 0.1 °C resolution, even when
active temperature control is disabled.
Displays the current column heater set point,
to 0.1 °C resolution. When active
temperature control is disabled, this field
displays "Off".
Displays the ACQUITY UPLC Console.
ACQUITY control panels
Run LED
Current column heater
temperature
Display ACQUITY UPLC
Console
3-9
