Waters ACQUITY UPLC I-Class System Manual page 59

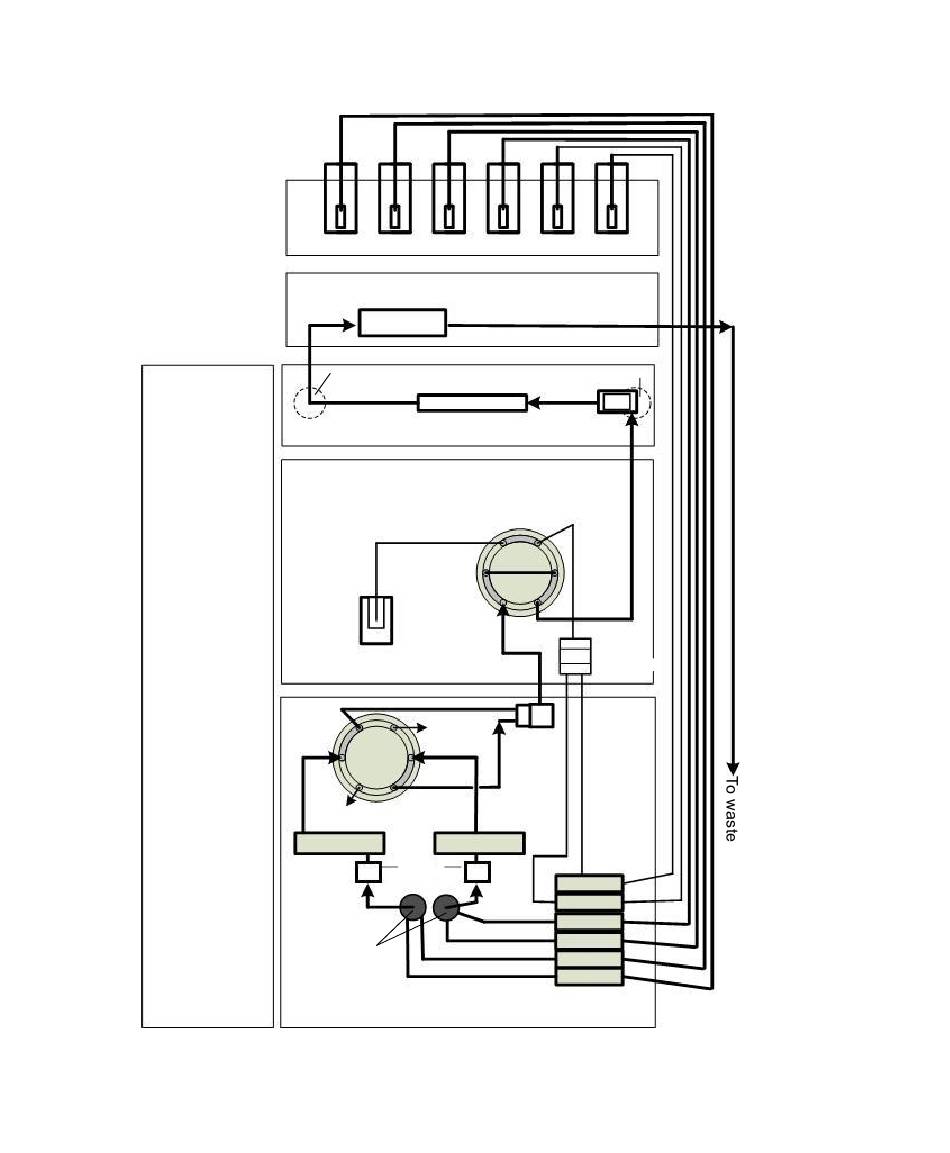

Solvent flow for ACQUITY UPLC I-Class system configured with an SM-FL:
Solvent tray
Detector
Column heater or manager
Sample Manager - FL
Needle
Wash
port
Sample
organizer
Waste
Pump A
Solvent
selection
valves
Binary solvent manager
A1 A2
B1 B2
BSM solvents
Flow cell
Valve
Column
To waste
Sample
Injector
loop
valve
Waste
Vent
valve
Pump B
Filters
A B
SM wash solvents
Valve
APH
Sample
syringe
Wash
manifold
Mixer
SM WS
SM WS
B2
B1
A2
A1
Degasser
Block
System tubing connections B-3
