Oil and oil filter change

Oil system
Procedure
Step
1
2
3
4
5
6
7
8
9
10
94

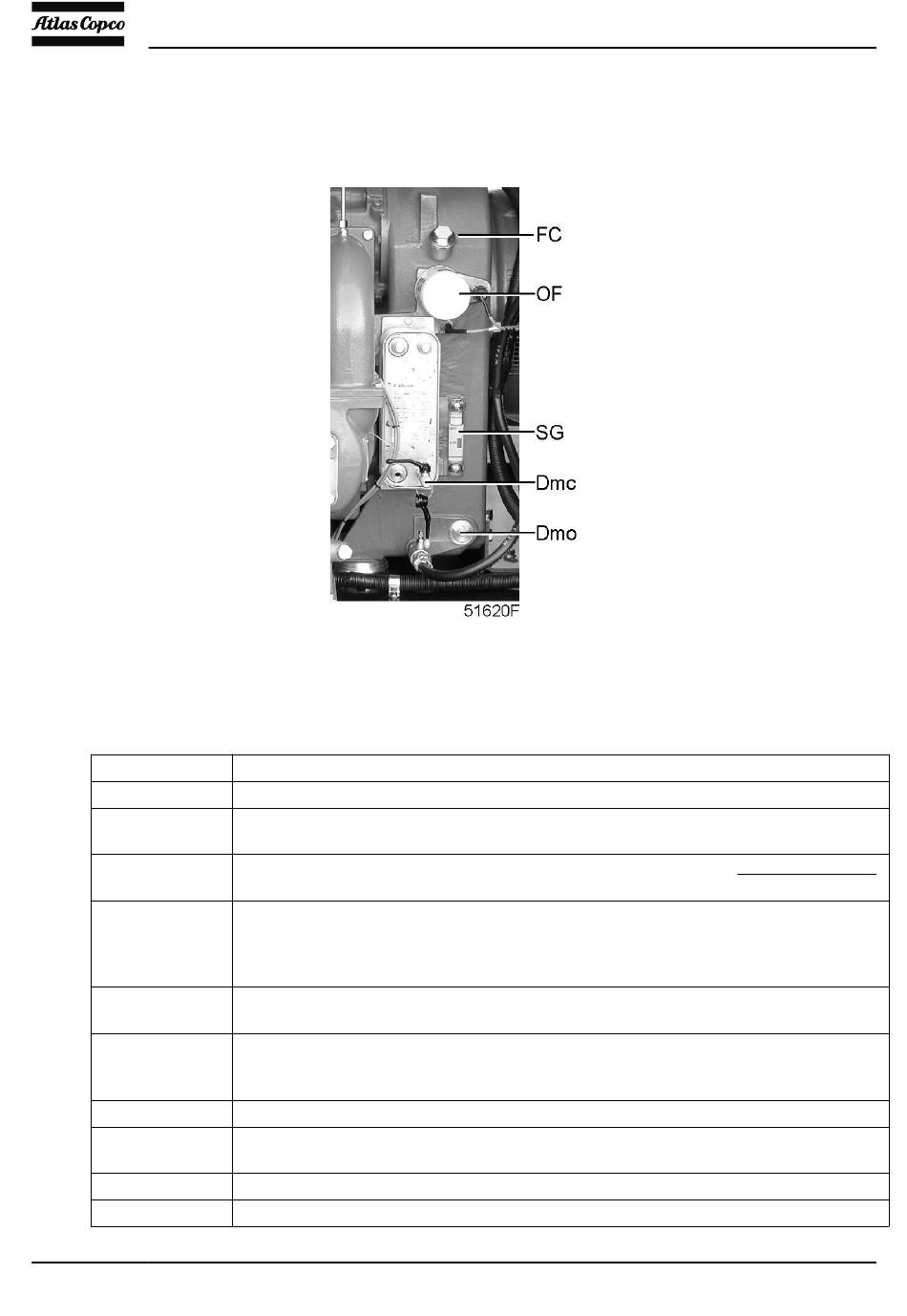

Oil system components, ZR 110 up to ZR 275
Action
Run the compressor until warm.
Stop the compressor.
Press the emergency stop button.
Switch off the voltage and follow the LOTO procedure. (Refer to the Safety Precautions
before acting.)
The filler plug and drain points are painted yellow.
Remove filler plug (FC). Drain the compressor sump by opening drain valve (Dmo).
On ZR compressors, drain the oil cooler by opening drain valve (Dmc).
Close the drain valves and tighten the drain plugs after draining.
Remove the oil filters (OF). Clean the filter seats, oil the gaskets of the new filters and
screw the filters into place until the gaskets contact the seats. Then tighten by hand.
On ZR 110 up to ZR 275, fill the compressor sump to the middle of the oil level sight-
glass (SG).
See Oil specifications for the correct type of oil.
Reinstall the filler plug.
Switch on the voltage.
Unlock the emergency stop button and reset the oil and oil filter service warnings.
Run the compressor for a few minutes.
Stop the compressor.
