Instruction book
7

Servicing procedures

7.1

Air filters

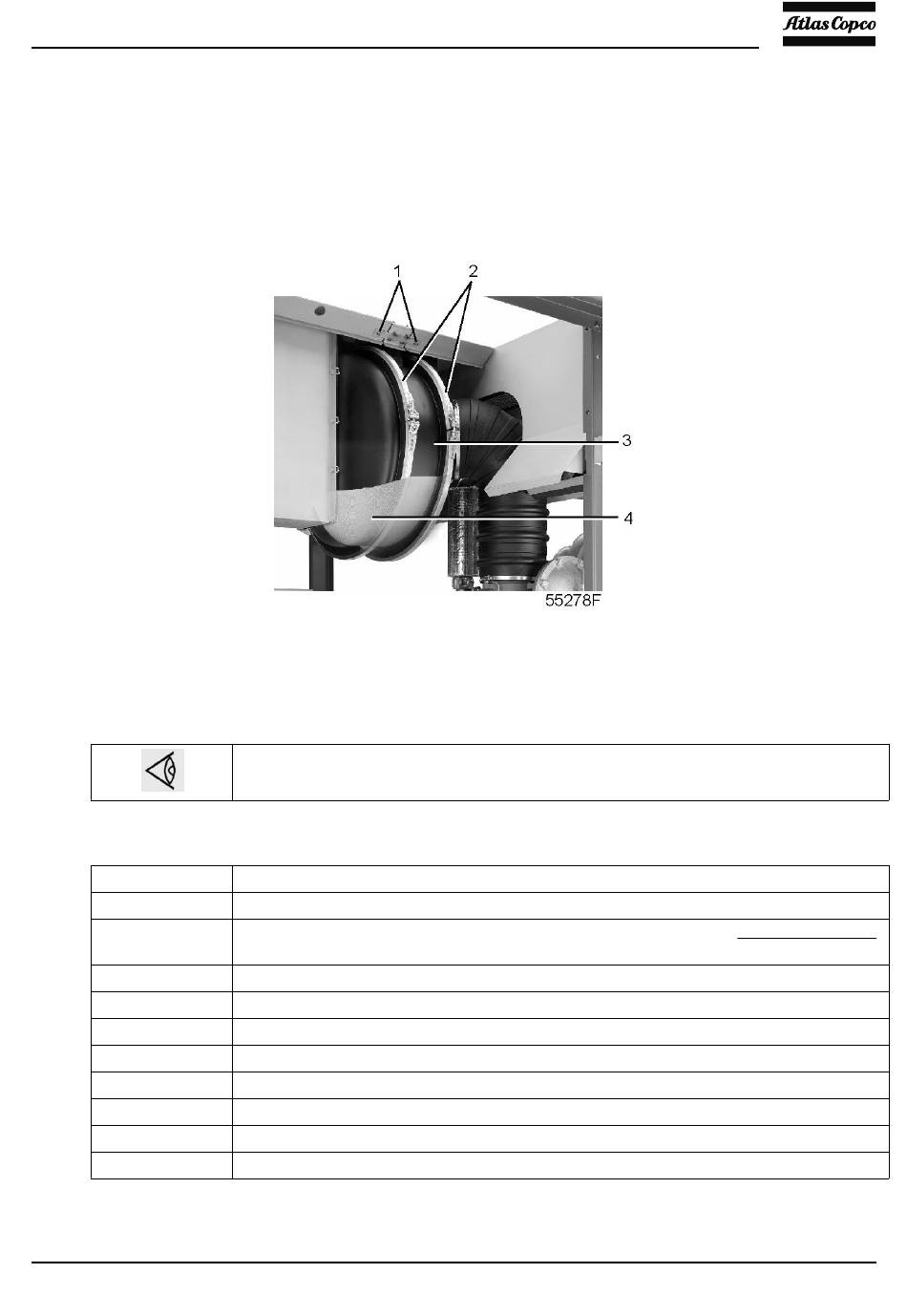

Location of the air filters
Procedure
Procedure for ZR/ZT 110 up to ZR/ZT 275 and ZR/ZT 132 VSD up to ZR/ZT 315 VSD
Step
1
2
3
4
5
6
7
8
9
10
AIF999999
Air filter of ZR/ZT 110 up to ZR/ZT 275
The filters must be serviced regularly; consult section
Never install damaged or clogged filters.
Action
Stop the compressor and press the emergency stop button.
Switch off the voltage and follow the LOTO procedure. (Refer to the Safety Precautions
before acting.)
Remove nuts (1).
Loosen clamps (2).
Take out filter housing (3) with filter element (4).
Replace the dirty filter element with a new one.
Put the filter housing with the filter element back into place.
Tighten clamps (2) and nuts (1).
Switch on the voltage.
Unlock the emergency stop button and reset the air filter service warning.
Preventive maintenance schedule.
93
