Data menu

Function

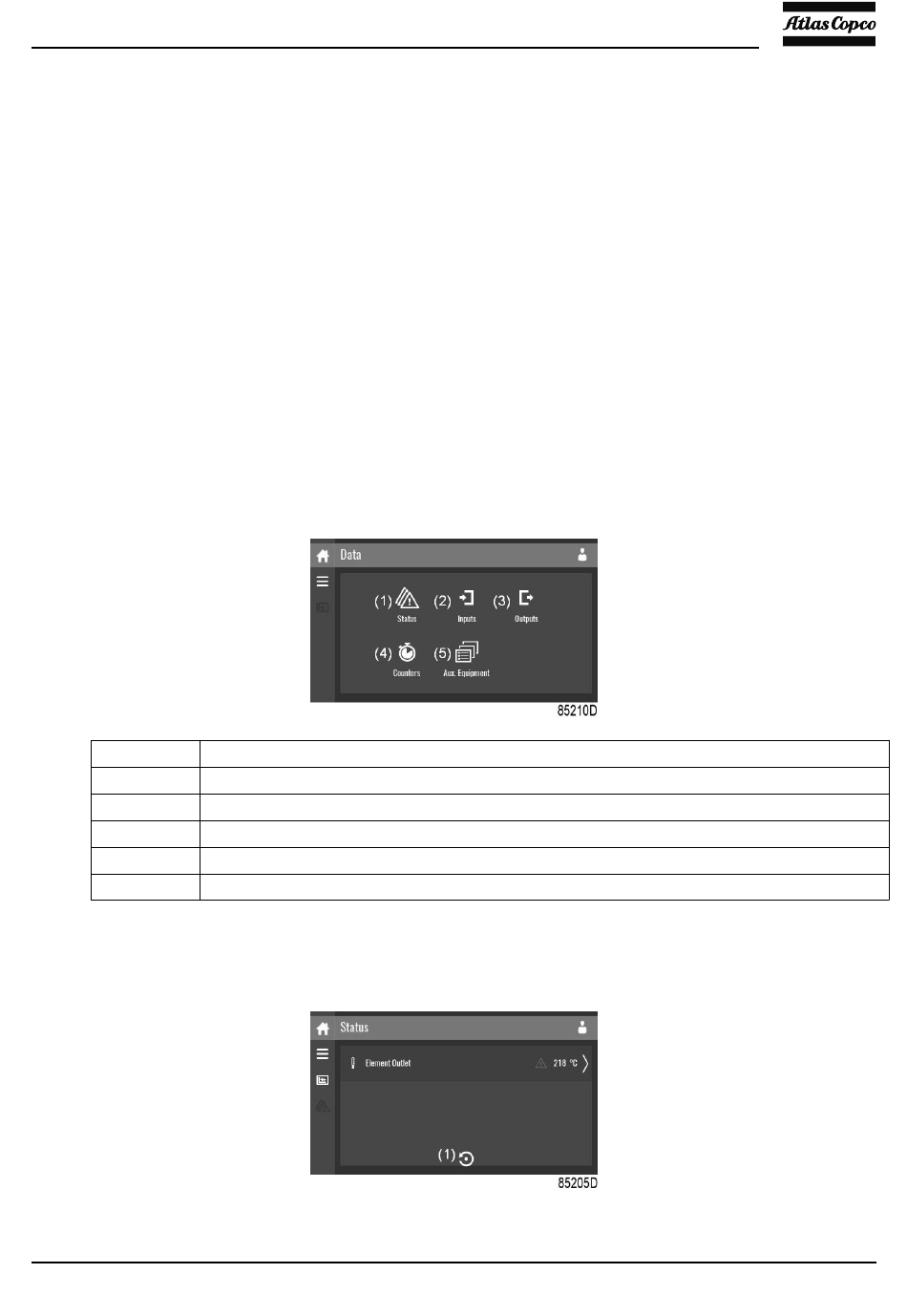

This screen is used to display the following submenus:
• Status
• Inputs
• Outputs
• Counters
• Aux. Equipment
These submenus can be entered by tapping the icons.
Procedure
To enter the Data menu screen:
1. Tap the Menu button
2. Tap the Data icon
Description
Reference
(1)
(2)
(3)
(4)
(5)
Status menu
Tap the Status icon to enter the Status menu.
This menu shows the current status of the unit.
AIF999999
Designation
Status menu
Inputs menu
Outputs menu
Counters menu
Auxiliary equipment menu
