Function
Setpoints
Control mode
Display language
Manual unload (only
on fixed speed units)
Week timer
Remaining running
time
Internal SmartBox
Auto restart
3.6

Menu screen

Function

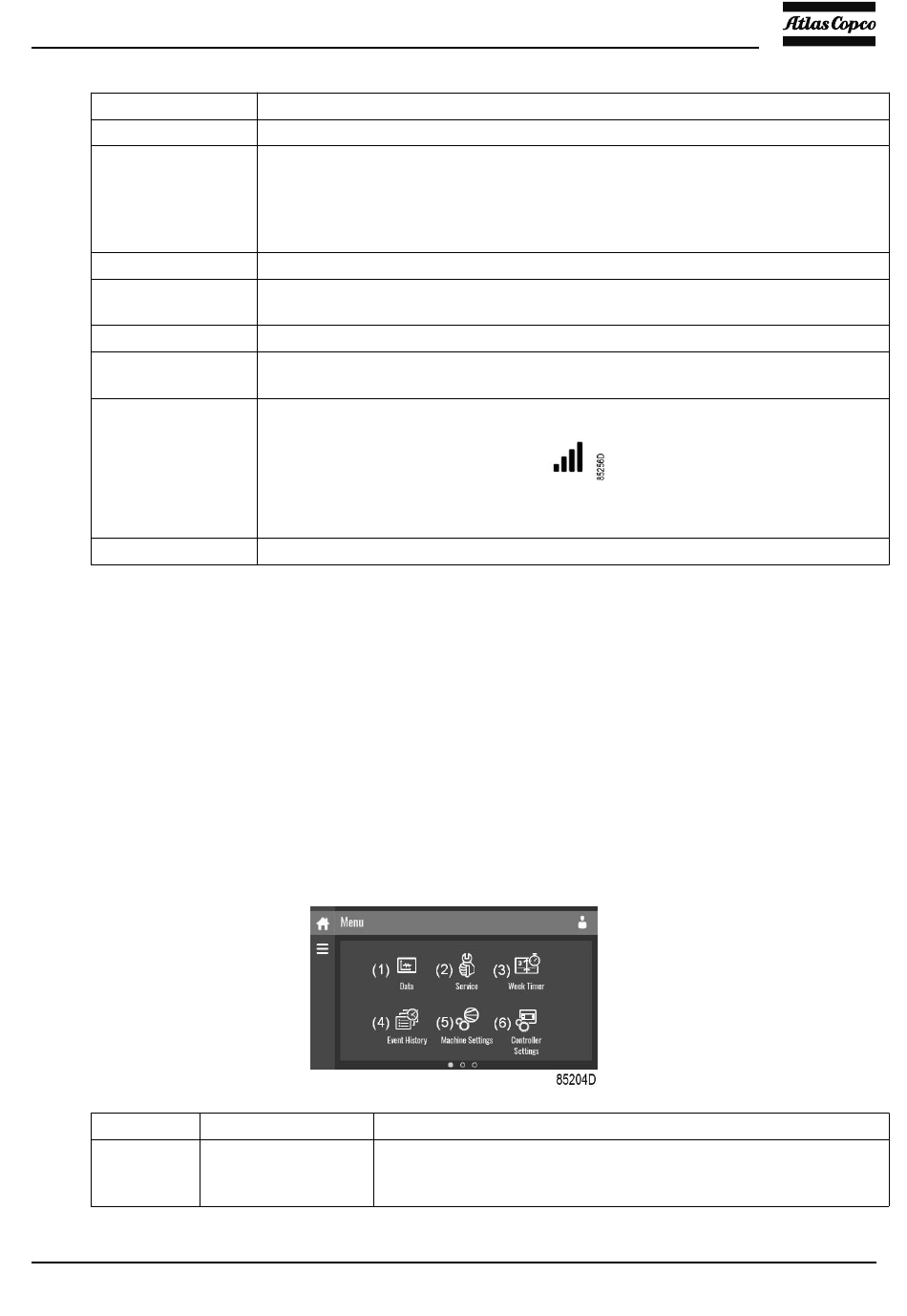

This screen is used to display the different menus where settings can be viewed or changed.
Procedure
The Menu screen can be viewed by tapping the Menu button or by swiping right, starting from the
main screen.
Description
Reference
(1)
AIF999999
Description
Several setpoints can be modified by tapping this icon.
The control mode can be changed by tapping this icon.
• Local control via start/stop buttons
• Remote control via digital input(s)
• LAN control via the network.
When in Remote or LAN control, the start/stop buttons on the controller will not work.
The display language of the controller can be changed by tapping this icon.
When tapped, the machine will go in Manual unload mode until the icon is tapped
again.
Week timers can be set by tapping this icon.
The Remaining running time can be set and modified by tapping this icon.
The reception quality of the internal antenna can be monitored.
Each bar represents 25% reception strength. If the four bars are filled, the reception
strength is 100%. If only one bar is filled, the reception strength is just 25%.
Auto restart can be activated by tapping this icon.
Designation
Data
Function
The data menu contains the status of the unit, information about the
Inputs, Outputs and Counters. The Auxiliary equipment can also be
viewed through this menu.
