Instruction book
2
General description
2.1
Introduction
General views
Ref.
AO
DRa
DRi
MK5
SVh
SVl
S2
WI
WO
This unit is a two-stage, electric motor driven screw compressor which delivers oil-free, pulsation-
free air.
ZR compressors are water-cooled.
The compressor is enclosed in a sound-insulated bodywork and includes mainly:
AIF999999

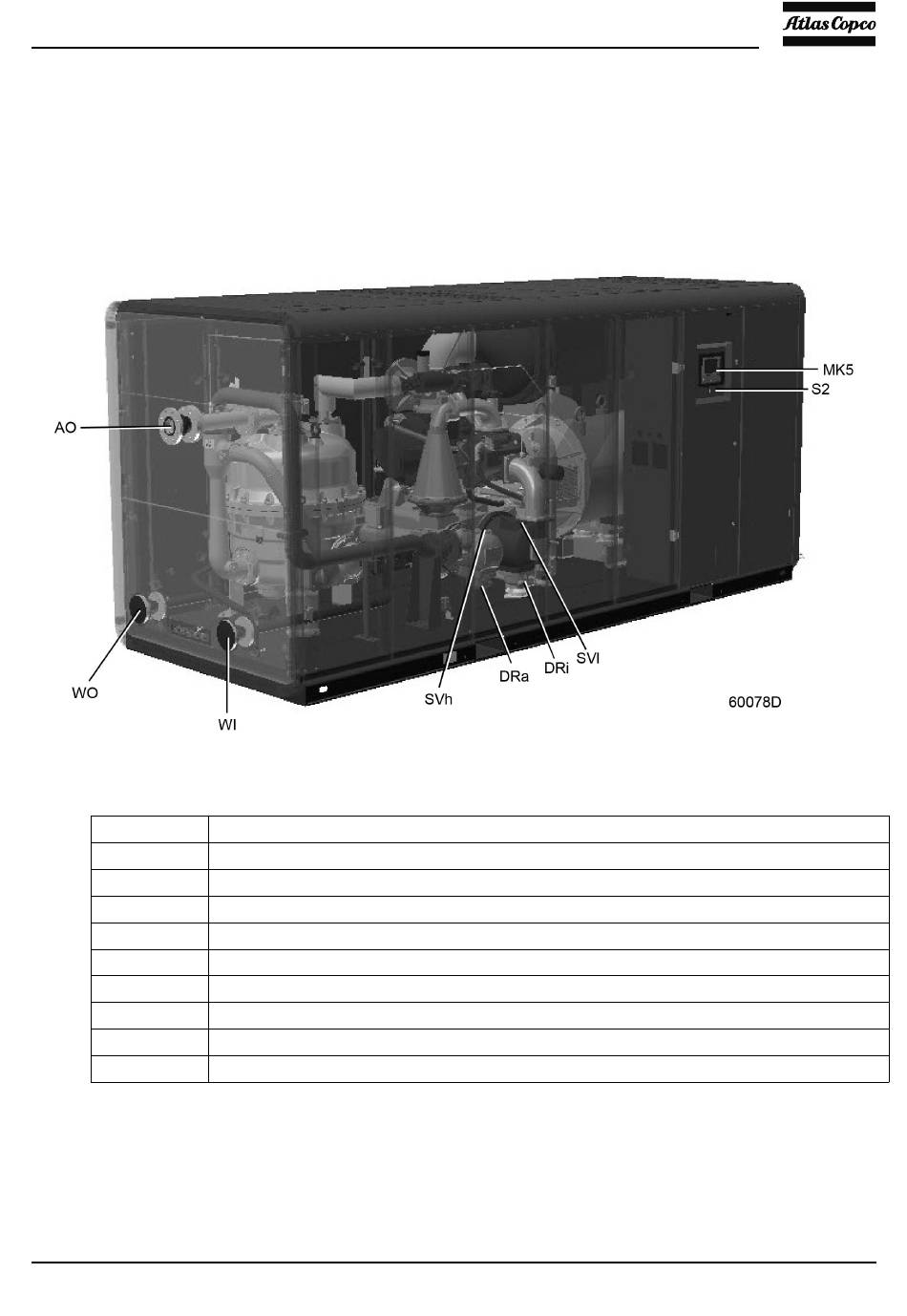

General view of ZR 160 up to ZR 275 FF
Name
Compressed air outlet
Condensate drain receiver, aftercooler
Condensate drain receiver, intercooler
Elektronikon Mk5–Touch regulator
Safety valve, high pressure
Safety valve, low pressure
Emergency stop button
Cooling water inlet
Cooling water outlet
11
