Control Panel - Atlas Copco ZR 200 Instruction Book

3.2

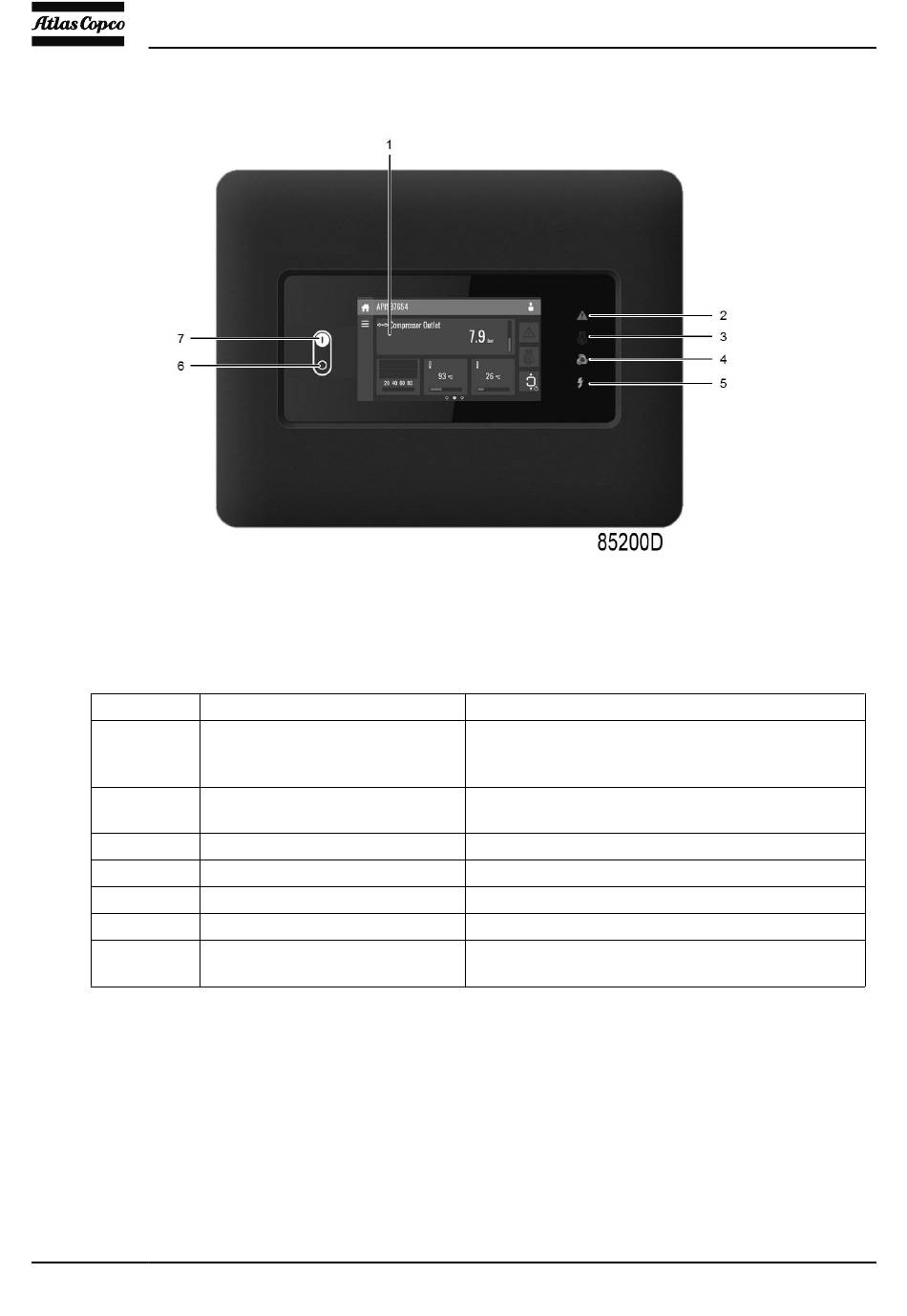

Control panel

Parts and functions
Reference
1
2
3
4
5
6
7
26
Designation
Touch screen
Warning sign
Service sign
Operation sign
Voltage sign
Stop button
Start button
Control panel
Function
Shows the unit operating condition and several icons
to navigate through the menu.
The screen can be operated by touch.
Flashes in case of a shut-down and is lit in case of a
warning condition.
Lit when service is needed.
Lit when the unit is running in automatic operation.
Indicates that power is switched on.
Stops the unit.
Starts the unit. The operation sign (4) lights up. The
controller is operative.
