Situation
A
Flat DIN flanges prevent damage of the rubber sealings.
B
Collared flanges prevent premature wear.
C
Add a flat sealing or if necessary a metal disc with flat seal in case of damage risk.
D
Avoid excessive torque to prevent damage to the bended pipes or the sealings.
Rubber sealings will get damaged when the inner pipe diameter exceeds the inner sealing
E
diameter.
F
Rough pipe ends will damage the rubber sealing.
G
Avoid contact between the pipe end and the rubber sealing.

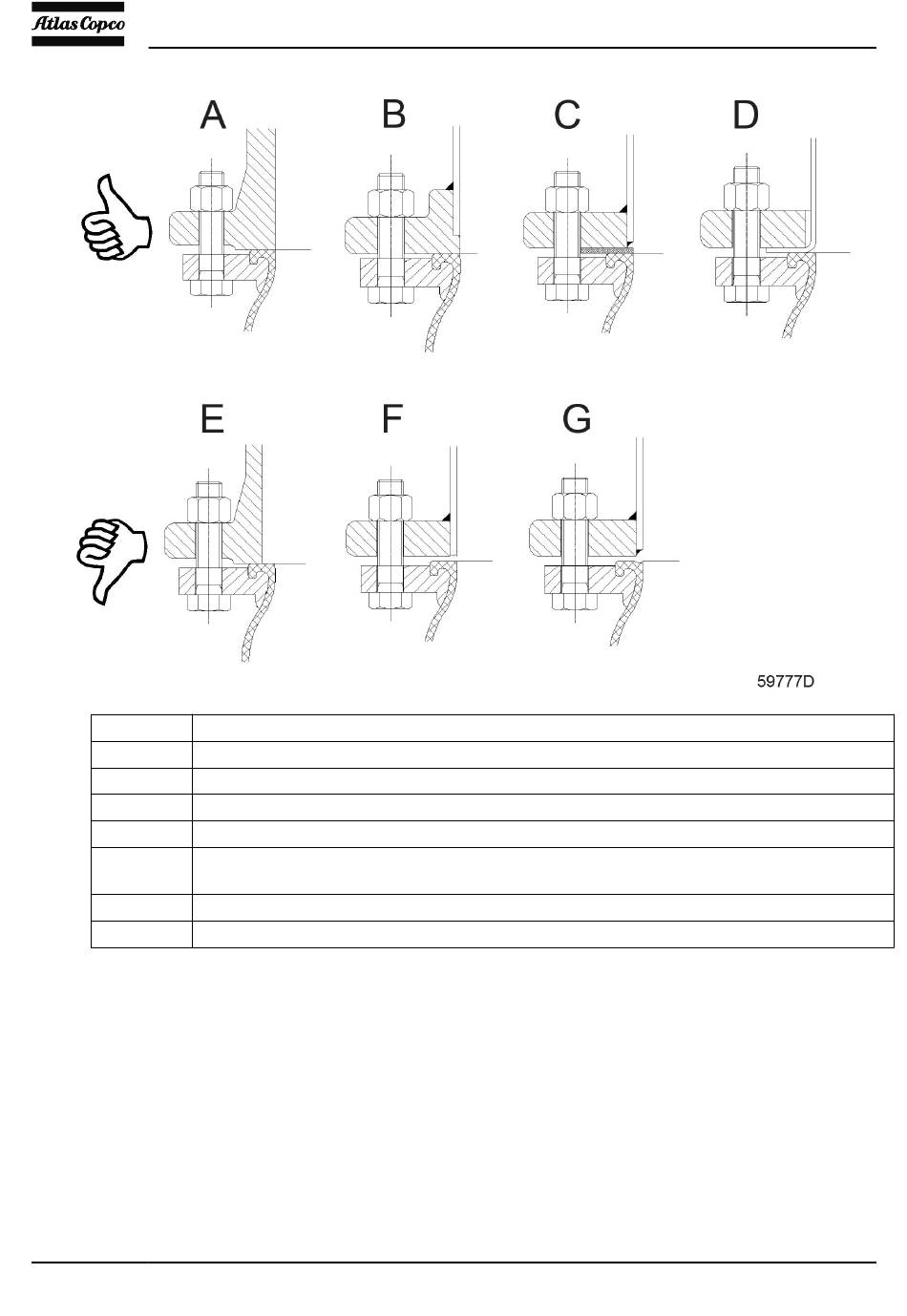

Refer to the pictures below for a visual overview of 5 do's and don'ts when installing rubber compensators:
• WRONG installation!
