Interfaces
4.5

Inputs CT1...4

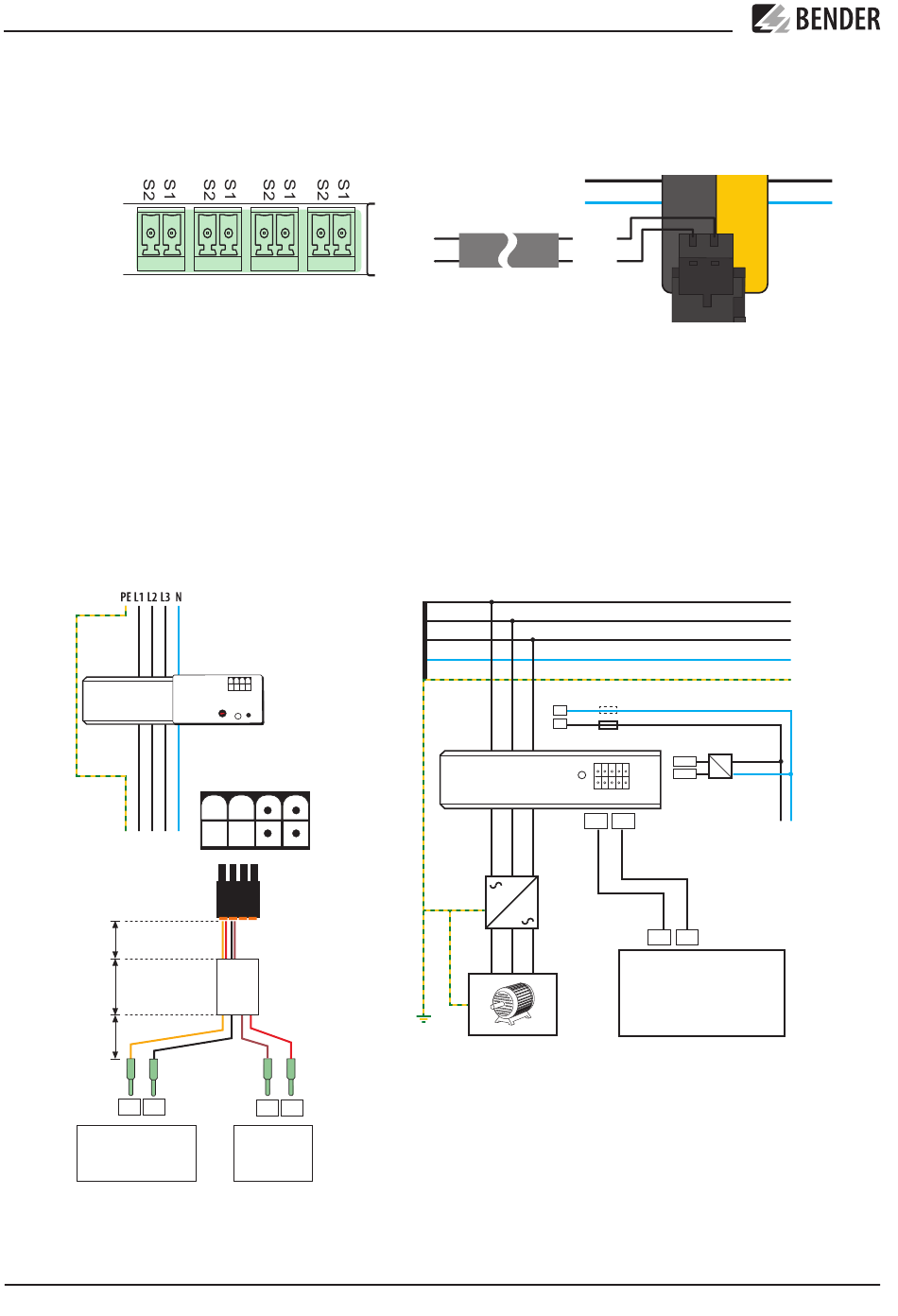

4.5.1 Measuring-current-transformer connection

CT1
i
Ensure that the measuring-current transformers are connected correctly. Terminal S1
must be connected to terminal "S1" (k) of the measuring-current transformer. Terminal
S2 must be connected to terminal "S2" (l) of the measuring-current transformer.
i
For further information on the connection of measuring-current transformers, refer to
the corresponding manuals of the measuring-current transformers. The installation in-
structions specified there must be observed.
CTBCx
50 mm
1 m
2,5 m
5 m
10 m
250 mm
S1 S2
RCMS410
26 RCMS410_D00424_00_M_XXEN / 09.2022
RCMS410
CT2 CT3 CT4
CTUB102
S1(k) S2(l)
24V GND
CTXS-...
24V GND
DC 24 V
"Type B/type B+" transformer
Measuring-current transformer
S2 S2(l)
S1 S1(k)
"Type A/type F" transformer
N
L
CTBS25
3
S1(k) S2(l)
F 6 A
DC 24 V
AC
24 V
GND DC
S1 S2
S1 S2
RCMS410
L1
L2
L3
N
