DIN rail mounting
Mounting
1.
Click!
2.

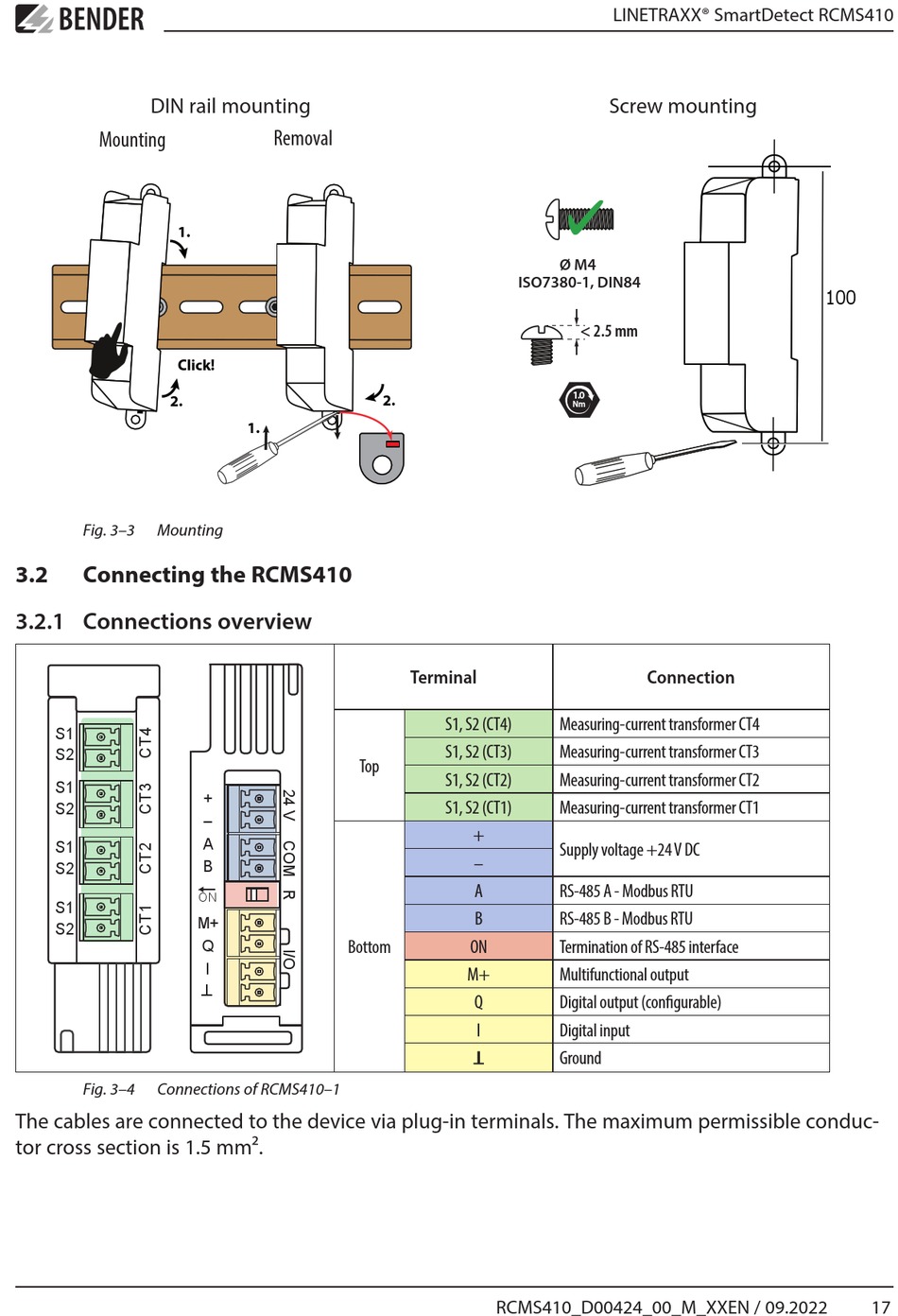

Fig. 3–3 Mounting
3.2

Connecting the RCMS410

3.2.1 Connections overview

S1
S2
S1
S2
S1
S2
S1
S2
Fig. 3–4 Connections of RCMS410–1
The cables are connected to the device via plug-in terminals. The maximum permissible conduc-
tor cross section is 1.5 mm².
Removal
1.
Top
+
–
A
B
ON
M+
Q Bottom
I
ISO7380-1, DIN84
2.
Terminal
S1, S2 (CT4)
S1, S2 (CT3)
S1, S2 (CT2)
S1, S2 (CT1)
+
–
A
B
ON
M+
Q
I
RCMS410_D00424_00_M_XXEN / 09.2022
LINETRAXX® SmartDetect RCMS410
Screw mounting
Ø M4
< 2.5 mm
1.0
Nm
Connection
Measuring-current transformer CT4
Measuring-current transformer CT3
Measuring-current transformer CT2
Measuring-current transformer CT1
Supply voltage +24 V DC
RS-485 A - Modbus RTU
RS-485 B - Modbus RTU
Termination of RS-485 interface
Multifunctional output
Digital output (configurable)
Digital input
Ground
