Permanently low: The output is permanently set to GND. In this manner e. g. an additional refer-
ence for the digital input can be created.
Alarm assignments permit assigning the following alarms to the output M+ in digital mode (reg-
isters 32504...32519):
Prewarning (AL1) AC/DC/RMS CH1...4
Main alarm (AL2) AC/DC/RMS CH1...4
CT-connection fault CH1...4
Overloading of the measuring channels
Device error
Test
The reload settings (number of connection attempts) are configured in registers 32520 and
32521.

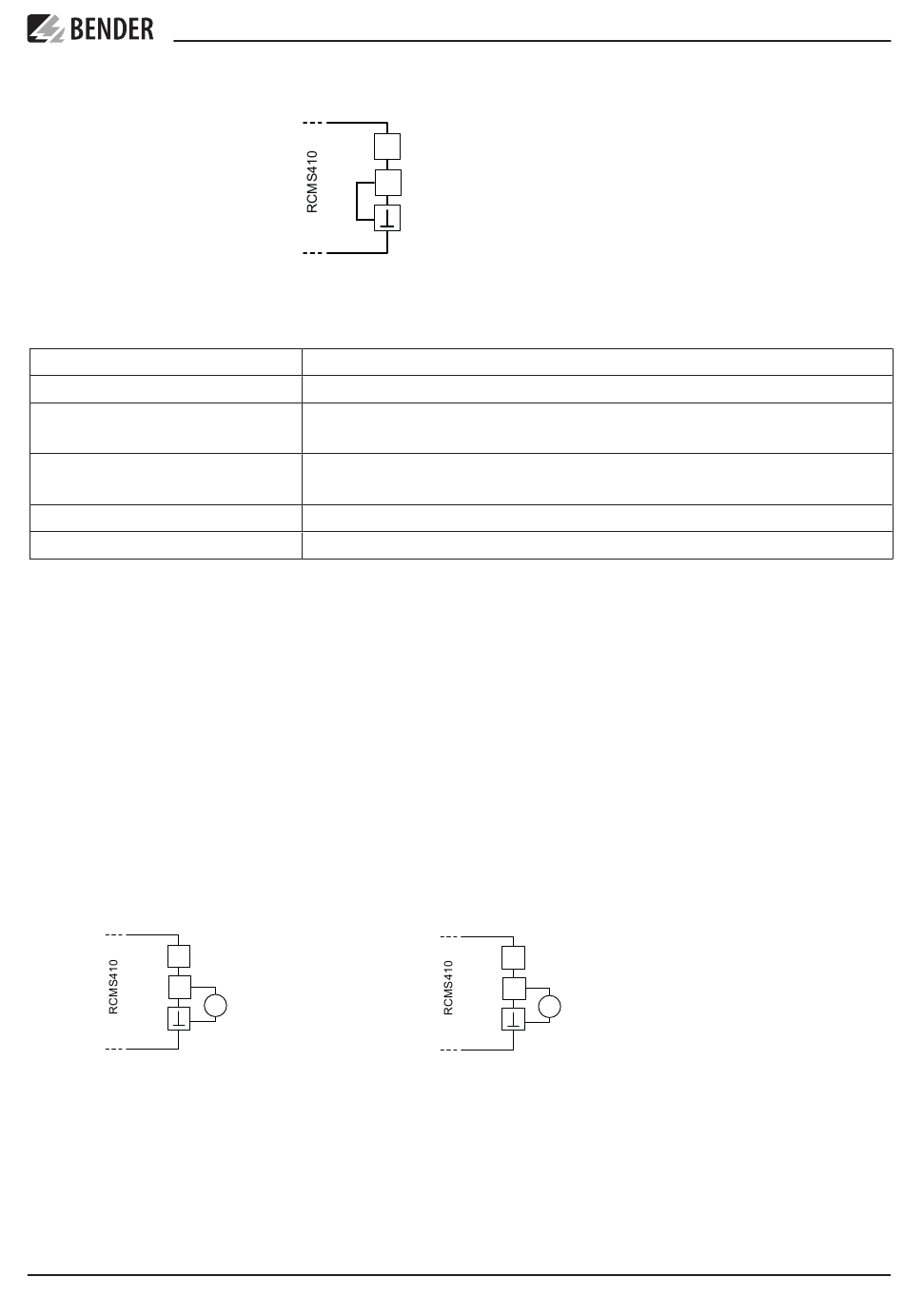

4.2.2 Analogue mode

Settings in registers 32500...32503
The RMS value of a channel (CH1...4) is allocated to M+ as analogue output. Here a DC voltage or
DC current signal that is proportional to the measured value is present at the output. The maxi-
mum scale value can be configured.
The following settings can be assigned:
Current output: 0-20/4-20 mA
(permissible load ≤ 600 Ω)
+
M+
The maximum scale value corresponds to I
+
M+
The output becomes active if AL1 of the selected measuring channel is present.
The output becomes active if AL2 of the selected measuring channel is present.
The output becomes active if a CT-connection fault (short circuit or interruption) of the selected
measuring channel is present.
The output becomes active if the measuring function no longer works properly since the residual current
is too high.
The output becomes active when a device error is present.
The output becomes active in the course of a manual self test in accordance with the test process.
Voltage output: 0-10/2-10 V
(permissible load ≥ 1 kΩ)
or
A
+
M+
V
or it can be set at will up to 5 x I
Δn RMS
