Interfaces
4.2

Output M+

M+ is a multi-functional digital analogue output with reference to GND of the measuring sensor's
supply voltage.

4.2.1 Digital mode

Settings in registers 32500...32501

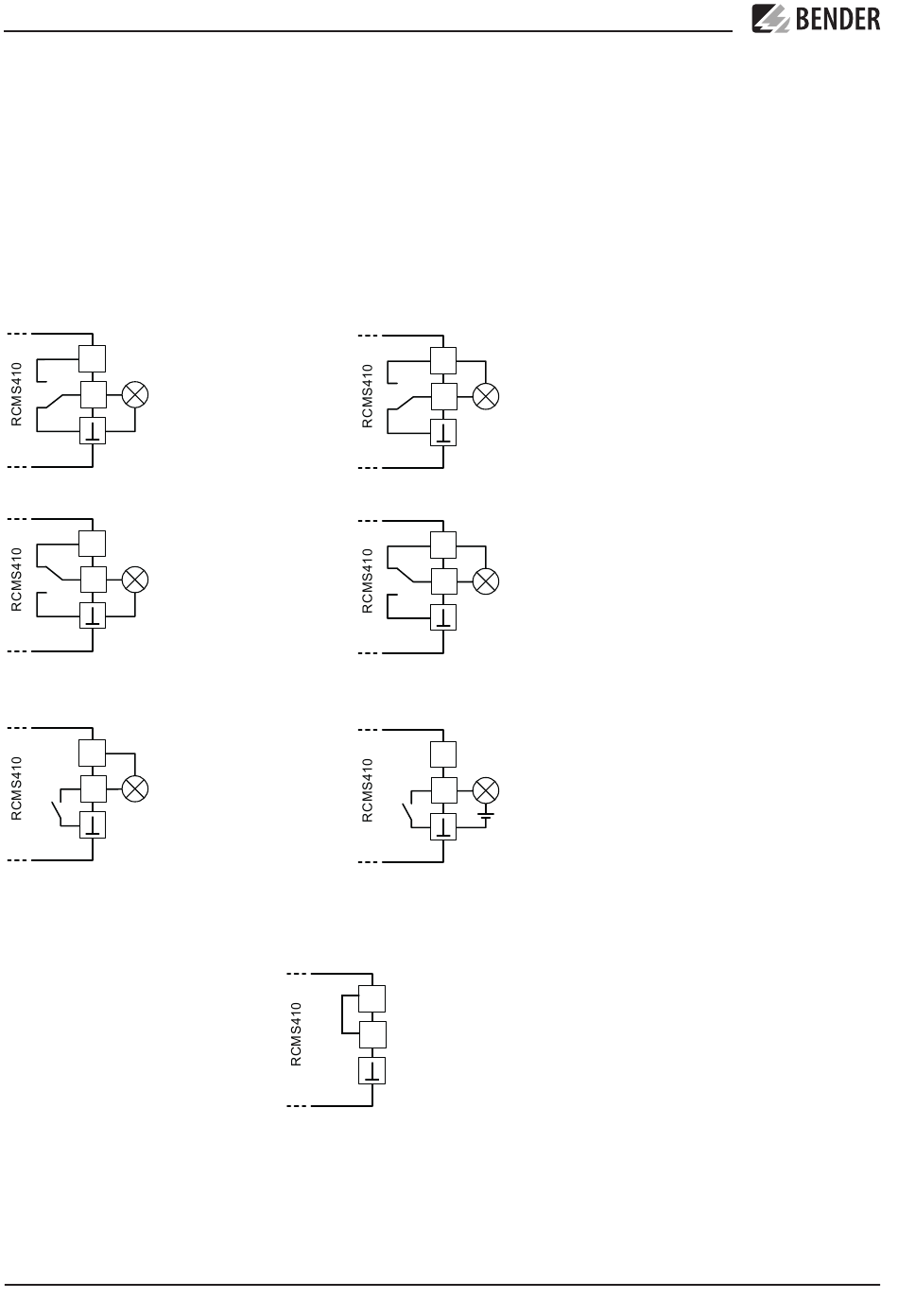

The following settings can be assigned to the output M+ in digital mode:
High-active: In the active mode +24 V are applied to output M+ internally.
+
M+
Low-active: In the active mode the GND potential is applied to output M+.
+
M+
In the passive mode ≤ 32 V are connected externally (see technical data). The output switches the
applied potential to GND.
+
M+
internally
Permanently high: The output is permanently set to +24 V. In this manner e. g. an additional ref-
erence for the digital input can be created.
20 RCMS410_D00424_00_M_XXEN / 09.2022
or
or
or
+
M+
+
M+
+
M+
+
M+
externally
I = 100 mA
in max
