4.4

Digital input I

Settings in registers 32000...32001
The digital input "I" can read the status of a potential-free contact.
i
Only voltages up to 3 V may be applied to input "I".
The digital input "I" can trigger either a test, a reset or the combined function T/R (register 32301).
As with the test and reset function, the combined function T/R is located at the T/R-button at the
front. The ON LED, too, behaves in an identical manner.
Closing the contact and opening it within 1...3 s.
Closing the contact and opening it within 3...6 s
Closing the contact and not opening it again (faulty contact)
i
The NFC or address setting mode functions are not activated via this input.

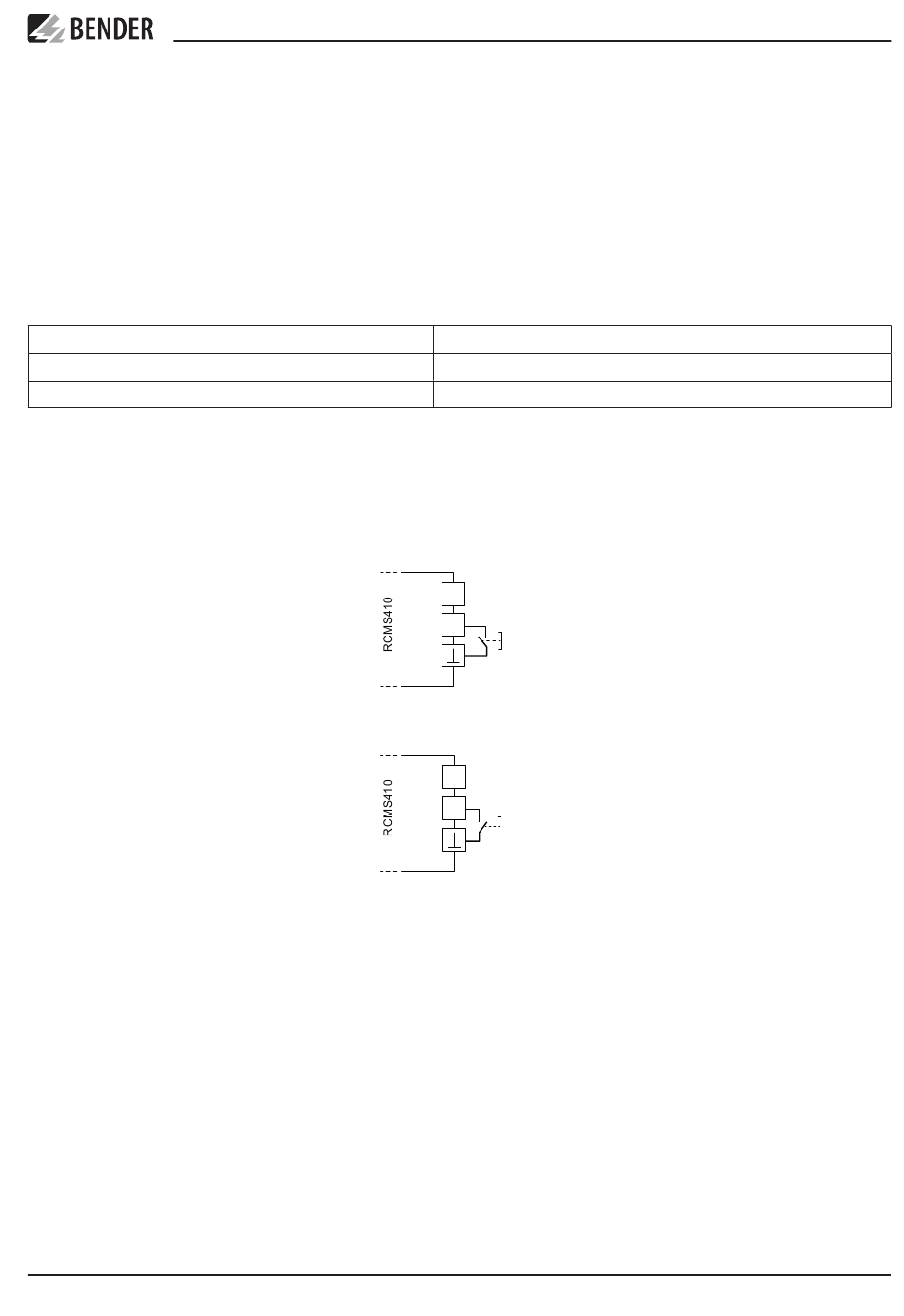

The following settings can be assigned to input I:
High-active Event is carried out, when the digital input undergoes a slope change from low to
high.
Low-active: Event is carried out, when the digital input undergoes a slope change from high to
low.
i
The response delay and the delay on release of the digital input is set to 100 ms each.
Activates the reset function
Activates the test function
No function change. A faulty switch can be detected immediately!
+
I
+
I
