Mounting and connection

Only qualified personnel are permitted to carry out the work necessary to install, com-

mission and run a device or system.

of electrocution due to electric shock! Touching live parts of the system carries the

isk

risk of:

- A fatal electric shock

- Damage to the electrical installation

- Destruction of the device

Before installing and connecting the device, make sure that the installation has been de-

energised. The rules for working on electrical systems must be observed.

3.1

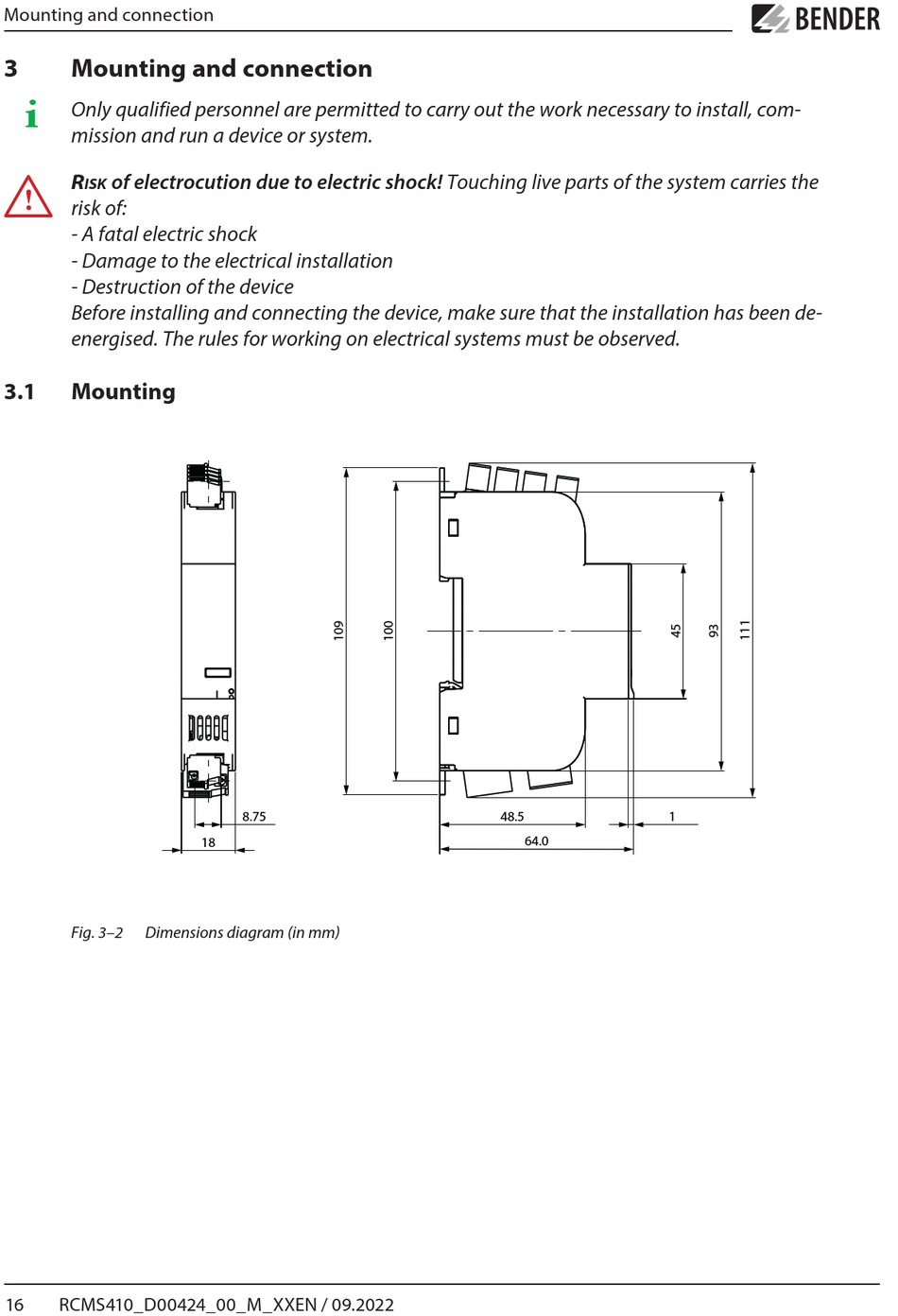

Fig. 3–2

Dimensions diagram (in mm)

RCMS410_D00424_00_M_XXEN / 09.2022

8.75

48.5

64.0
