Interfaces

A
4.1

Digital inputs and outputs (overview)

B
ON
M+
Q
I
i
During commissioning an output signal should be verified via an alternative route (e.g.
the Modbus interface or the behaviour of a different output.
When the analogue/digital outputs are used, redundant monitoring is always recom-
mended (for instance via the interface or a further output).

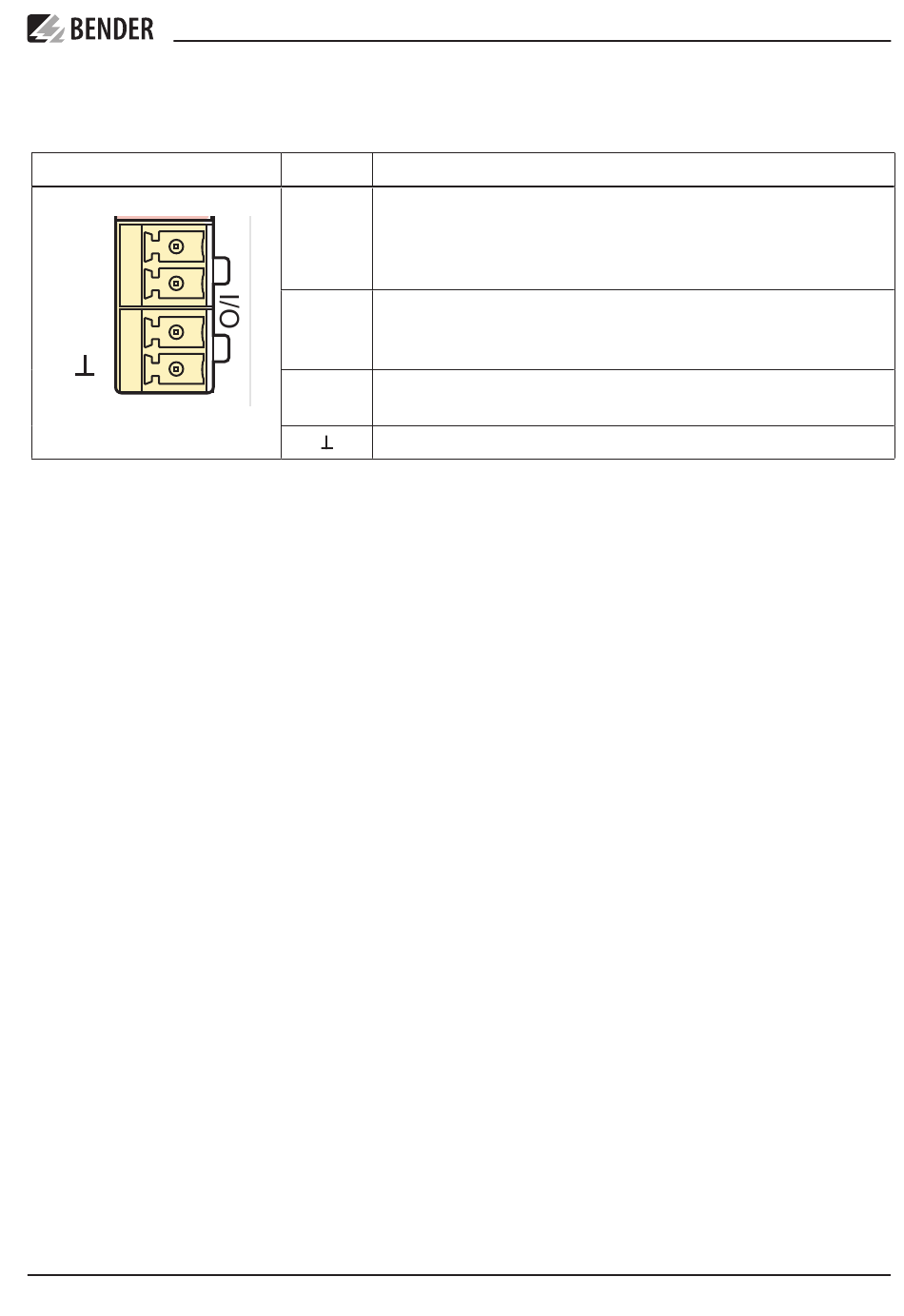

Element Explanation
Multi-functional output
• Digital output: Signalling device states
M+
• Analogue voltage or current output: For the direct connection of analogue instruments
that analyse and display measured values.
Digital input/output
• Input Performing tests and/or resets
Q
• Output Signalling device states
Digital input
I
Performing tests and/or resets, can be configured with low-active and high-active.
Earth connection
LINETRAXX® SmartDetect RCMS410
RCMS410_D00424_00_M_XXEN / 09.2022 19
