Overview

007-6465-001
Chapter 3

System Interface

There are a number of LEDs on the front control panel as well as others on the drive carriers and
power supplies to keep you constantly informed of the overall status of the system.
shows an example of the ISS C1104-GP6 front panel. The control panel LEDs provide constant
information on the system and on the overall health of major system components.
shows a closer view of the control and status panel on the server.

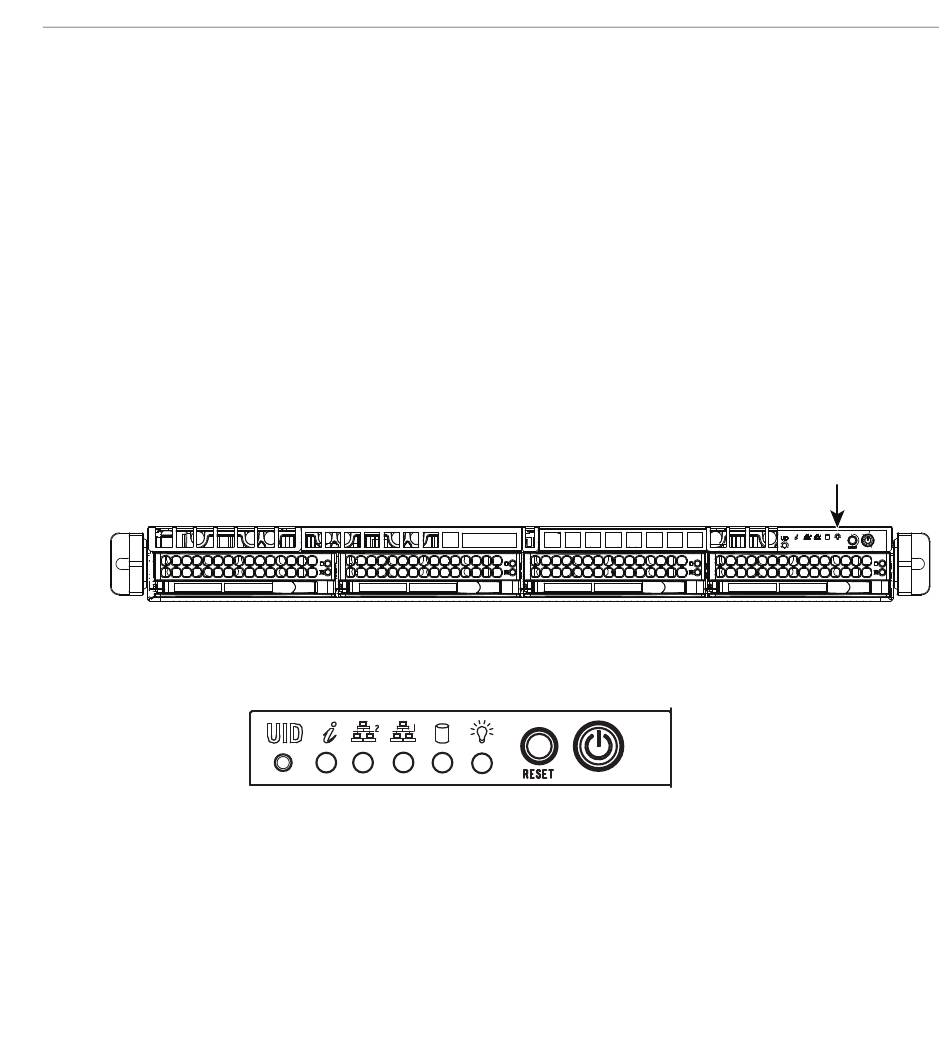

Figure 3-1 Four-Drive (ISS C1104-GP6) Server Front Panel Example
Figure 3-2
Control Panel Indicator Components Example
3.5" Disk Drives (4)
Figure 3-1
Figure 3-2
Server control/
status panel
