Silicon Graphics InfiniteStorage C1104-GP6 System User's Manual page 30

2: Server Installation
18
3. Hang the hooks of the front of the outer rail onto the slots on the front of the rack. Use
screws to secure the outer rails to the rack.
4. Pull out and adjust both the short and long brackets to the proper distance so that the rail can
fit snugly into the rack, reference
5. Hang the hooks of rear portion of the outer rail into the slots on the rear of the rack. Secure
the long bracket to the rear side of the outer rail with the screws provided.
6. Repeat the previous steps to properly install the left outer rail.

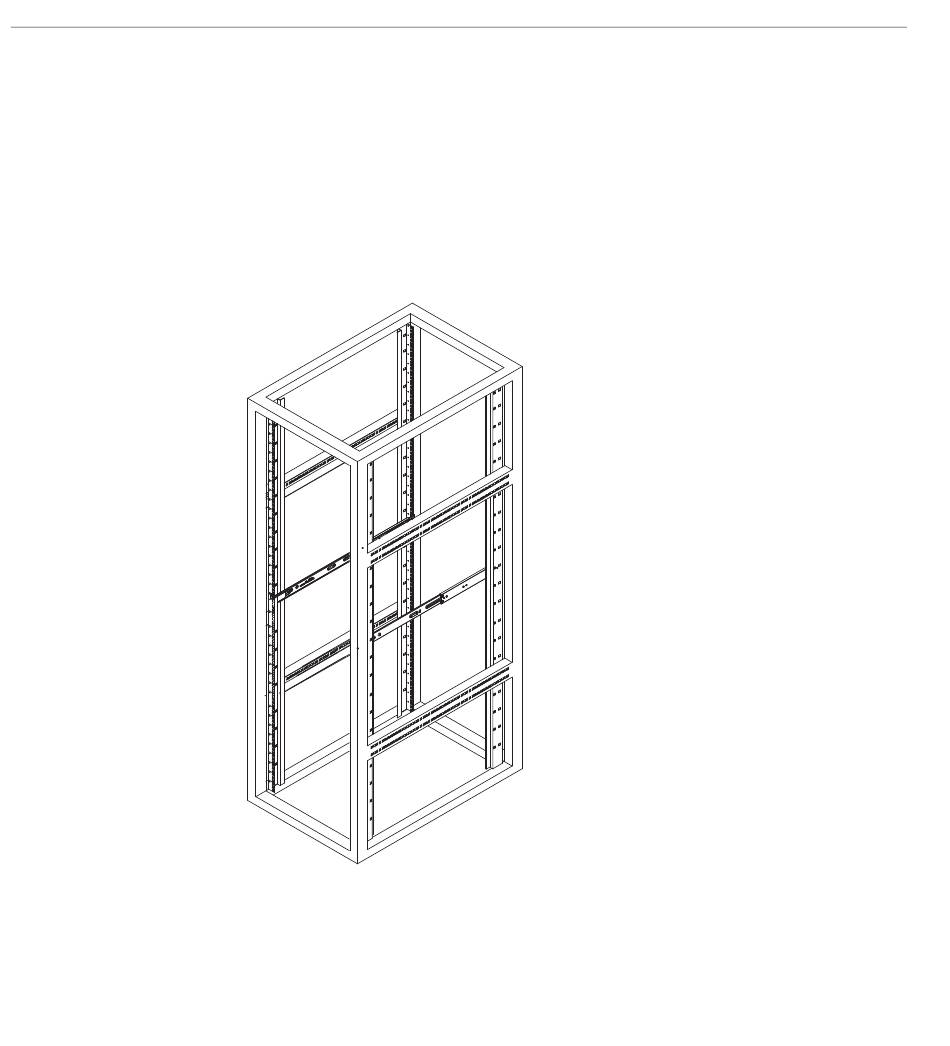

Figure 2-5 Outer Rack Rail Assembly/Placement Example
Figure 2-6 on page 20.
007-6465-001
