3.

Overview

Control Panel Buttons

007-5688-003
Chapter 3

System Interface

There are several LEDs on the control panel as well as others on the SATA drive carriers to keep
you constantly informed of the overall status of the system as well as the activity and health of
specific components. There are also two buttons on the chassis control panel.
There are two buttons located on the front of the chassis: a reset button and a power on/off button.
Use the reset button to reboot the system as shown in

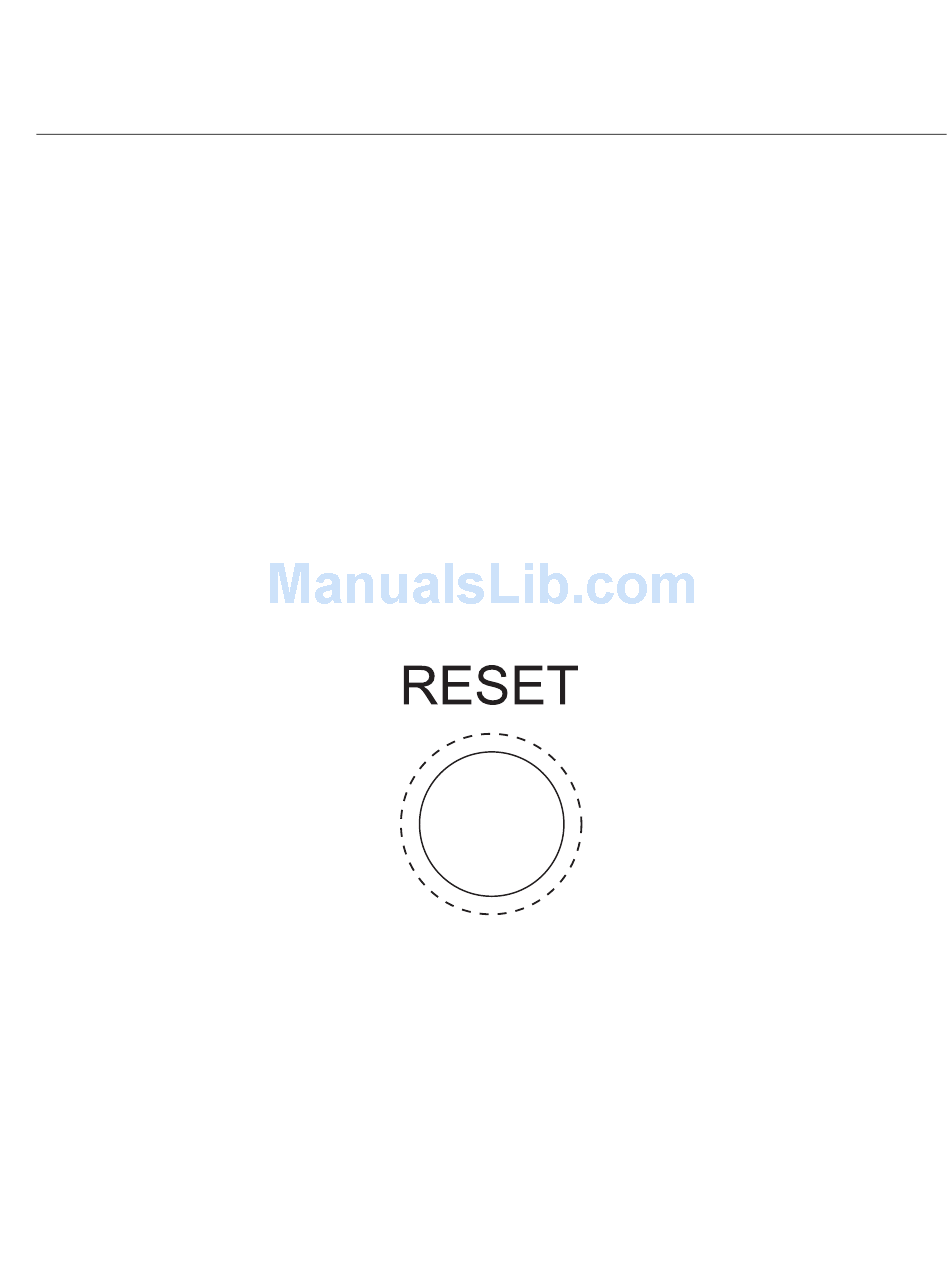

Figure 3-1 System Reset Button
Figure 3-2 shows the the main power button, which is used to apply or turn off the main system
power. Turning off system power with this button removes the main power but keeps standby
power supplied to the system.
Figure 3-1.
