System Rear I/O Ports
Serverboard Details
007-6465-001
The rear external system I/O ports are color coded in conformance with the PC 99 specification.
See
Figure 5-1
below for locations of the various I/O ports on the ISS C1104-GP6.
identifies the functions of each of the I/O ports on the backpanel.
IPMI LAN Port
Power Supplies (2)
COM Port
USB Ports 0, 1 (2.0)

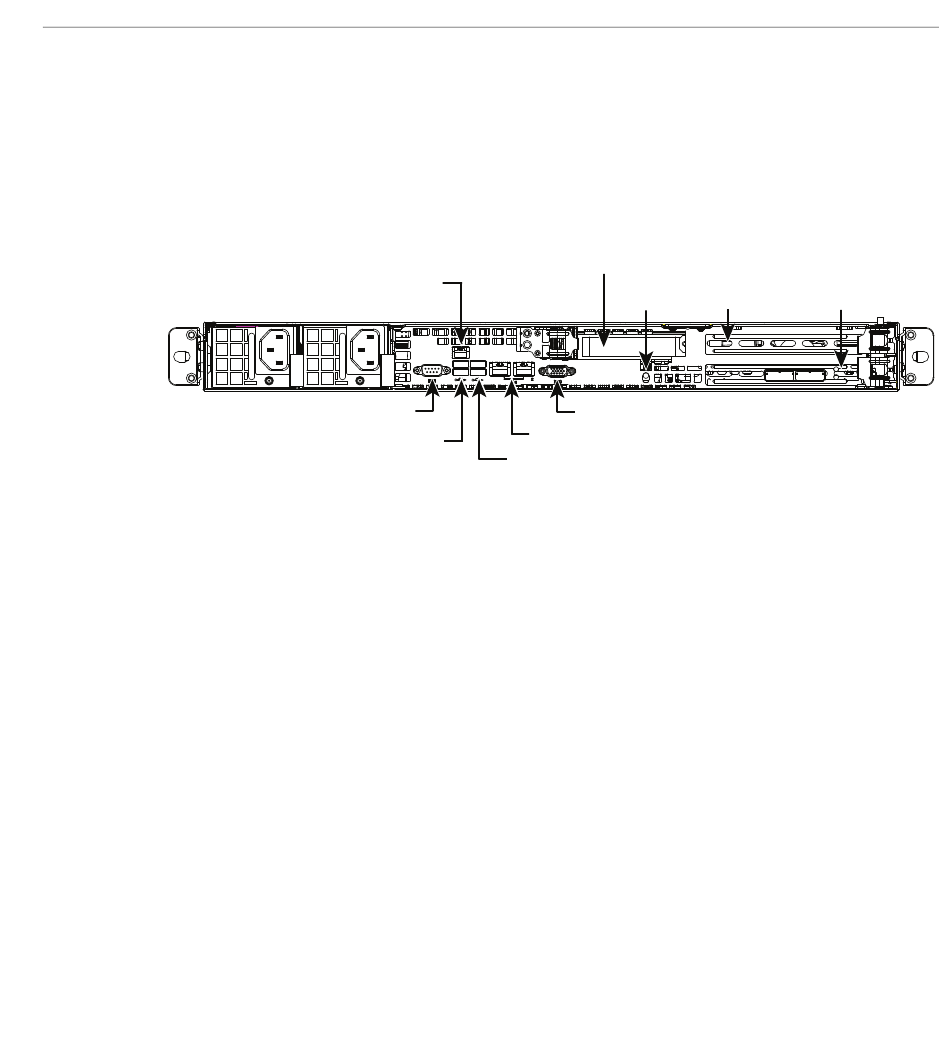

Figure 5-1
I/O Port Locations Example
Table 5-1
System Backpanel I/O Port Functions (Left-to-Right)
COM port (Serial)
Dedicated RJ-45 IPMI LAN port
USB 2.0 ports 0 and 1
USB 3.0 ports 2 and 3
RJ-45 Ethernet (LAN) ports 1 and 2
System VGA port
UID switch/LED
The 1U ISS C1104-GP6 chassis has one node board. The ISS C1104-GP6 serverboard is always
configured with one processor. See
serverboard. Note that the drawing is not to scale.
Low-profile x8 PCIe (3.0) slot
UID
VGA Port
Ethernet LAN Ports (2)
USB Ports 2, 3 (3.0)
Figure 5-2 on page 38
for the CPU location on the
System Rear I/O Ports
Table 5-1
Full-height x16 PCIe (3.0) slots
35
