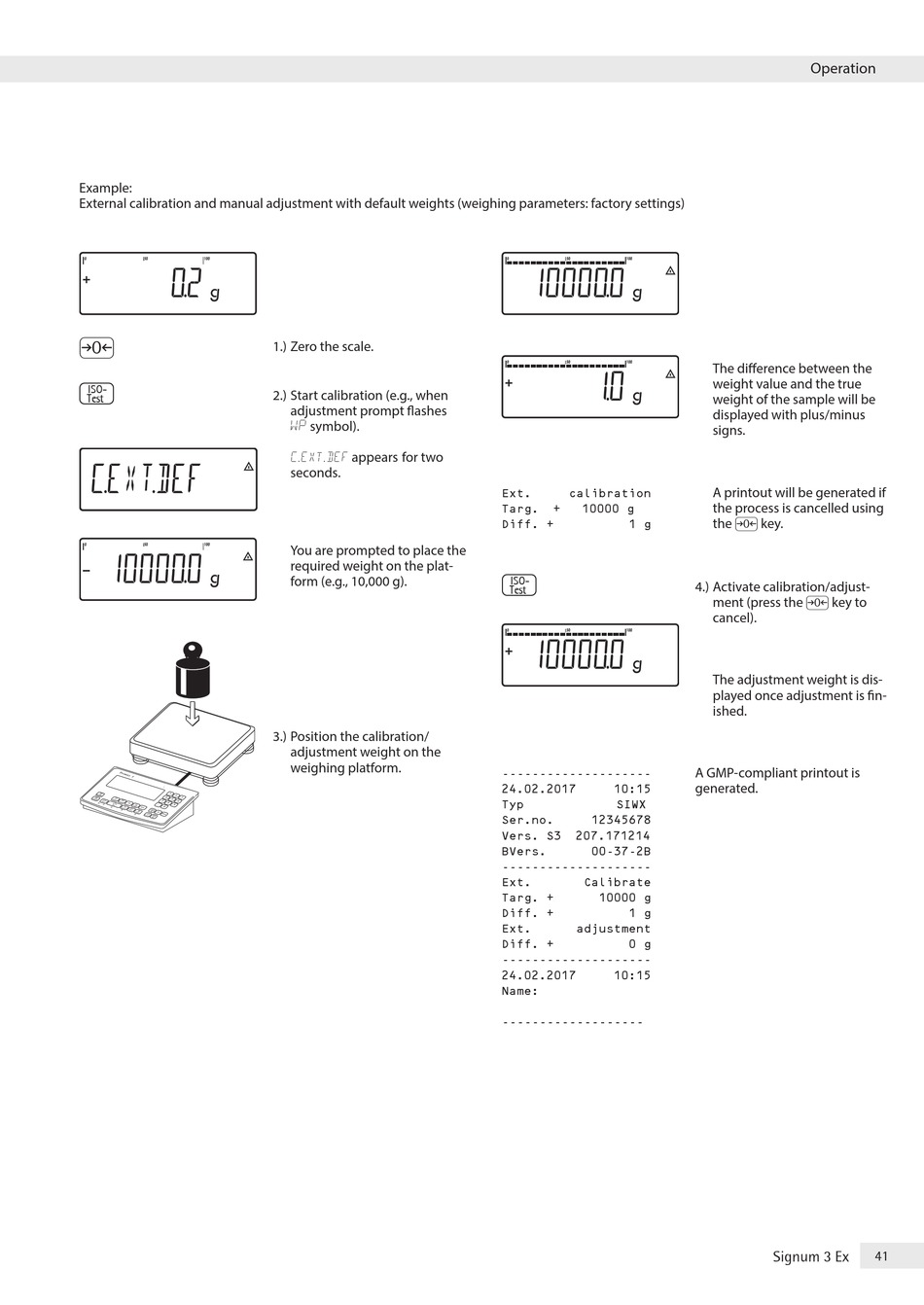

Example:
External calibration and manual adjustment with default weights (weighing parameters: factory settings)
(
J
1�) Zero the scale�
2�) Start calibration (e�g�, when
adjustment prompt flashes
symbol)�
WP
c.ext.def appears for two
seconds�
You are prompted to place the
required weight on the plat-
form (e�g�, 10,000 g)�
3�) Position the calibration/
adjustment weight on the
weighing platform�
Ext. calibration
Targ. + 10000 g
Diff. + 1 g
J
--------------------
24.02.2017 10:15
Typ SIWX
Ser.no. 12345678
Vers. S3 207.171214
BVers. 00-37-2B
--------------------
Ext. Calibrate
Targ. + 10000 g
Diff. + 1 g
Ext. adjustment
Diff. + 0 g
--------------------
24.02.2017 10:15
Name:
-------------------
Operation
The difference between the
weight value and the true
weight of the sample will be
displayed with plus/minus
signs�
A printout will be generated if
the process is cancelled using
the ( key�
4�) Activate calibration/adjust-
ment (press the ( key to
cancel)�
The adjustment weight is dis-
played once adjustment is fin-
ished�
A GMP-compliant printout is
generated�
